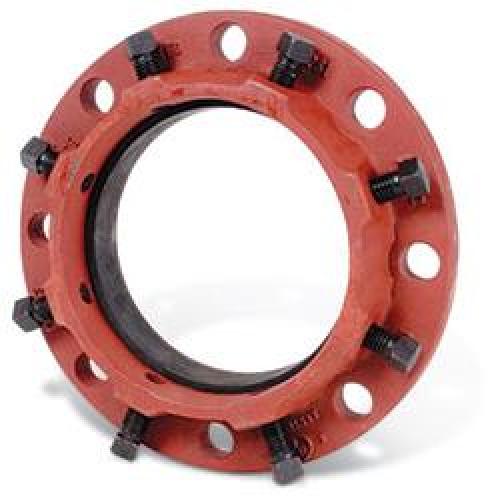

Star Pipe Products SF404G Adapter Flange DI/IPS 4in

Product Description

The STAR PIPE PRODUCTS SF404G adapter flange is designed for use on PC350 ductile iron and SCH40 steel pipe. Sizes 3"-12" are Underwriters Laboratories Inc. Listed at 200 PSI for 3"-8" sizes and 175 PSI for 10"-12" sizes. It is ideal for jobs involving retro-fitting and can be easily disassembled if future maintenance is required.

• Bolt hole drilling is to ANSI B16.1 class 125.
• Uses standard mechanical joint gasket for seal on DI Pipe and Transition Gasket on steel pipe.
• Pipe fabrication can be done on site, using plain end pipe.

Product Highlights

This ductile iron adapter flange is suitable for above or below ground applications and can be used on Ductile Iron (3"-36") and Steel (3"-12") Pipe.

Product Information

Standard Information

• Brand: STAR PIPE PRODUCTS
• Manufacturer Part Number: SF404G

Technical Specifications

• Brand: Star Pipe Products
• Size: 4in
• Material: Ductile Iron
• Number of Set Screws: 4
• Bolt Size: 3/4in
• Type of Pipe: Ductile Iron
• Maximum Operating Pressure (psi): 200psi
• Part Number: SF404G
