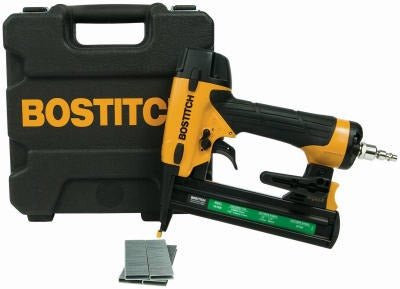

Stanley Bostitch SX1838K 18 Gauge Finish Stapler Kit

Product Description

The STANLEY BOSTITCH SX1838K is an 18-gauge pneumatic finish stapler kit designed for trim, cabinetry, and light framing applications. It drives SX5035 Series staples ranging from 1/2 inch to 1-1/2 inches in length, giving installers a wide range of fastening options without switching tools. The oil-free motor eliminates the need for regular lubrication, reducing maintenance time on the job. A dial-a-depth control lets the operator set consistent drive depth for different substrates. The rear exhaust is engineered to minimize noise at the workstation, keeping the tool suitable for occupied spaces.

This stapler kit is built for finish carpenters, cabinetmakers, trim installers, and general contractors working on residential and light commercial projects. The selectable trigger system allows switching between single sequential and contact actuation modes to match the task. A low-nail lockout prevents dry firing, protecting both the workpiece and the tool. The belt hook keeps the stapler accessible when moving between work areas. The kit ships ready to work, including a 1/4-inch swivel air fitting, 1,000 count 1-inch finish staples, and a carrying case for storage and transport.

Key Features

• Drives 18-gauge SX5035 Series staples from 1/2 inch to 1-1/2 inches
• Oil-free operation — no lubrication required
• Selectable trigger system: sequential or contact actuation
• Dial-a-depth control for consistent drive depth across substrates
• Ultra-quiet rear exhaust for noise-sensitive environments
• Low-nail lockout prevents dry firing
• Kit includes stapler, 1/4-inch swivel air fitting, 1,000 finish staples, and carrying case

Compatibility

Designed to drive 18-gauge SX5035 Series staples from 1/2 inch to 1-1/2 inches. Requires a standard compressed air supply with a 1/4-inch fitting connection.

Installation Notes

Connection and operation should be performed by qualified finish carpenters or pneumatic tool users familiar with air-powered fastening equipment. Disconnect the air supply before clearing jams, changing staples, or making any adjustments to the tool. Verify the air supply pressure is within the range specified on the tool body before connecting. Always wear appropriate eye protection when operating pneumatic nailers and staplers.
