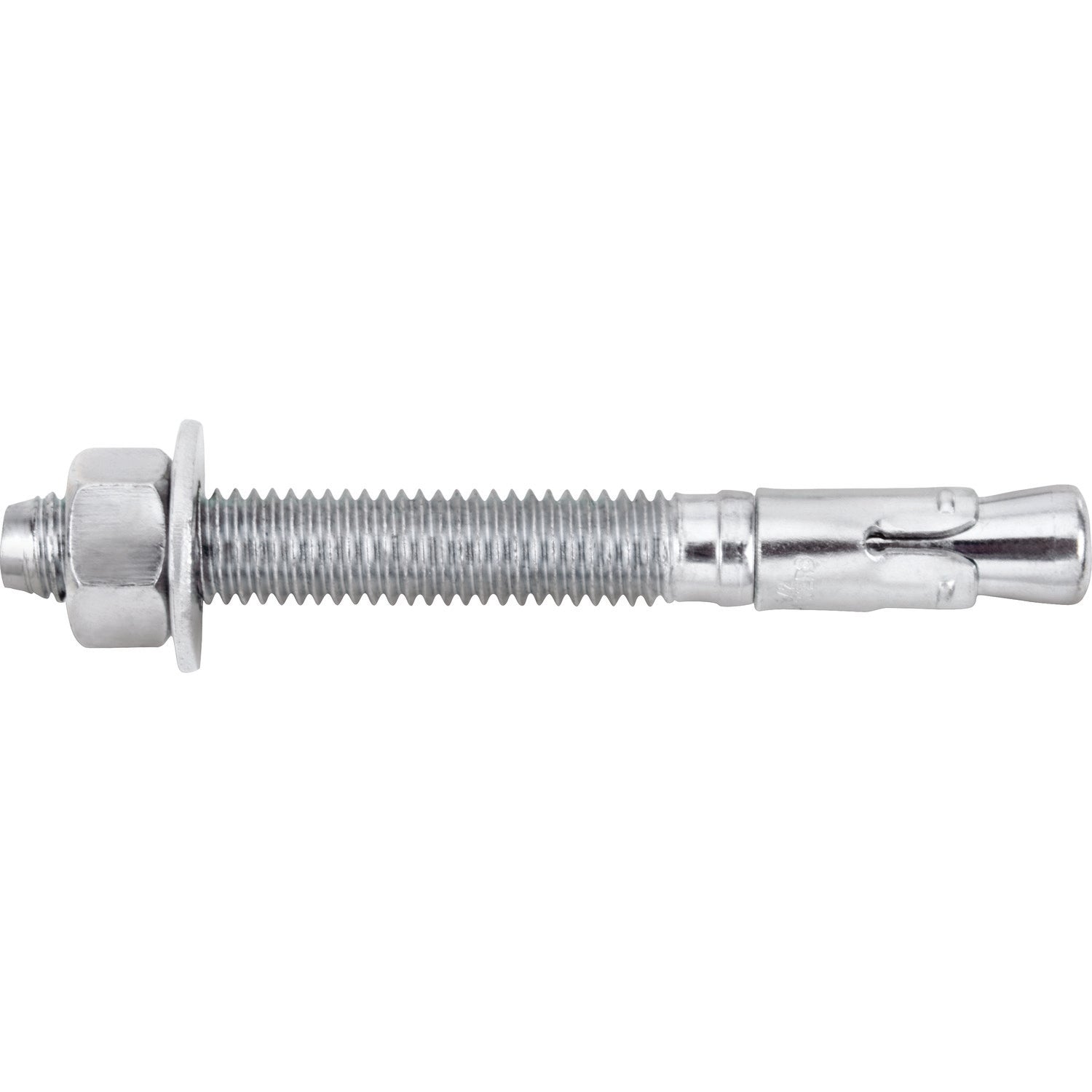

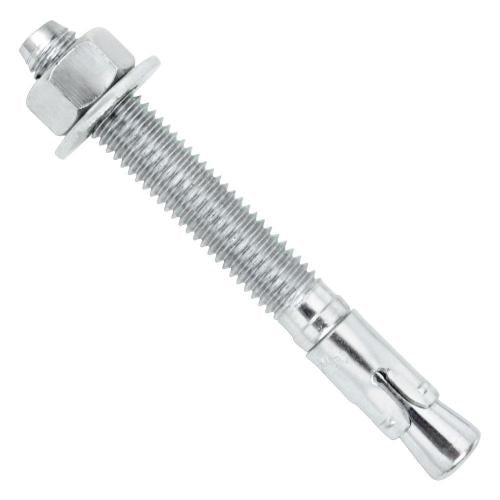

STANLEY BLACK & DECKER DEWALT 7400SD1-PWR Power-Stud+ SD1 Wedge Expansion Anchor

Product Description

The STANLEY BLACK & DECKER DEWALT 7400SD1-PWR is a wedge expansion anchor designed for secure fastening in concrete and masonry. This anchor features a fully threaded, torque-controlled design for reliable performance.

• Constructed with zinc-plated carbon steel
• Suitable for cracked and uncracked concrete
• Includes nut and washer for installation

Product Highlights

This anchor provides consistent strength and stability in various concrete applications. It can be installed through standard fixture holes.

Product Information

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: 7400SD1-PWR

Technical Specifications

• Material: Carbon steel
• Finish: Zinc plated
• Anchor Size: 1/4 x 1-3/4 inches
• Diameter: 1/4 inches
• Length: 1-3/4 inches
• Thread Size: 1/4-20
• Thread Type: UNC
• Thread Length: 3/4 inches
• Usable Length: 1-3/4 inches
• Head Type: Threaded stud
• Tensile Strength: 1600 lb
• Shear Strength: 1255 lb
• Maximum Work Thickness: 3/8 inches
• Minimum Embedment Depth: 1-1/8 inches
• Package Quantity: 100/Each
• Standard Approvals: ASTM E488, UL Listed
