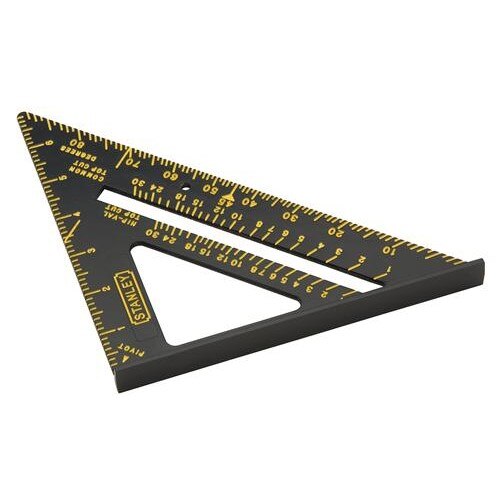

Stanley 46-071 Quick Square Layout Tool

Product Description

The STANLEY 46-071 is a quick square layout tool designed for accurate angle measurement and straight-line marking in field and shop applications. It functions as a saw guide, protractor, and layout aid, making it a compact multi-use instrument for carpenters, framers, and general tradespeople. Weighing 0.31 pounds, the tool is lightweight enough for everyday carry on the job site. A detailed instruction book is included, covering common use cases and angle-reading techniques for users who want to get the most out of the tool quickly.

The STANLEY 46-071 is suited for residential and light commercial construction tasks where repeatable angle cuts and layout marks are required. Typical applications include rafter layout, stair stringers, decking, and general framing work. It is also useful as a crosscut guide for handsaws and circular saws, providing a stable reference edge for short cuts. Tradespeople who routinely need a fast square check or need to transfer specific angles will find this tool fits naturally into standard framing workflows.

Key Features

• Functions as a saw guide, protractor, and layout square in one compact tool
• Suitable for special angle measurements and square checks
• Lightweight at 0.31 pounds for easy tool-belt carry
• Includes a detailed instruction book for angle-reading and layout techniques
• Sold individually (UOM: Each)

Compatibility

Designed as a general-purpose layout square for use in framing, carpentry, and woodworking applications where angle measurement and saw guiding are required.

Installation Notes

No power source or wiring is required for this hand tool. Keep the reference edges clean and free of debris to maintain accurate readings. When using as a saw guide, ensure the tool is held firmly against the workpiece edge before committing to a cut. Inspect the square periodically against a known reference to confirm it has not been bent or damaged.

Technical Specifications

• Weight: 0.31 pounds
• UPC: 076174460711
• Unit of Measure: Each
• Minimum Order Quantity: 6

Standard Information

• Brand: STANLEY
• Manufacturer Part Number: 46-071
