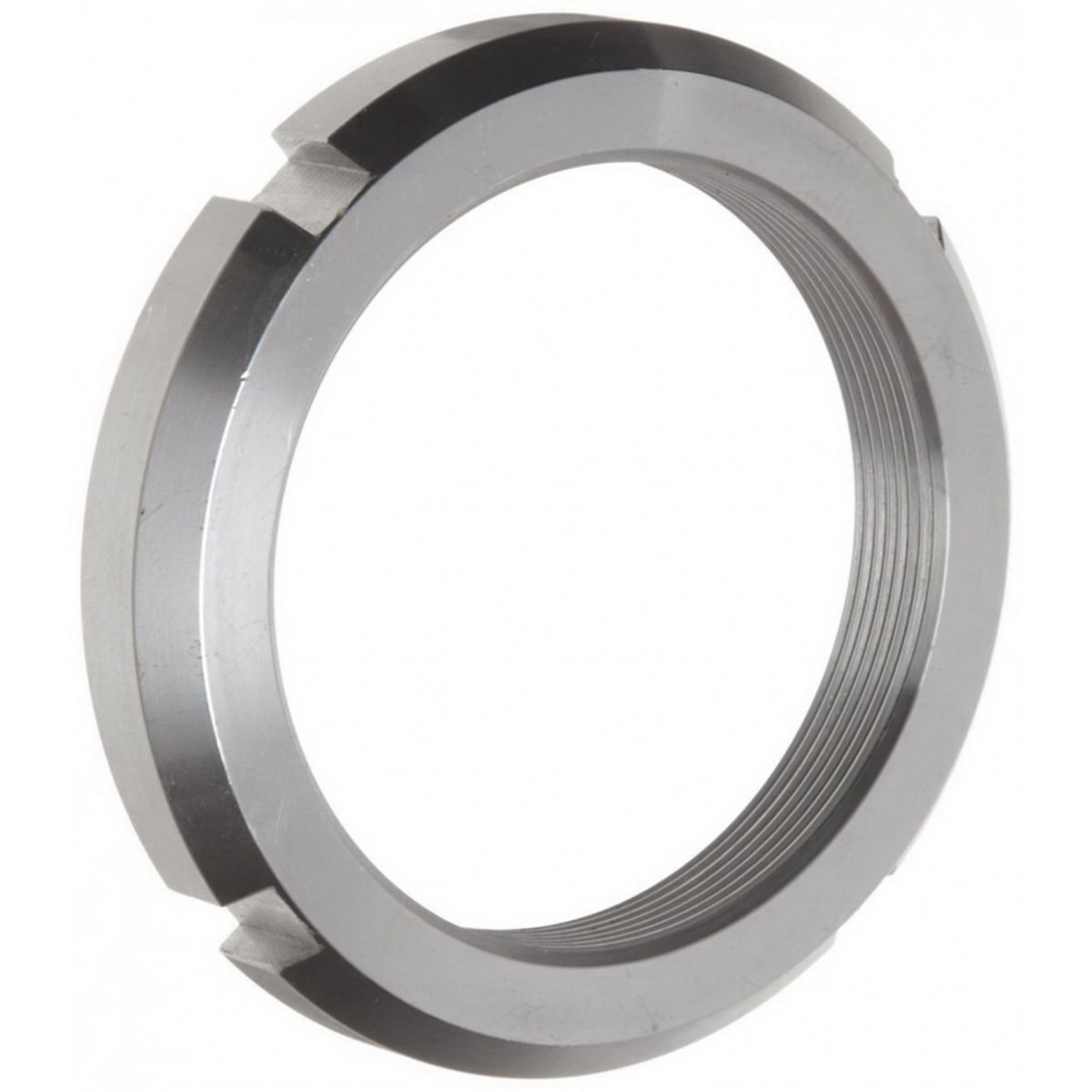

Standard Locknut AN19 - Lock Nut, 4-15/16 OD, 0.166 Slot, Steel

Product Description

The Standard Locknut AN Series Lock Nut, MPN AN19, is designed for reliable locking of bearings onto shafts and adapter sleeves. This locknut measures three and five hundred sixty-three thousandths inches in diameter and features four even slots for easy tightening. It is made of steel, ensuring strength and durability.

• Locks bearings securely onto shafts
• Made from durable steel for reliability
• Right-handed with twelve threads per inch

Product Highlights

This locknut is ideal for applications requiring secure locking of bearings. Its robust design includes precise slot dimensions for efficient use with compatible tools.

Product Information

Standard Information

• Part Number: AN19LOCKNUT
• Brand: Standard Locknut

Technical Specifications

• Bearing Face Diameter: 4.563 inches
• Outside Diameter: 4.9375 inches
• Bore Diameter: 95 mm
• Face Runout: 0.004 inches
• Slot Depth: 0.166 inches
• Slot Width: 0.36 inches
• Thread Size: 3.73 inches
• For Use With: For W19 Lockwasher
• Standards: DIN 981, ISO 2 982-2 Certified
