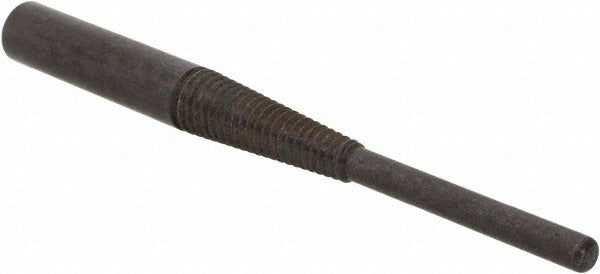

Standard Abrasives 7000121790 Cartridge Roll Mandrel

Product Description

The STANDARD ABRASIVES 7000121790 is a cartridge roll mandrel designed to mount and drive abrasive cartridge rolls in rotary tools, die grinders, and drill chucks. The mandrel features a 0.125-inch pilot diameter with a 1-inch pilot length, accepting standard cartridge rolls onto the tapered or straight pilot for secure holding during grinding, blending, and deburring operations. The 0.25-inch shank diameter and 1.25-inch shank length allow direct chuck mounting in air-powered or electric rotary tools. Overall length is 2.75 inches. The shank is constructed from steel for rigidity under load. Metalworkers, machinists, fabricators, and maintenance technicians install this type of mandrel when finishing bores, ports, slots, and contoured surfaces.

Cartridge roll mandrels are used in metal fabrication shops, weld finishing operations, and maintenance repair environments. They are suited for working inside tubes, ports, castings, and other confined areas where flat or disc abrasives cannot reach. This mandrel accepts cartridge rolls slid onto the pilot and compressed into place by rotating the roll to tighten. It is appropriate for both bench and handheld rotary tool applications across light industrial and job shop settings.

Key Features

• 0.125-inch pilot diameter accommodates standard small-bore cartridge rolls
• 1-inch pilot length provides sufficient surface contact for roll retention
• 0.25-inch shank diameter fits standard die grinder and drill collets
• Steel shank construction resists bending and wear under rotary load
• 2.75-inch overall length suits confined-area grinding applications

Compatibility

Designed as an OEM-style replacement mandrel for use with standard cartridge rolls requiring a 0.125-inch pilot diameter in die grinders and rotary tools with a 0.25-inch collet or chuck.

Installation Notes

Installation is performed by machinists or metalworking technicians using a standard die grinder or rotary tool. Power off and disconnect the tool from the air supply or electrical source before installing or removing the mandrel. Slide the cartridge roll onto the pilot and rotate the roll in the tightening direction to secure it before operating. Follow the tool and abrasive manufacturer guidelines for maximum RPM to avoid abrasive breakage or mandrel failure.
