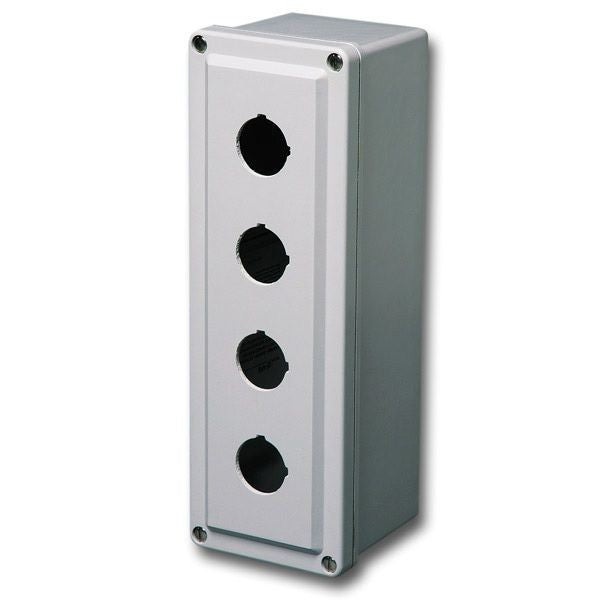

Stahlin CF3PB Pushbutton Enclosure 8 x 4 x 4 Inches

Product Description

The STAHLIN CF3PB pushbutton enclosure is designed for general-purpose electrical and electronic applications and control stations. It is easily adaptable for most common pushbuttons and indicator lights in both indoor and outdoor environments. The enclosure features a NEMA 1/3R/4X/6P/12 rating and is constructed from hot compression molded fiberglass reinforced thermoset polyester.

• Watertight and dusttight construction
• Fiberglass reinforced thermoset polyester material
• Designed for 30mm operator components

Product Highlights

This Stahlin pushbutton enclosure is ideal for electrical and electronic applications requiring environmental protection. It features a fiberglass construction and a watertight, dusttight design.

Product Information

Standard Information

• Brand: STAHLIN
• Manufacturer Part Number: CF3PB
• Country of Origin: USA

Technical Specifications

• Height: 8-7/8 Inch
• Width: 4 in
• Depth: 4 in
• Number of Device Holes: 3
• Device Hole Location: 1-Row Vertical
• Device Hole Size: 1.21 Inch Dia
• Material: Hot Compression Molded Fiberglass Reinforced Thermoset Polyester
• Enclosure: NEMA 1/3R/4X/6P/12
• Mounting: Panel
• Service Type: Indoor/Outdoor
• External Hardware Material: 300 Stainless Steel
• Constructional Feature: Watertight, Dusttight
• Cover Type: (4) Screw-On, Polyurethane Gasketed, Lift Off
• Approval: UL 50, CSA C22.2, CUL 50
• Type: Electrical and Instrument Enclosures
• Finish: Smooth
• Standard: UL/cUL/CSA -N- IEC
• IP Rating: IP66; IP67; IP68
• Application: The PushButton Series was designed for general-purpose electrical and electronic
• Manufacturer: Stahlin
• Product Depth: 4 IN
• Product Width: 4 IN
• Product Height: 8 IN
• Special Features: 3 pushbuttons
• Enclosure Width: 4 in
• Enclosure Height: 8 in
• Enclosure Depth: 4 in
• Mount: Screw
• Gasket: Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal
• Cover Screws: Recessed captive stainless steel screws
• Stainless Steel Hardware: 300 Series stainless used on all external hardware
• Enclosure Mounting: Mounting wells located under the cover, outside gasket area
• Soft Edge Design: Rounded edges, minimal protrusions or exposed pocket areas for assembly of dust and debris
• NEMA 250, UL Listed UL50,UL50e,UL508A: File E64358, Type 1, 3R, 4X, 6P, 12
• CSA Std C22.2: File LR069014, Type 1, 3R, 4X, 6P, 12
• IEC60529: UL File E362920, IP 66, IP67,IP68
• Plenum Space (UL2043) Compliant: Yes
• Temperature Range: (-76°F to +274°F) (-60°C to +134°C)
• Flammability Rating: UL94-SV
• Impact Rating: IK10
• Self Extinguishing: Non-flame propagating
• Chemical Resistance: Full chemical resistance charts listed in appendix
• NFPA No. 101 Flame Spread: Class A (1)
• Outdoor Exposure UL746C: (f1) Rated
• Part Number #: CF3PB
• Series: CF Series
• Temperature Rating (Degrees F): 76 to 274, 76 to 274 deg F
• NEMA Rating: 1/3R/4X/6P/12
• Length: 8 in
• Cover: Lift-Off Screw Cover
• Outlets: 3
• Mounting Type: Foot Mounting
• Brand: Stahlin
• H (in): 8
• W (in): 4
• D (in): 4
• H (mm): 203.2
• W (mm): 101.6
• D (mm): 101.6
• Manufacturer Part Number: CF3PB
• Product Series: Pushbutton
• Family Series: Stahlin Enclosures, Pushbutton Series
• Description: Pushbutton Enclosure, 3-Hole, 30mm, Fiberglass, Lift-Off Screw Cover, N3R/4X/6P/12
• Composition: Non-Metallic
• Hole Size: 30 mm
• Cover Design: Lift-Off Cover
• Nominal Height: 9 "
• Nominal Width: 4 "
• Nominal Depth: 4 "
• Latching Mechanism: Screws
• Approvals: CSA, UL
• Temperature Rating: 76 to 274 deg F
• Color: Glacier Gray
