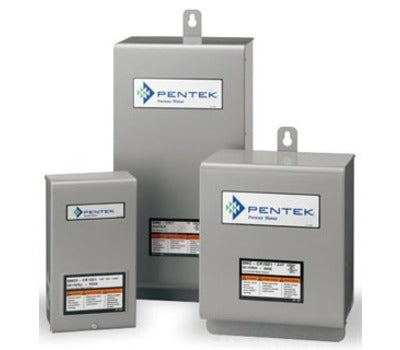

STA-RITE SMC-CR5021 Pentek 230V 5 HP Capacitor Start/Capacitor Run Control Box

Product Description

The STA-RITE SMC-CR5021 is a capacitor start/capacitor run control box designed for use with a variety of pumps. It operates on 230 volts and supports motors up to five horsepower. This model is intended for both commercial and residential applications.

• Rugged NEMA 3R enclosure suitable for indoor and outdoor use
• HardBond finish offers high corrosion resistance
• Multiple size electrical knockouts

Product Highlights

This control box features a high load voltage relay and heavy-duty contacts, ensuring reliable operation. It also provides external access to reset overloads, enhancing usability in various settings.

Product Information

Standard Information

• Model Number: SMC-CR5021
• Product Type: CSCR Control Box

Technical Specifications

• HP Rating: 5 HP
• Voltage Rating: 230 V
• Phase: 1
• Wattage: 3.7 kW
• Frequency Rating: 60 Hz
• Height: 10.25 inches
• Width: 7.75 inches
• Length: 5.5 inches
• Weight: 7 lb.
• Specifications Met: UL 778 and cUL Listed
• For Use With: 3-Wire Submersible Pump/Motors
