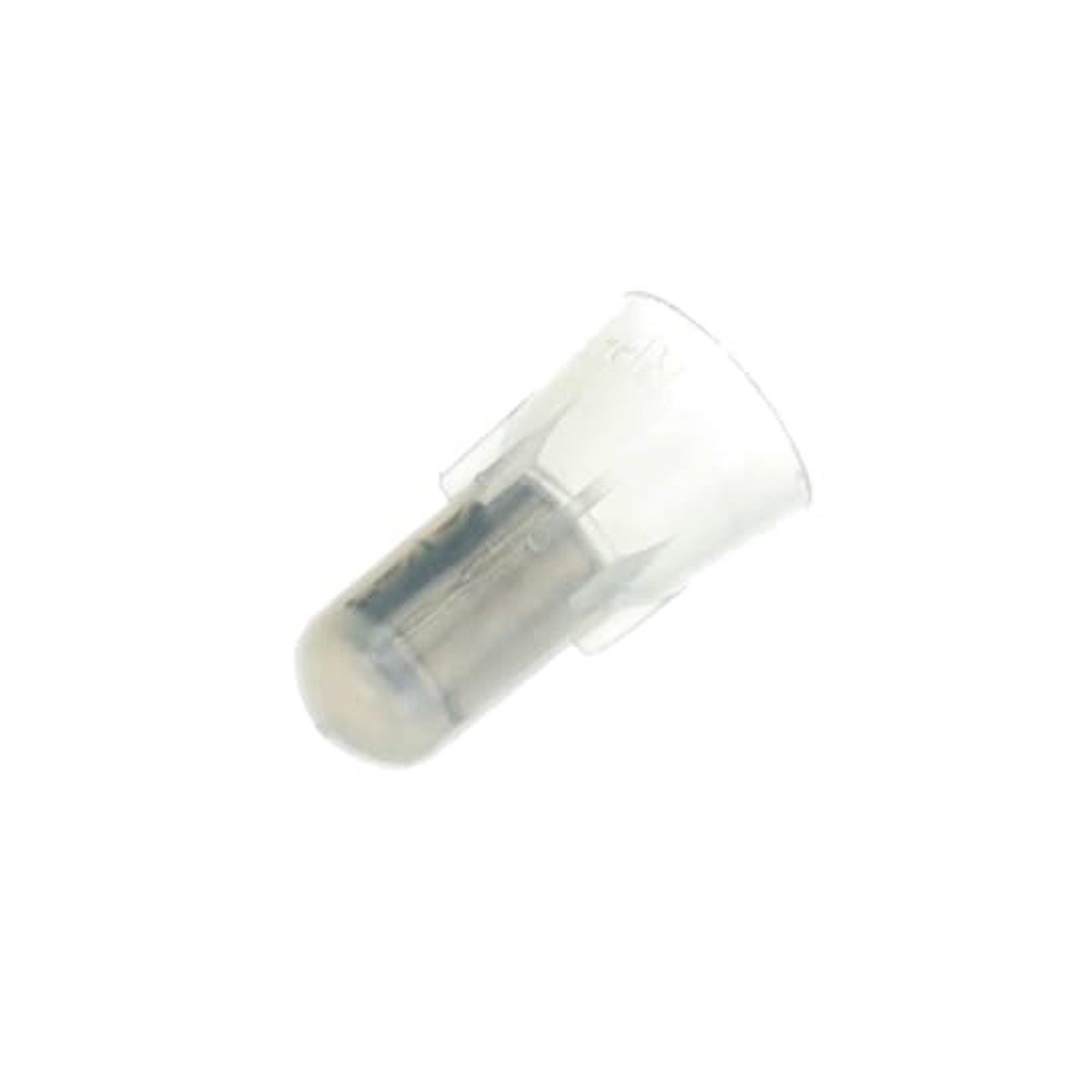

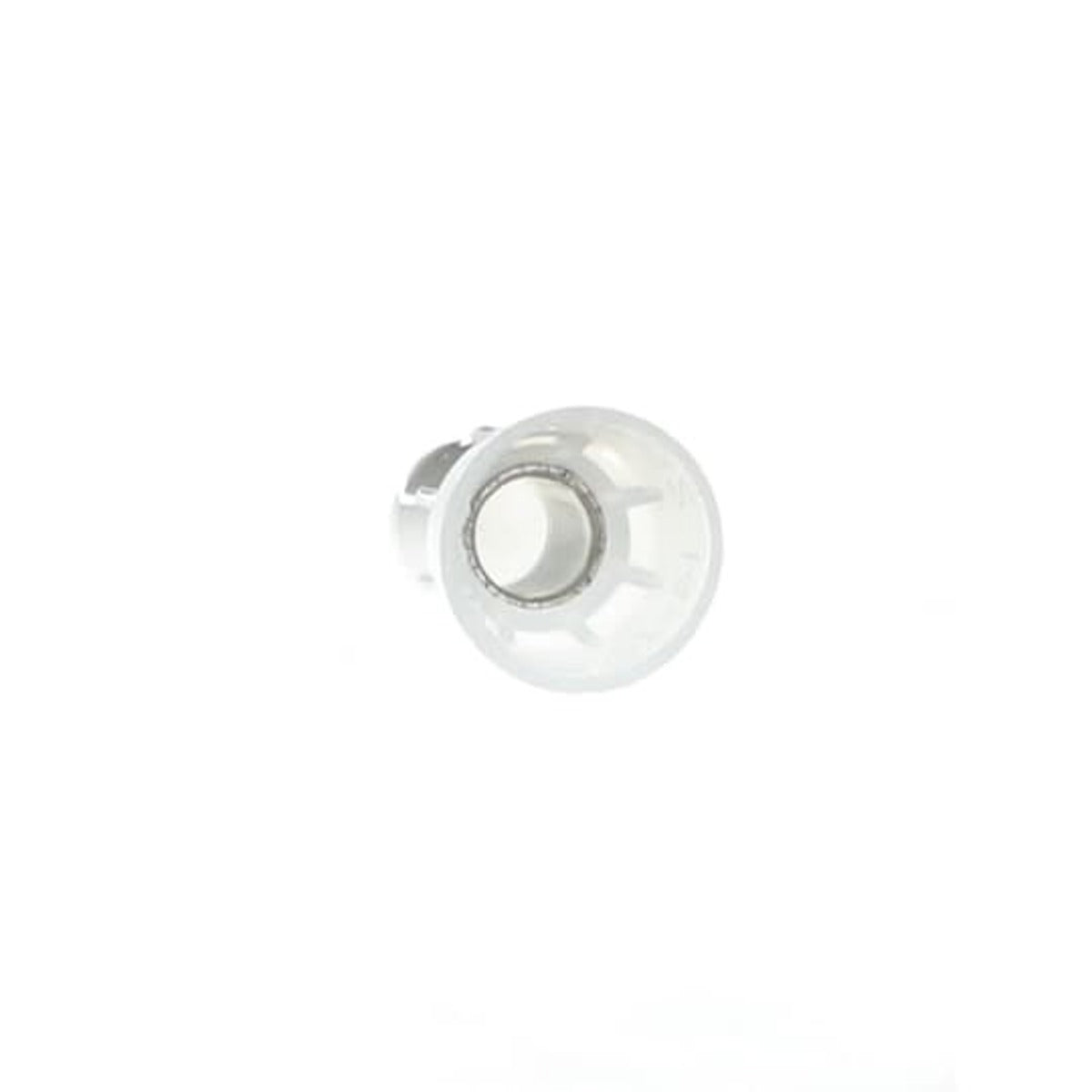

Sta-Kon RP7 Nylon Insulated Crimp-On Wire Joint 1,000 Pack

Product Description

The STA-KON RP7 nylon insulated crimp-on wire joint provides a terminating point for a group of wires running in one direction. Designed for copper wires, it accommodates wire sizes 14 AWG and 12 AWG, with a minimum wire combination size of (3) #14 and a maximum of (4) #12. It has a voltage rating of 600 V, or 1000 V for fixture and sign applications.

• Crimp-On Wire Joint
• Insulated
• Copper Wire

Product Highlights

Nylon insulated crimp-on wire joint connector with 1-piece design and application tool WT2130A.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: RP7
• Country of Origin: United States

Technical Specifications

• Catalog Number: RP7
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: United States
• Made in USA: Yes
• Application: Provides terminating point for a group of wires running in one direction
• Color: White
• Conductor Range: 3(#14)-4(#12)
• Material: Insulated Nylon
• Standard: UL E9809
• UPC: 786210821665
• GTIN: 00786210821665
• Item Type: Nylon Insulated Wire Joint
• Cross Reference Products: ABBInstall RP7|Panduit JN314-412-M|ThomasBett RP7
• Type: Insulated
• Voltage Rating: 600 V, 1000 V (Fixture, Sign)
• Wire Type: Copper
• Wire Size: 14 AWG, 12 AWG
• Minimum Wire Combination Size: (3) #14
• Maximum Wire Combination Size: (4) #12
• Insulation Material: Nylon
• Temperature Rating: 105 Deg C
• Approval: UL, CSA
• Application Tools: WT2130A
• Category: Cable joint
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Voltage: 600 V AC
• Wire Gauge: 14 to 12 AWG Wire
• Length: 1 in
• Base Dimensions: 0.53 in Dia
• Series: RP Series
