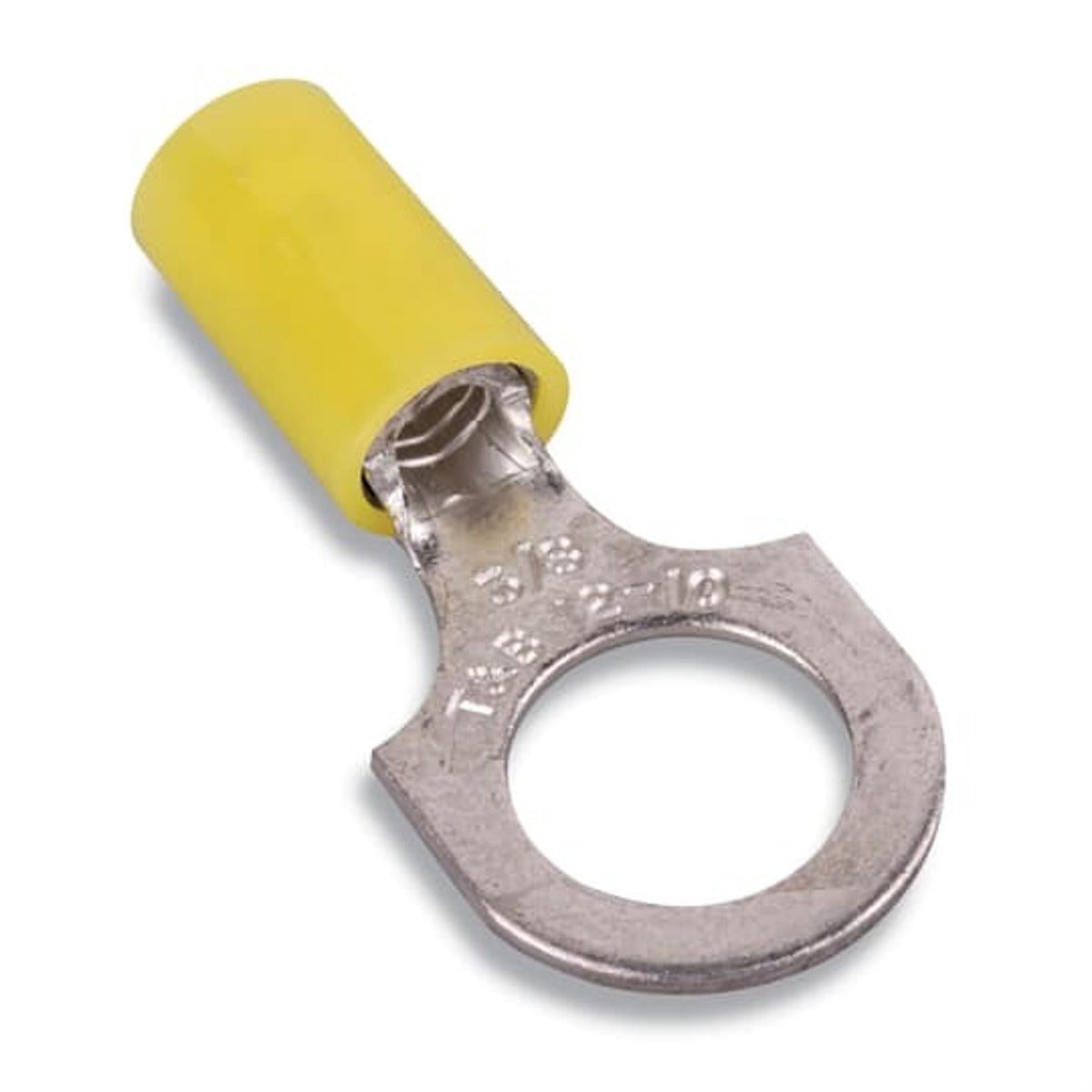

Sta-Kon RC363 Nylon Insulated Ring Terminal 500 Pack

Product Description

The STA-KON RC363 is a nylon insulated ring terminal. It accommodates wire sizes from #12-#10 AWG and features self-insulation with high dielectric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. This ring terminal is made of copper with tin plating.

• Self-insulated with high dieletric-strength nylon sleeves
• An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
• UL E9809

Product Highlights

Nylon insulated ring terminal with inner bronze insulation grip sleeve. Suitable for #12-#10 AWG wire.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: RC363
• Country of Origin: United States

Technical Specifications

• Catalog Number: RC363
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: United States
• Made in USA: Yes
• Color: Yellow
• Material: Copper
• Special Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
• Standard: UL E9809
• UPC: 786210819822
• GTIN: 00786210819822
• Item Type: Nylon Insulated Ring Terminal
• Voltage Rating: 600 V
• Wire Size: 12-10 AWG
• Type: Standard
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Insulation Type: Nylon Insulated
• Stud Size: #10
• Temperature Rating: 105 Deg C
• Finish: Electro Tin Plated
• RoHS: RoHS3 Compliant
• REACH: REACH 240 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001052 Solderless copper terminals for copper conductors
• Flange shape: Ring shape
• Insulation: PA
• Colour insulation: Yellow
• Reel packaging: N
• AWG-range: 12-10
• Surface protection: Tinned
• Stud size (imperial): 10
• ECCN: EAR99
• UNSPSC: 39121432
• Insulation Material: Nylon
• Rated Voltage: 600V
• Series: RC Series
• Barrel Type: Insulation Grip Sleeve
• Conductor Size: 12 to 10 AWG
• Tongue Type: Ring
