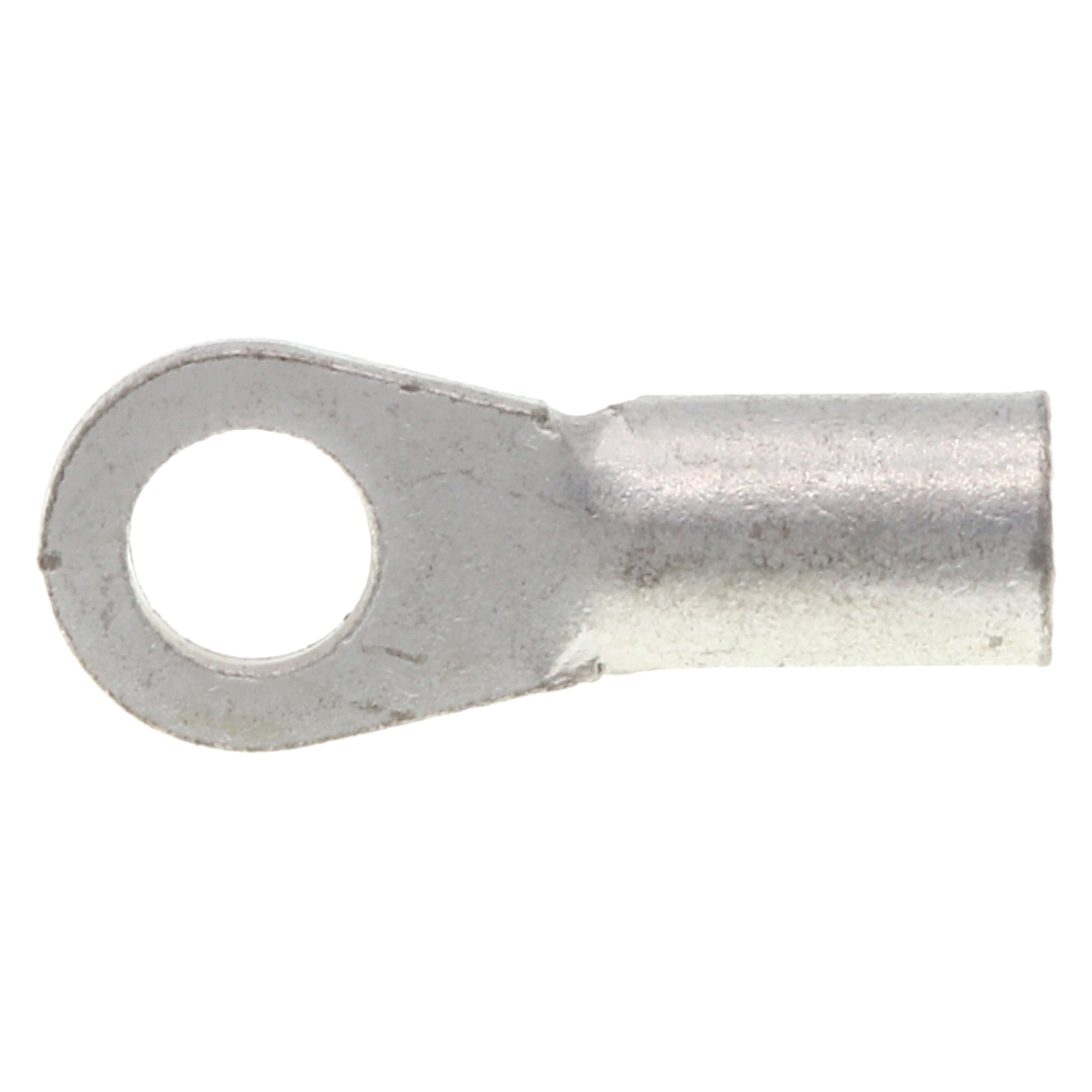

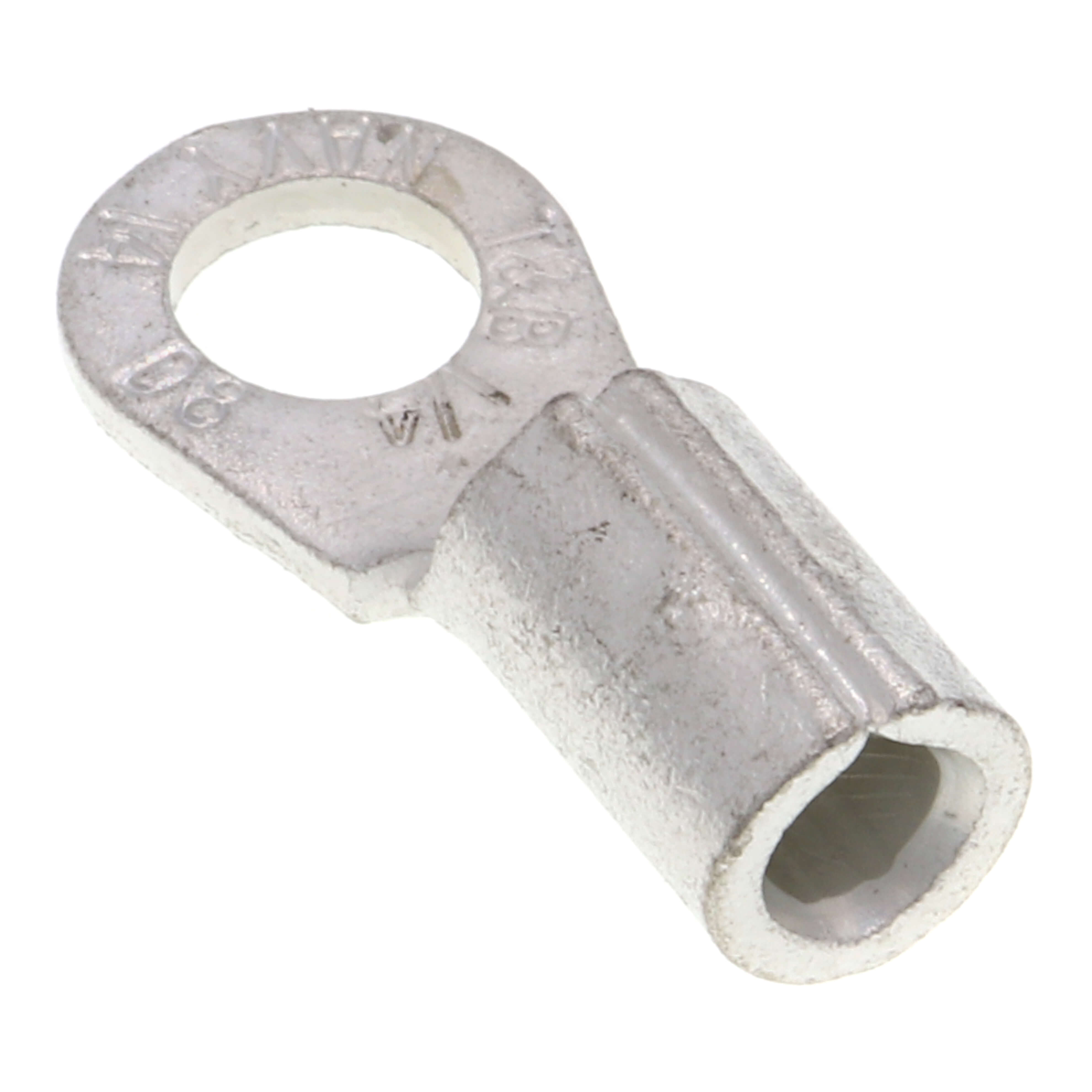

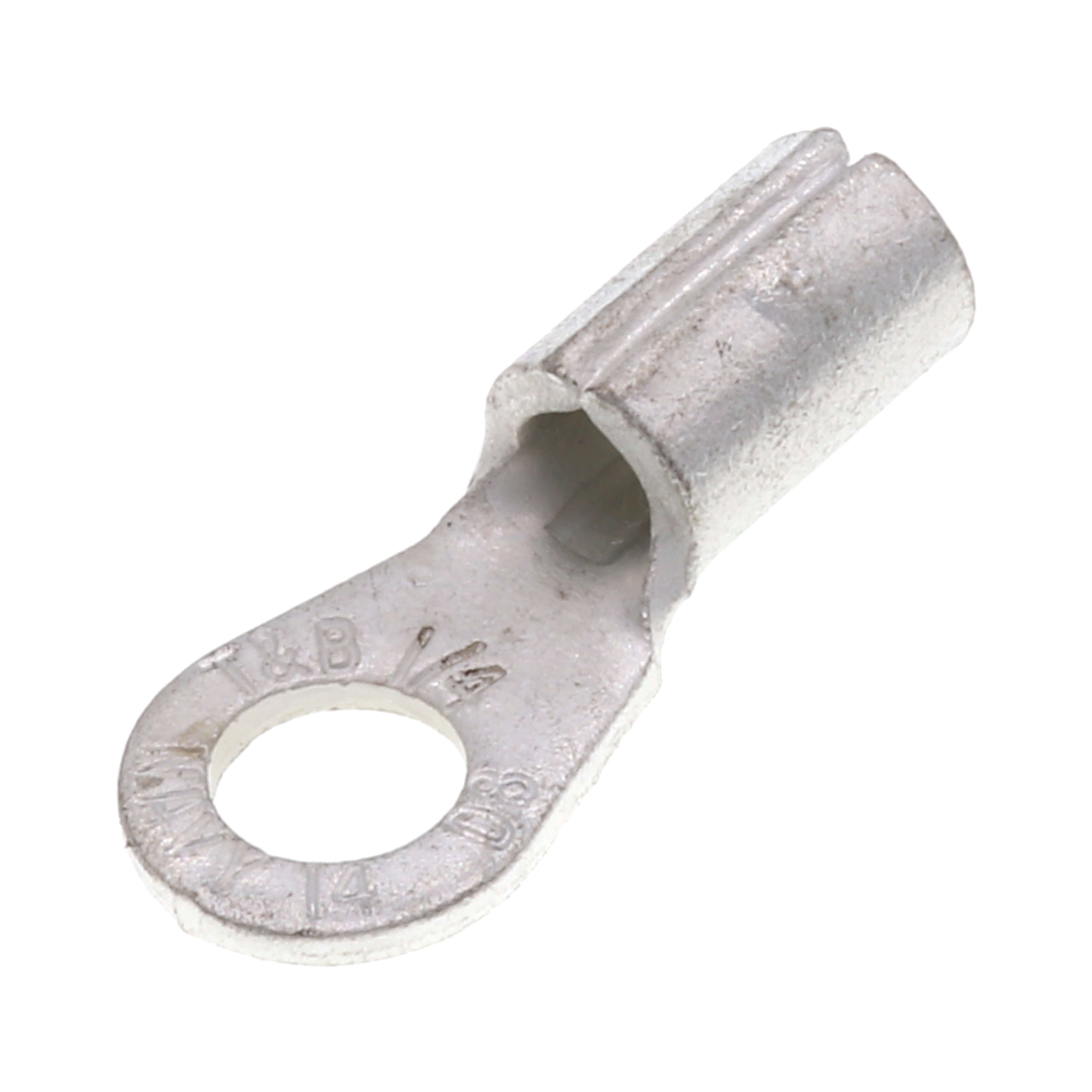

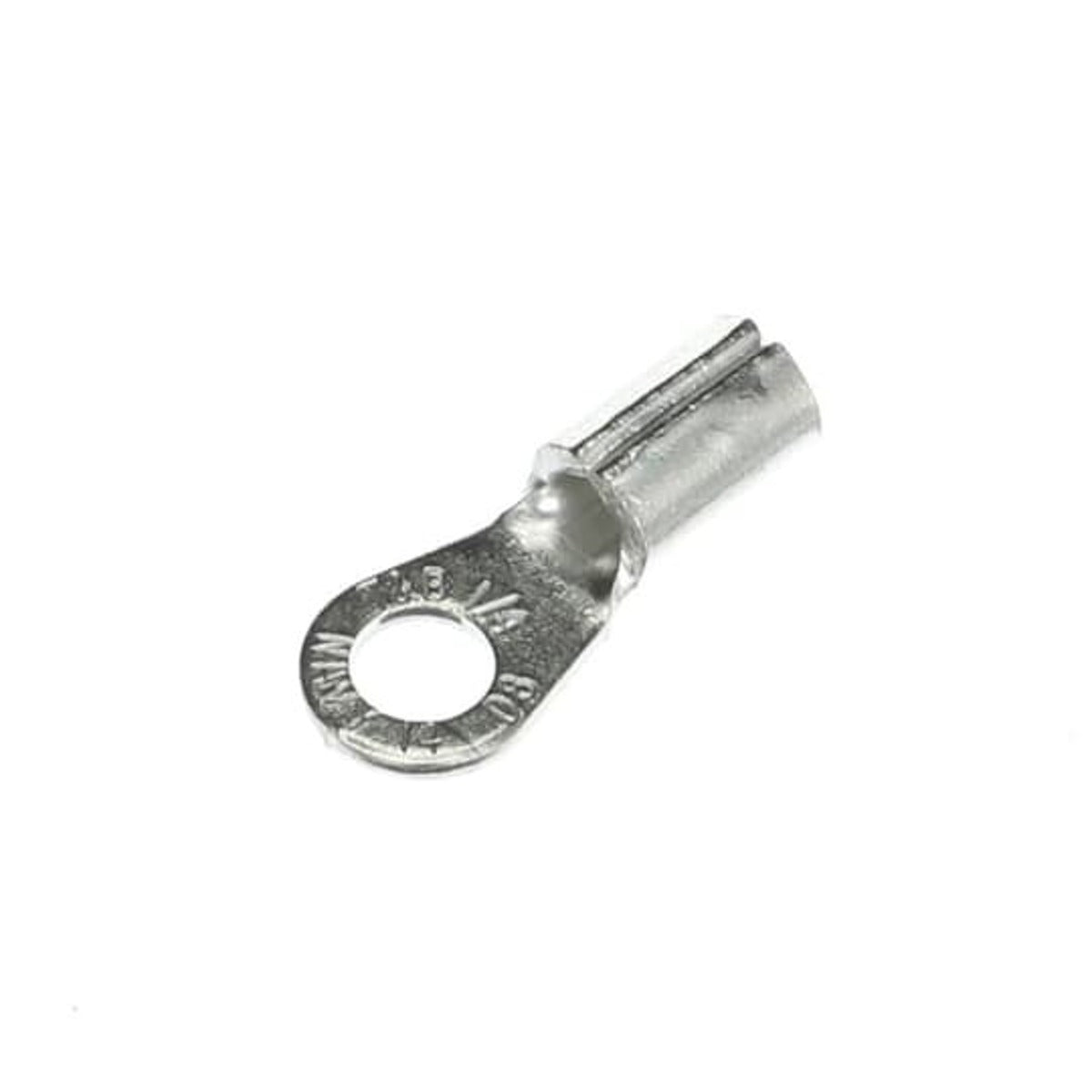

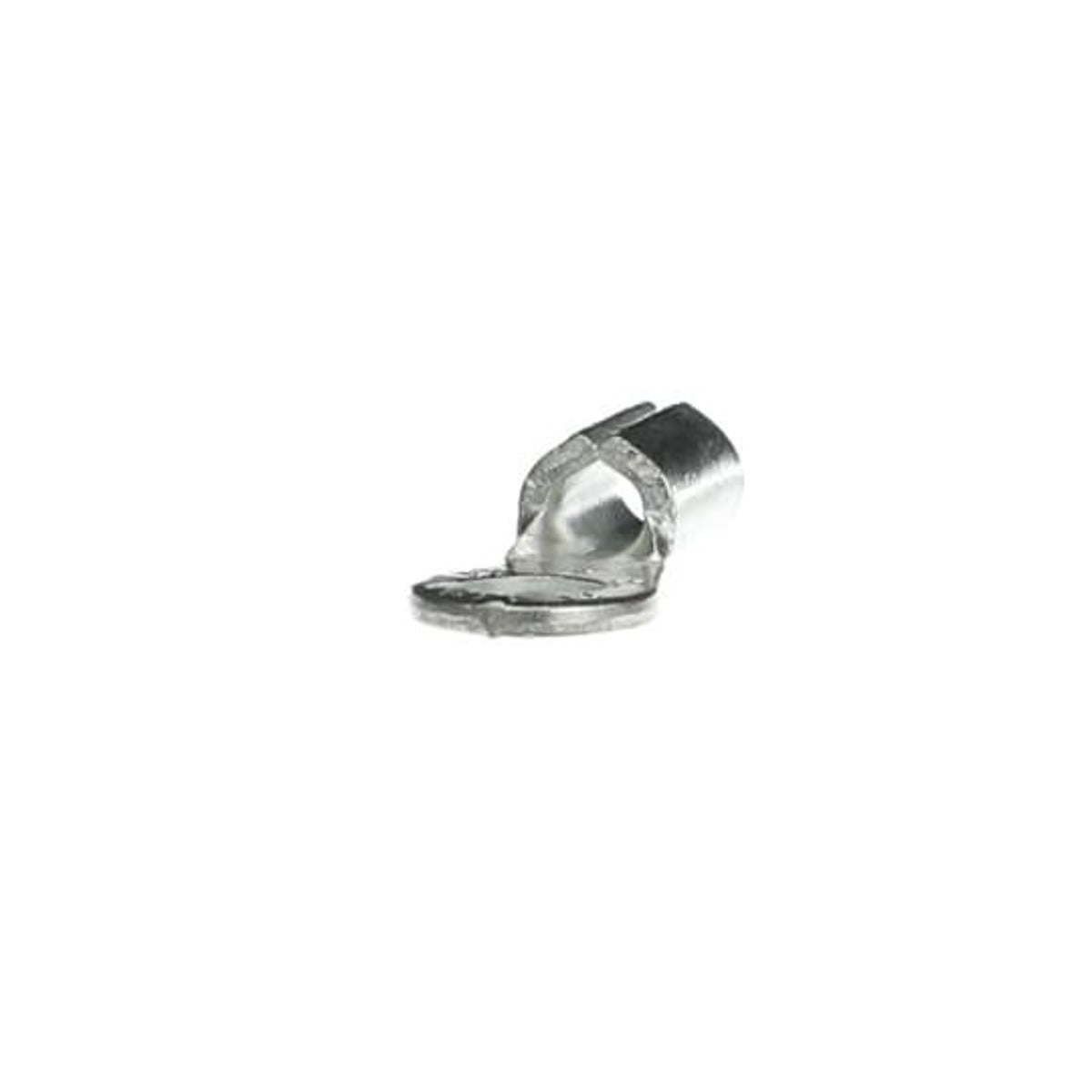

Sta-Kon D71 Non-Insulated Large Brazed Seam Ring Terminal 200 Pack

Brand: STA-KON
SKU: D71
Availability: Out Of Stock
$188.86
$188.86
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The STA-KON D71 non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single or double indentor. The serrated barrel increases grip on wire and accommodates a bolt hole of 1/4". These terminals are suitable for use in applications with a voltage rating of 600V.

  • Made of electrolytic copper for high conductivity
  • Can be installed with single or double indentor crimping tools
  • Serrated barrel increases grip on wire

Product Highlights

Non-insulated ring terminals with serrated barrel for increased wire grip. Constructed from electrolytic copper with a 1/4" bolt hole.

Product Information

Standard Information

  • Brand: STA-KON
  • Manufacturer Part Number: D71
  • Country of Origin: United States
Technical Specifications
Catalog Number
D71
Manufacturer
ABB - Installation Products
Brand
Sta-Kon
Country of Origin
United States
Made in USA
Yes
Material
Copper
Special Features
These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire
Standard
UL E9809
UPC
786210811529
GTIN
00786210811529
Item Type
Non-Insulated Ring Terminal
Voltage Rating
600 V
Wire Size
8 AWG
Minimum Conductor Size
9 AWG
Maximum Conductor Size
7 AWG
Insulation Type
Non-Insulated
Stud Size
1/4 Inch
Temperature Rating
150 Deg C
Standard Package
200
Approval
UL 486-A, CSA 22.2
Finish
Electro Tin Plated
AWG
8
Gauge
8
Features
Non-Insulated
Product Type
Ring (Terminal)
Bolt Hole Size
1/4"
Category
Electrical terminals
RoHS
RoHS3 Compliant
REACH
REACH 240 Compliant
TSCA
TSCA Section 6(h) Compliant
ETIM
EC001052 Solderless copper terminals for copper conductors
Flange shape
Ring shape
Insulation
None
Reel packaging
N
Surface protection
Tinned
