Product Description

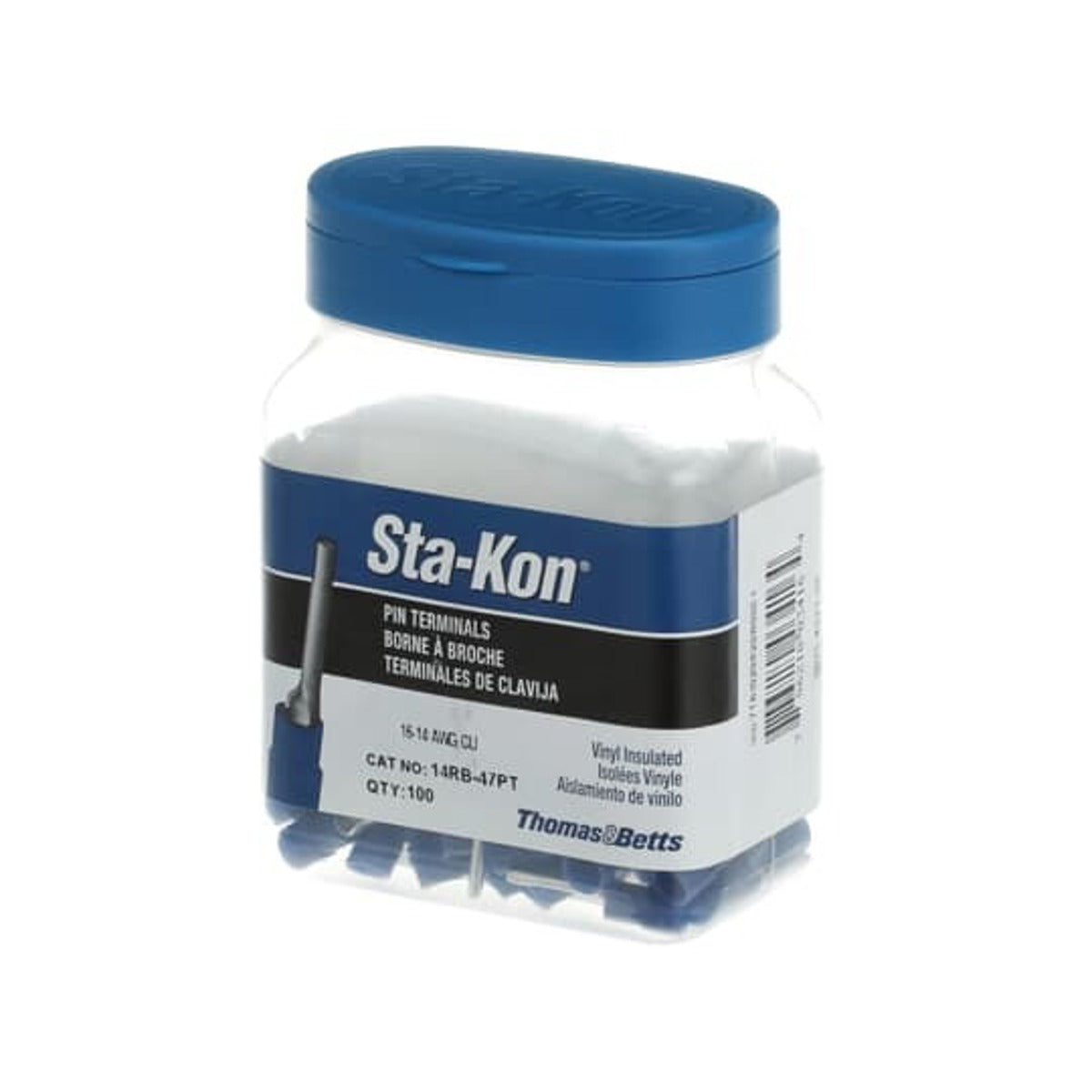

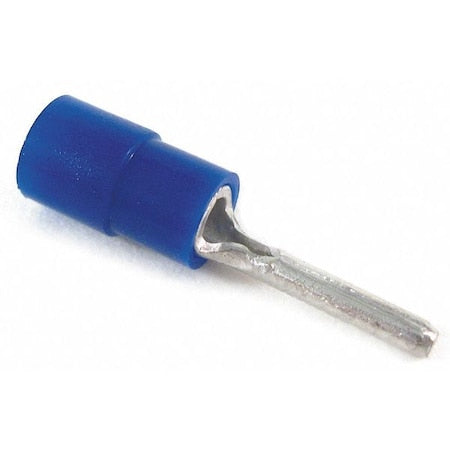

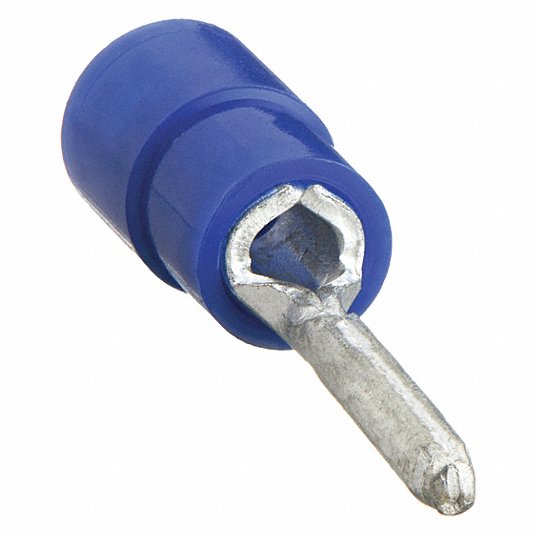

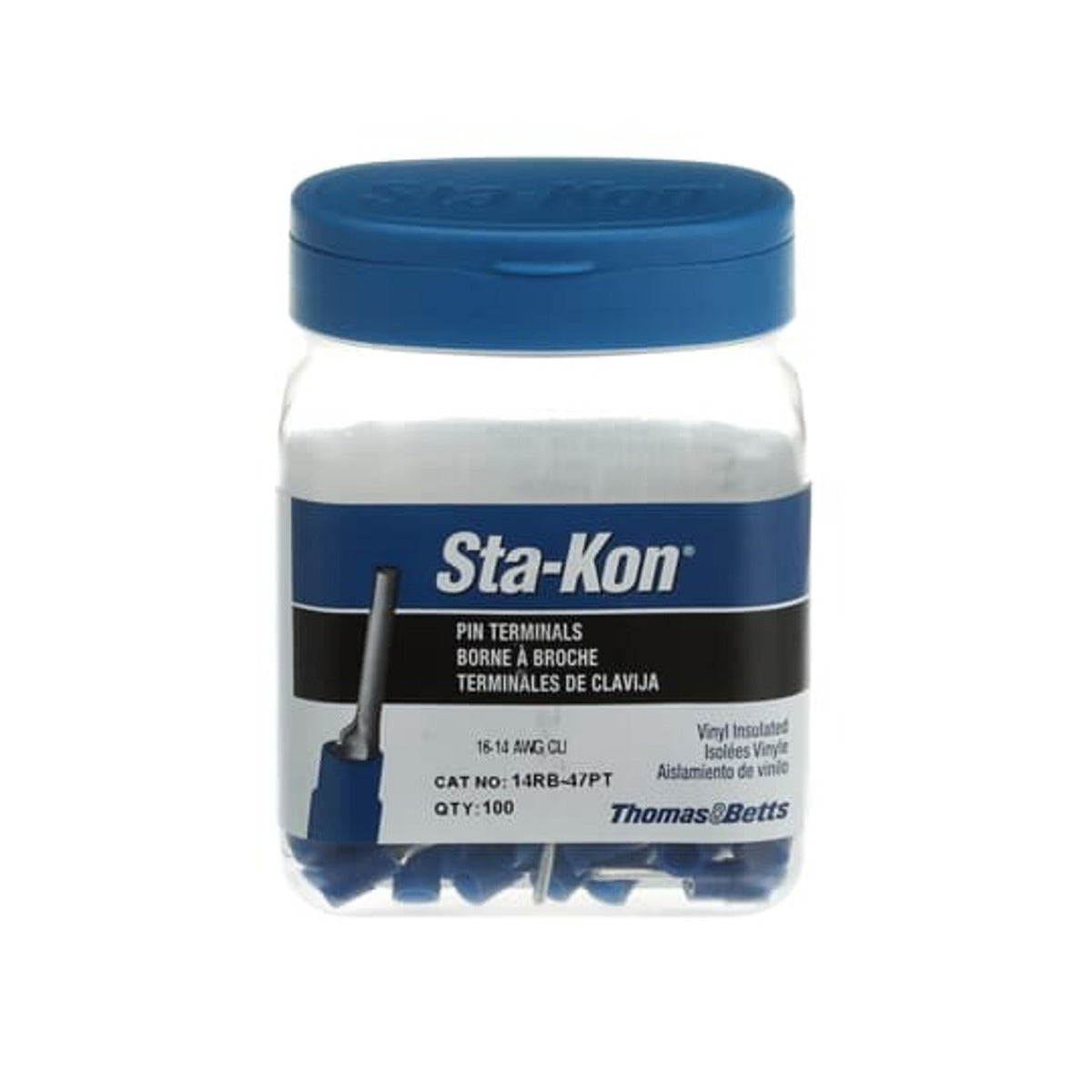

The STA-KON 14RB-47PT vinyl-insulated pin terminal is designed for terminating stranded wire into European/metric-style terminal blocks. It has a length of 0.87 inches and a pin length of 0.390 inches with a diameter of 0.075 inches. This pin terminal supports a wire range of #16-#14 AWG and is made of copper with tin plating.
- Vinyl insulated
- Pin terminal
- Wire range #16-#14 AWG
Product Highlights
This pin terminal provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks.
Product Information
Standard Information
-
Brand: STA-KON
-
Manufacturer Part Number: 14RB-47PT
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: 14RB-47PT
-
Manufacturer: ABB - Installation Products
-
Brand: Sta-Kon
-
Country of Origin: United States
-
Made in USA: Yes
-
Color: Blue
-
Material: Copper
-
UPC: 786210034164
-
GTIN: 00786210034164
-
Item Type: Vinyl Insulated Pin Terminal
-
Voltage Rating: 300 V
-
Wire Size: 16-14 AWG
-
Temperature Rating: 105 Deg C
-
Application: For Pin-Style Terminal Blocks
-
Approval: UL, CSA
-
Overall Length: 0.87 Inch
-
Pin Size: 0.075 Inch Dia x 0.39 Inch L
-
Seam: Brazed
-
Standards: CSA Certified, UL Listed
-
Max. Temp.: 221 Degrees F
-
Pin Length: 0.39 in
-
Seam Style: Brazed
-
Wire Range: 16 to 14 AWG
-
Max. Voltage: 600 V
-
Pin Diameter: 0.075 in
-
For Wire Size: 14 AWG, 16 AWG
-
Terminal Type: Pin
-
Contact Finish: Tin
-
Connection Type: Crimp
-
Insulation Type: Vinyl
-
Maximum Voltage: 600 V
-
Wire Size Range: 16 AWG - 14 AWG
-
Contact Material: Copper
-
Insulation Material: Vinyl
-
Terminal Connection: Crimp
-
Barrel Inside Diameter: 0.075 in
-
Maximum Operating Temperature: 221 Degrees F
-
Insulation: Polyvinyl chloride (PVC)
-
Surface protection: Tinned
-
Series: RB
-
Stock Thickness: 0.03 in
-
Voltage: 300 VAC
-
Standard & Approvals: CSA Certified, RoHS Compliant, UL 94 V-0 Flammability Rating, UL E9809 Listed
-
Barrel ID: 0.075 in
-
Pin Insertion Length: 0.39 in
-
Finish: Tin
-
Tooling: ERG4001
-
RoHS Compliant: Yes
-
AWG-range: 16-14
-
Flange shape: Pin shape
-
Colour insulation: Blue
-
REACH: REACH 247 Compliant
-
TSCA: TSCA Section 6(h) Compliant
