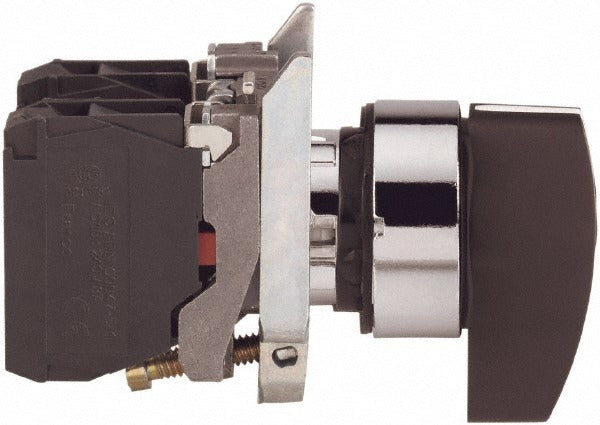

Square D XB4BJ53 3-position Momentary Selector Switch

Product Description

The SQUARE D XB4BJ53 is a 3-position momentary selector switch operator designed for industrial control panel applications. Featuring a black lever handle with a chrome metal bezel, it mounts through a 22 mm (0.87 inch) panel cutout via standard screw clamp terminals. The switch returns to center upon release, activating a 2NO contact configuration in the left or right position. Rated IP69K for high-pressure wash-down environments and NEMA 4X and 13 for corrosion and dust resistance, it is built to handle demanding industrial and process-control settings. The non-illuminated operator weighs 0.18 pounds and measures 3.2 inches in length by 2 inches in height by 2 inches in width.

This selector switch operator is suited for use in industrial machinery, manufacturing lines, and process-control panels where a momentary 3-position lever switch is required. Its shock-resistant and vibration-resistant construction makes it appropriate for equipment subject to mechanical stress. Electricians and control panel builders install this type of device in enclosures requiring NEMA 4X or 13 ratings, such as food-processing, chemical, and washdown environments. No specific compatible model numbers were provided in the product data.

Key Features

• 3-position momentary operation with center return and 2NO contact configuration
• IP69K ingress protection rating — suitable for high-pressure, high-temperature washdown
• NEMA 4X and 13 rated for corrosion and dust resistance
• 22 mm panel mount hole diameter with screw clamp terminals
• Chrome metal bezel with black lever operator — non-illuminated
• Shock-resistant and vibration-resistant construction
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple marine and international standards

Compatibility

Designed as an OEM-style operator for 22 mm modular selector switch assemblies in industrial control panel applications. No specific compatible contact blocks or base assemblies were identified in the provided product data — verify compatibility with the appropriate contact block for this switch series before ordering.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC guidelines and the enclosure manufacturer's instructions. De-energize the control panel completely before mounting or wiring this switch. Screw clamp terminals require proper torque per the terminal manufacturer's specification — do not overtighten. Confirm the panel cutout is 22 mm and that the enclosure rating matches or exceeds NEMA 4X and 13 requirements for the installation environment.
