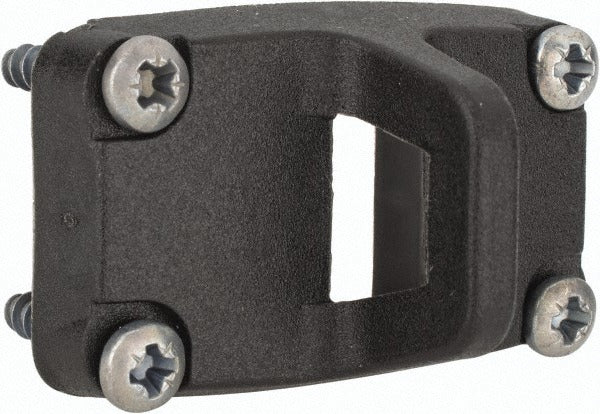

Square D XACA971 Control Station Support Ring

Product Description

The SQUARE D XACA971 is a support ring accessory designed for pushbutton control stations. It provides structural support and proper alignment within the control station assembly, ensuring secure mounting and reliable operation in industrial and commercial electrical control applications. Electricians and panel technicians install this component when assembling or servicing pushbutton control stations. At 0.04 pounds, this compact hardware piece measures 2 inches in length, 1.2 inches in width, and 1.1 inches in height, making it a straightforward drop-in replacement or new-build component for qualified electrical personnel.

This support ring is suited for use in control station assemblies found in industrial facilities, commercial buildings, and manufacturing environments. It is intended for installation within XACA series pushbutton control stations. Typical applications include motor control circuits, machine control panels, and other low-voltage switching assemblies where pushbutton hardware integrity is critical to safe and consistent operation.

Key Features

• Designed specifically as a support ring accessory for pushbutton control stations
• Compact form factor: 2 inches long, 1.2 inches wide, 1.1 inches tall
• Lightweight at 0.04 pounds for easy handling during assembly
• Single-unit packaging — sold individually for precise quantity procurement
• OEM-style accessory for maintaining control station assembly integrity

Compatibility

Designed for use with XACA series pushbutton control stations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the control panel and verify zero-voltage with a meter before beginning any disassembly or hardware replacement. Handle control station components carefully to avoid damaging mounting threads or internal contacts. Reassemble and verify all fasteners are seated properly before restoring power.
