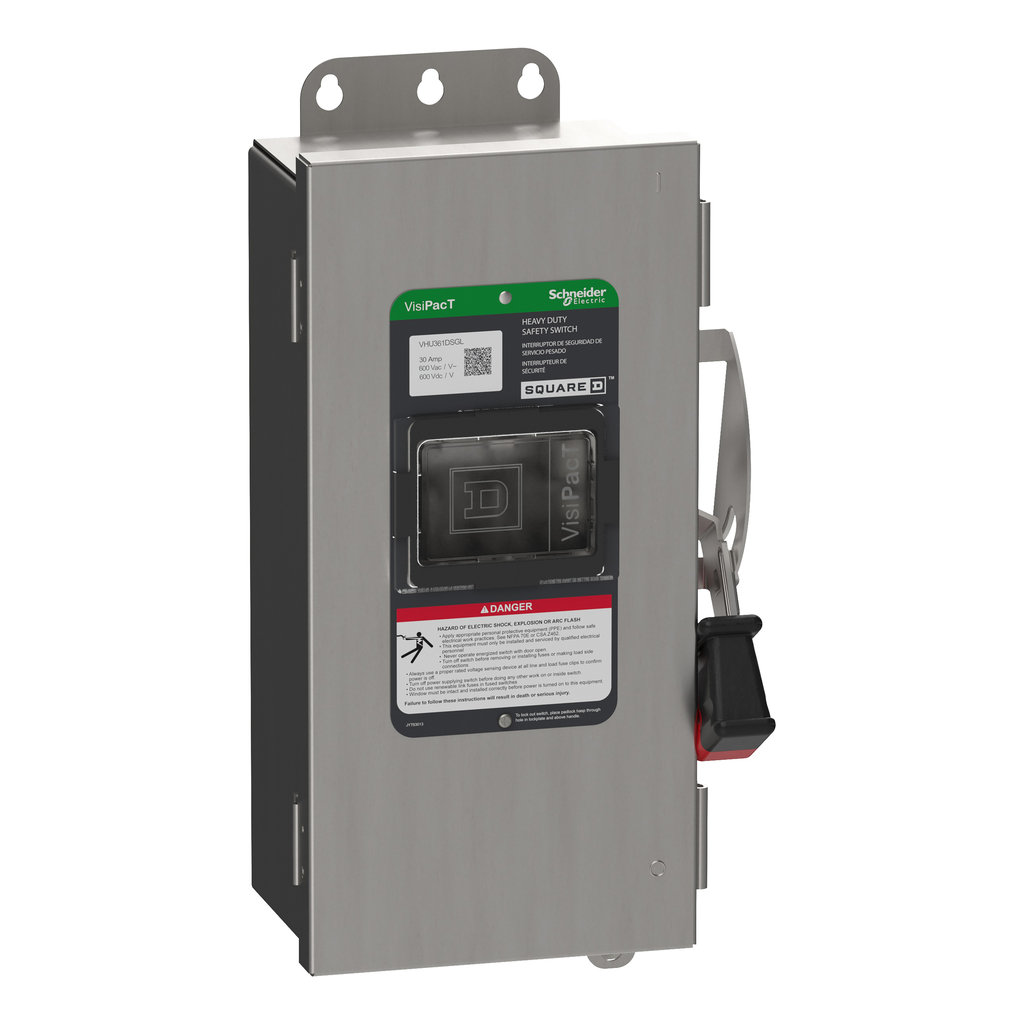

Square D VHU361DSGL Safety Switch 30A 600V NEMA 4X

Product Description

The Square D VHU361DSGL safety switch by Schneider Electric is a durable solution for electrical safety in commercial and industrial applications. This non-fusible heavy-duty switch features a viewing window and is rated for thirty amps at six hundred volts, ensuring reliable operation in demanding environments.

• Type 4X rated for indoor and outdoor use
• Three-pole configuration with factory-installed ground lugs
• Quick-make, quick-break operating mechanism

Product Highlights

This safety switch includes a stainless steel enclosure and is equipped with a dual cover interlock for added safety. The unit is designed to accommodate a wire range from AWG twelve to AWG six for aluminum and AWG fourteen to AWG six for copper. All switches are tested per UL98 and NEMA KS1 standards.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VHU361DSGL
• Line Rated Current: 30 A
• Voltage Rating: 600 VAC / 600 VDC
• Number of Poles: 3
• Depth: 5.384 inches
• Width: 7.22 inches
• Height: 14.93 inches
• Net Weight: 6 kg
• Mounting Type: Surface
• Certifications: UL Listed File E2875
