Product Description

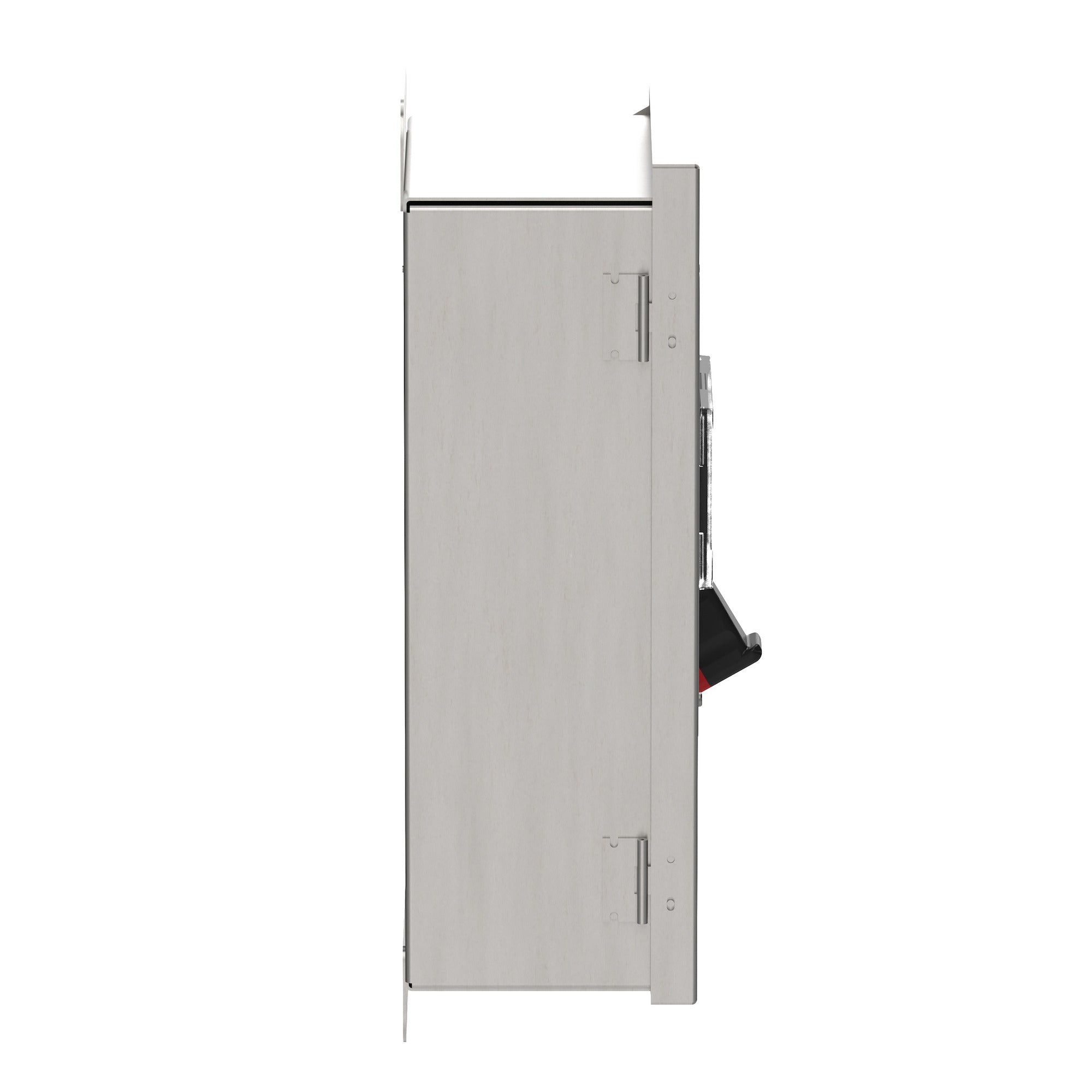

Square D VH361DSGL safety switch is designed for heavy-duty applications. It is suitable for both commercial and industrial settings. The switch can handle a current of thirty amps and functions at voltages up to six hundred volts alternating current and six hundred volts direct current. The safety switch features a three-blade fusible design with a short circuit rating of either ten kiloamperes or two hundred kiloamperes, depending on the fuses used. This device is rated Type 4X and comes in a stainless steel enclosure with a factory-installed viewing window.
- Durable construction for commercial and industrial use
- Quick-make, quick-break operating mechanism
- Compatible with multiple fuse types (H, K, R, J)
Product Highlights

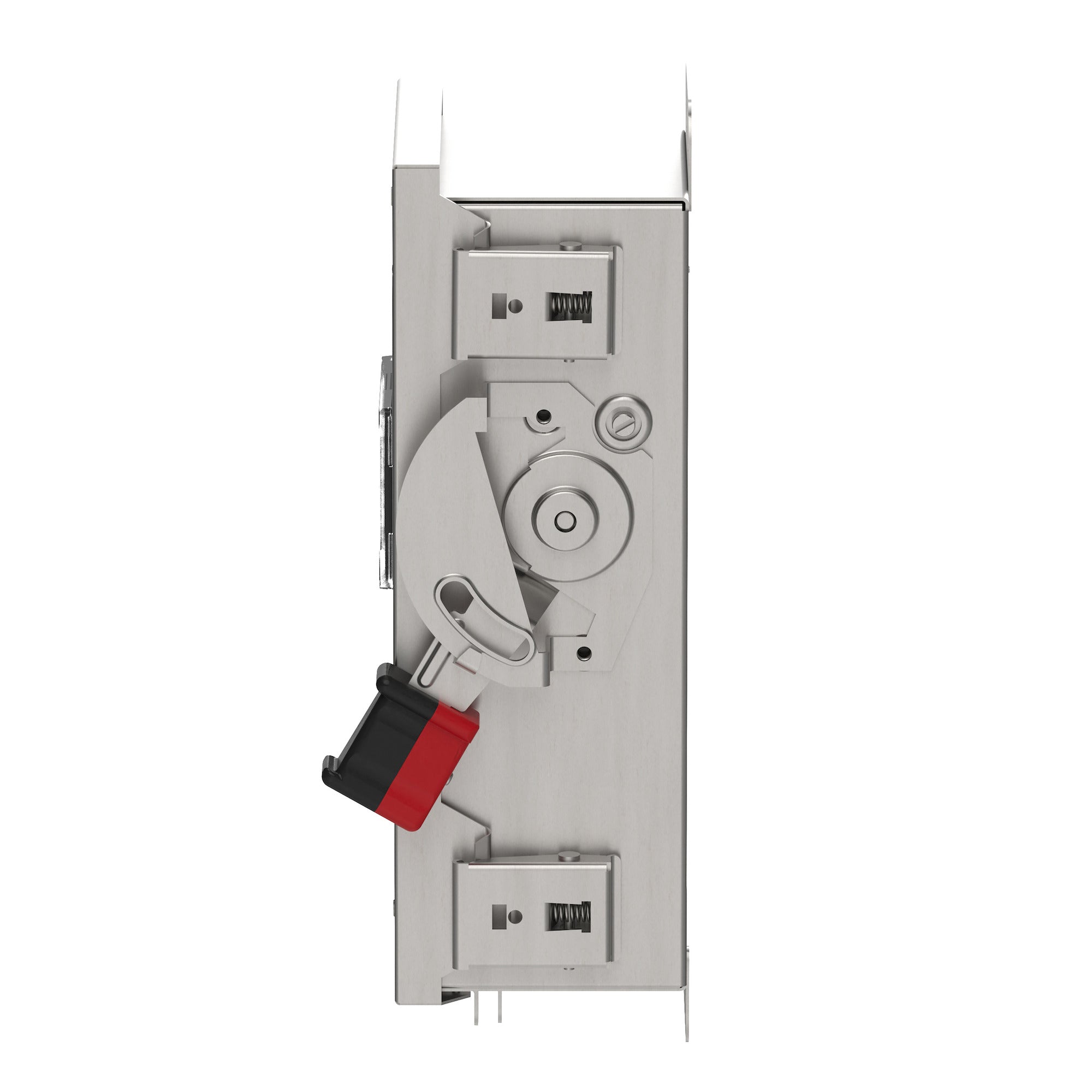

This switch includes a dual cover interlock and a color-coded indicator handle. It is surface mounted and can accommodate a solid neutral installation.
Product Information
Standard Information
-
Brand: Square D
-
Manufacturer: Schneider Electric
Technical Specifications
-
Catalog Number: VH361DSGL
-
Line Rated Current: 30 A
-
Voltage Rating: 600 VAC / 600 VDC
-
Short Circuit Current Rating: 10 kA / 200 kA
-
Fuse Type: H or K, R or J
-
Mounting Type: Surface
-
Number of Poles: 3 Pole
-
Dimensions: 5.384 inches (Depth) x 7.22 inches (Width) x 14.93 inches (Height)
-
Net Weight: 6 kg
