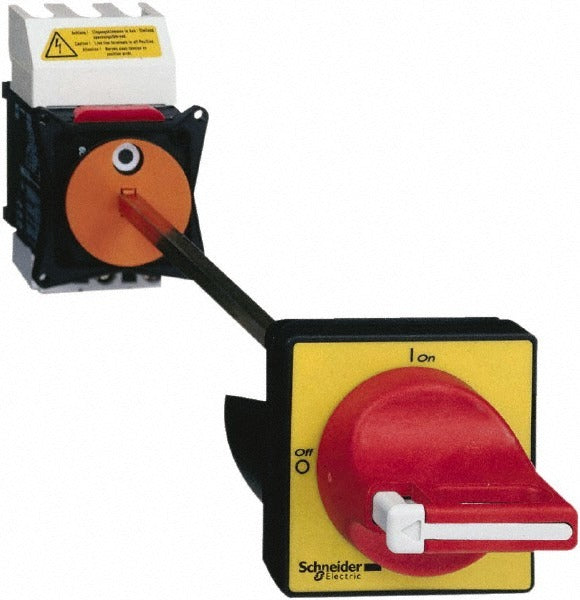

Square D VCCF01 Cam Disconnect Switch Fused 3 Pole

Product Description

The SQUARE D VCCF01 is a fused, enclosed cam disconnect switch rated for up to 690 volts AC. It is a 3-pole, 3-wire device with a 3NO contact form, designed to provide a safe, lockable means of isolating electrical circuits in industrial and commercial installations. The switch ships with a handle and shaft extension included, simplifying panel or enclosure integration. At 0.75 pounds, it is compact enough for tight switchboard layouts. Licensed electricians and industrial maintenance technicians are the primary installers of this type of disconnect.

This cam disconnect switch is suited for use in industrial control panels, motor branch circuits, and machinery disconnect applications where IEC-style components are specified. Its dual ingress protection ratings of IP20 and IP65 allow installation in both standard indoor enclosures and wash-down or outdoor-rated enclosures depending on the mounting arrangement. The NEMA 1 and NEMA 12 ratings extend its fit to general-purpose and dust-tight indoor environments common in manufacturing and process facilities.

Key Features

• Fused design provides overcurrent protection integral to the disconnect function
• 3-pole, 3NO contact configuration for standard three-phase circuit isolation
• Rated to 690 volts AC, suitable for international and domestic industrial voltage systems
• Dual IP rating: IP20 and IP65 for flexible enclosure mounting options
• NEMA 1 and NEMA 12 ratings cover general-purpose and dust-tight indoor applications
• Includes handle and shaft extension for direct panel-mount installation
• Certified to CSA, GL, IEC 60947-3, and UL standards

Compatibility

Designed as an OEM-style replacement or new-installation cam disconnect switch for industrial control panels and machinery requiring IEC 60947-3 compliant fused disconnect devices.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and any applicable local electrical codes. De-energize and lock out the circuit at the upstream disconnect or breaker before beginning any wiring work. Verify that the panel or enclosure ingress protection requirement matches the selected IP mounting configuration before securing the switch. Do not exceed the 690-volt AC voltage rating of the device.
