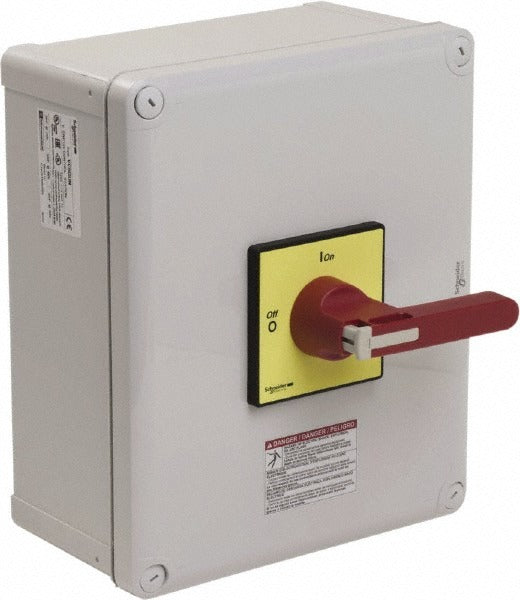

Square D VC5GUN Enclosed Cam Disconnect Switch 3 Phase

Product Description

The SQUARE D VC5GUN is an enclosed cam disconnect switch rated for 3-phase, 3-pole electrical service. It provides a manual means of isolating power to motors, machinery, and industrial equipment. The enclosure is constructed from polyvinylchloride (PVC) and carries an IP65 ingress protection rating, making it suitable for environments where dust and water jets are a concern. The unit meets multiple standards including UL 508, UL Listed, CSA 22.2, CSA Certified, IEC 60204, and IEC 60947-4-1, and carries a NEMA 1 and NEMA 12 rating. Licensed electricians and industrial maintenance technicians are the primary installers of this switch.

This cam disconnect switch is designed for use in commercial and industrial applications where a reliable, code-compliant disconnect point is required. Typical installations include motor control panels, conveyor systems, pump stations, and manufacturing equipment requiring lockout-tagout capable disconnects. Its PVC enclosure and IP65 rating make it well suited for light industrial environments where the enclosure may be exposed to dust or incidental liquid contact. The NEMA 12 rating further confirms its suitability for indoor locations with non-corrosive coolants and dust.

Key Features

• 3-phase, 3-pole configuration for motor and equipment disconnect applications
• IP65-rated PVC enclosure resists dust ingress and water jets
• NEMA 1 and NEMA 12 rated for indoor industrial environments
• Compliant with UL 508, CSA 22.2, IEC 60204, and IEC 60947-4-1 standards
• Overall dimensions of 11.5 inches height, 9.5 inches width, and 7.5 inches depth
• Weighs 7.04 pounds for straightforward panel mounting

Compatibility

Designed as an OEM-style replacement or direct-install enclosed cam disconnect switch for 3-phase industrial motor control and equipment isolation applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize all circuits and verify zero voltage at the disconnect point before beginning installation. Ensure the enclosure is properly sealed after wiring to maintain the IP65 and NEMA 12 ingress protection ratings. Follow all applicable lockout-tagout procedures during installation and servicing.
