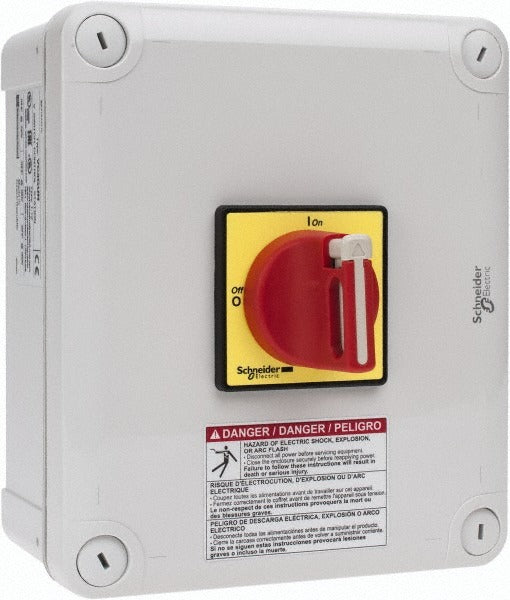

Square D VC3GUN Cam Disconnect Switch 3 Phase Enclosed

Product Description

The SQUARE D VC3GUN is a 3-phase, 3-pole enclosed cam disconnect switch designed for industrial and commercial electrical systems. Housed in a polyvinylchloride (PVC) enclosure rated IP65, this disconnect switch provides a reliable means of isolating power in demanding environments where moisture and dust ingress are concerns. The unit measures 7.6 inches in overall height, 6.5 inches in overall width, and 5.2 inches in overall depth. It carries NEMA 1 and NEMA 12 ratings and meets multiple international and domestic standards. Licensed electricians install this switch as part of machine tool, motor control, or industrial panel applications where a durable, code-compliant disconnect is required.

This cam disconnect switch is suited for 3-phase commercial and industrial electrical installations where a robust enclosed disconnect is needed. Typical applications include motor disconnect service on production equipment, conveyor systems, and HVAC-related power panels. The IP65 and NEMA 12 ratings make it appropriate for locations exposed to dust, oil, and non-directed water spray. The enclosed PVC housing protects internal contacts from environmental contaminants in light industrial and manufacturing environments.

Key Features

• 3-phase, 3-pole configuration for industrial power disconnection
• IP65-rated PVC enclosure resists dust and water ingress
• NEMA 1 and NEMA 12 dual rating for versatile installation environments
• Compliant with UL 508, UL Listed, CSA 22.2, CSA Certified, IEC 60204, and IEC 60947-4-1
• Compact footprint: 7.6 inches H x 6.5 inches W x 5.2 inches D

Compatibility

Designed as an OEM-style enclosed cam disconnect switch for 3-phase industrial and commercial electrical systems requiring a code-compliant, environmentally rated disconnect point.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lockout/tagout the upstream power source before mounting or wiring the disconnect switch. Verify that all field wiring is rated for the application voltage and ampacity before making connections. Enclosure integrity should be maintained by using appropriate conduit fittings to preserve the IP65 and NEMA 12 ratings.
