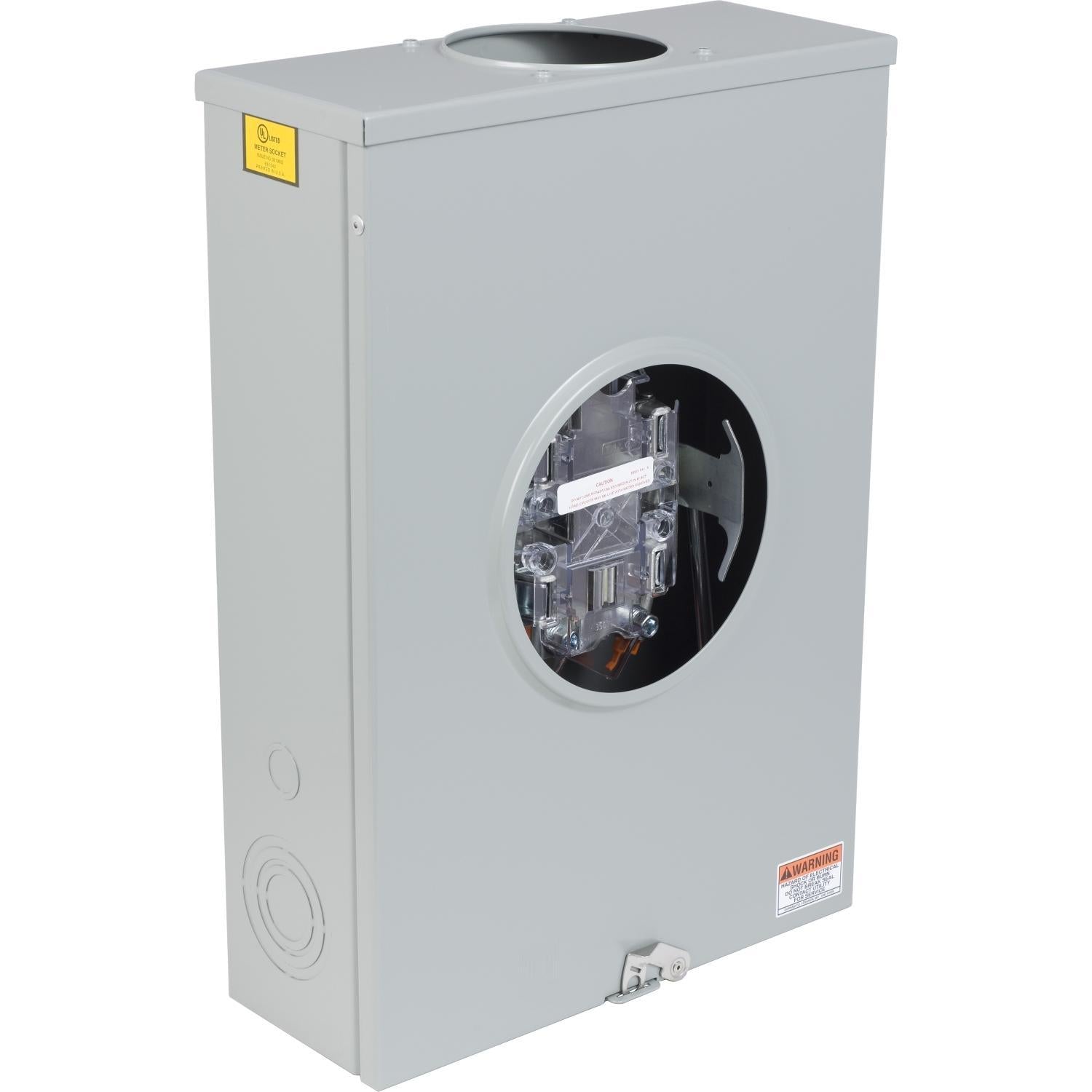

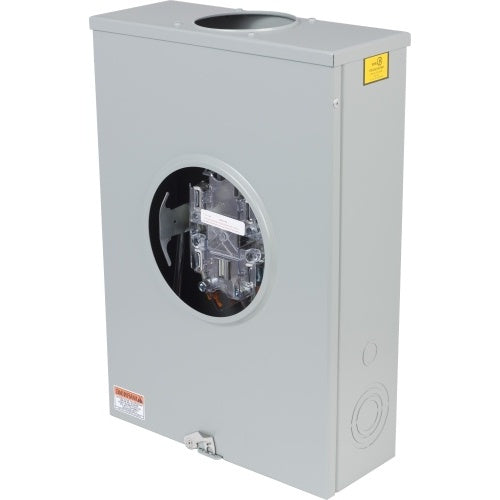

Square D UTH5213T Meter Socket, Ringless 200A

Product Description

The SQUARE D UTH5213T meter socket is a power distribution panel used in single or three phase residential applications. This ringless type meter socket features a lever bypass and supports underground or overhead service feed. Rated at 200A with 5 jaws and a 10,000 RMS Symmetrical Amperes short circuit current rating. It is UL Listed and features a NEMA 3R enclosure.

• Ringless type with lever bypass
• Underground or overhead service feed
• Rated at 200A with 5 jaws
• UL Listed

Product Highlights

The SQUARE D UTH5213T meter socket is ideal for residential power distribution, offering a ringless design, lever bypass, and UL listing.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: UTH5213T
• Country of Origin: USA

Technical Specifications

• Size: INDIVIDUAL
• Type: Ringless;Meter Socket
• Brand: Square D
• Voltage: 600 Volt
• Amperage: 200 Amp
• Enclosure: 3R
• NEMA Size: 3R
• Cable Entry: OH/UG
• Certifications: UL
• Number of Jaws: 5 with jaw release
• Number of Phases: 1 Phase
• Enclosure Material: Steel
• Catalog Number: UTH5213T
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Made in USA: Yes
• Bypass Type: Lever
• Phase: 1
• UPC: 785901627821
• GTIN: 00785901627821
• Item Type: Ringless;Meter Socket
• Service Type: Overhead/Underground
• Circuit Configuration: 1-Phase 3 Wire
• Voltage Rating: 600 VAC
• Current Rating: 200 Ampere
• Bypass Switch Type: Lever
• Hub Type: 2 to 4 Inch
• Knockouts: (1) 5/16 Inch, (1) 1/2 Inch, (2) (1/2 Inch-3/4 Inch), (6) (2 Inch-2 1/2 Inch-3 Inch) Concentric Knockout
• Neutral Type: Bonded Neutral
• Wire Size: 6 AWG to 350 KCMIL (Aluminum/Copper, Line/Load/Neutral), 14 to 2 AWG (Aluminum/Copper, Ground)
• Model Name: Square D - UTH5213T 200A Ringless Meter Socket With Lever Bypass
• Number of Items: 1
• Part Number: UTH5213T
• Included Components: Square D - UTH5213T 200A Ringless Meter Socket With Lever Bypass
• Cover Type: Ringless
• Terminal Type: Hex Lug
• Amperage Rating: 200 A
• Enclosure Type: NEMA 3R
• Feed Type: Overhead/Underground
• Sub-Brand: Square D
• [Ue] Rated Operational Voltage: 600 V AC
