Product Description

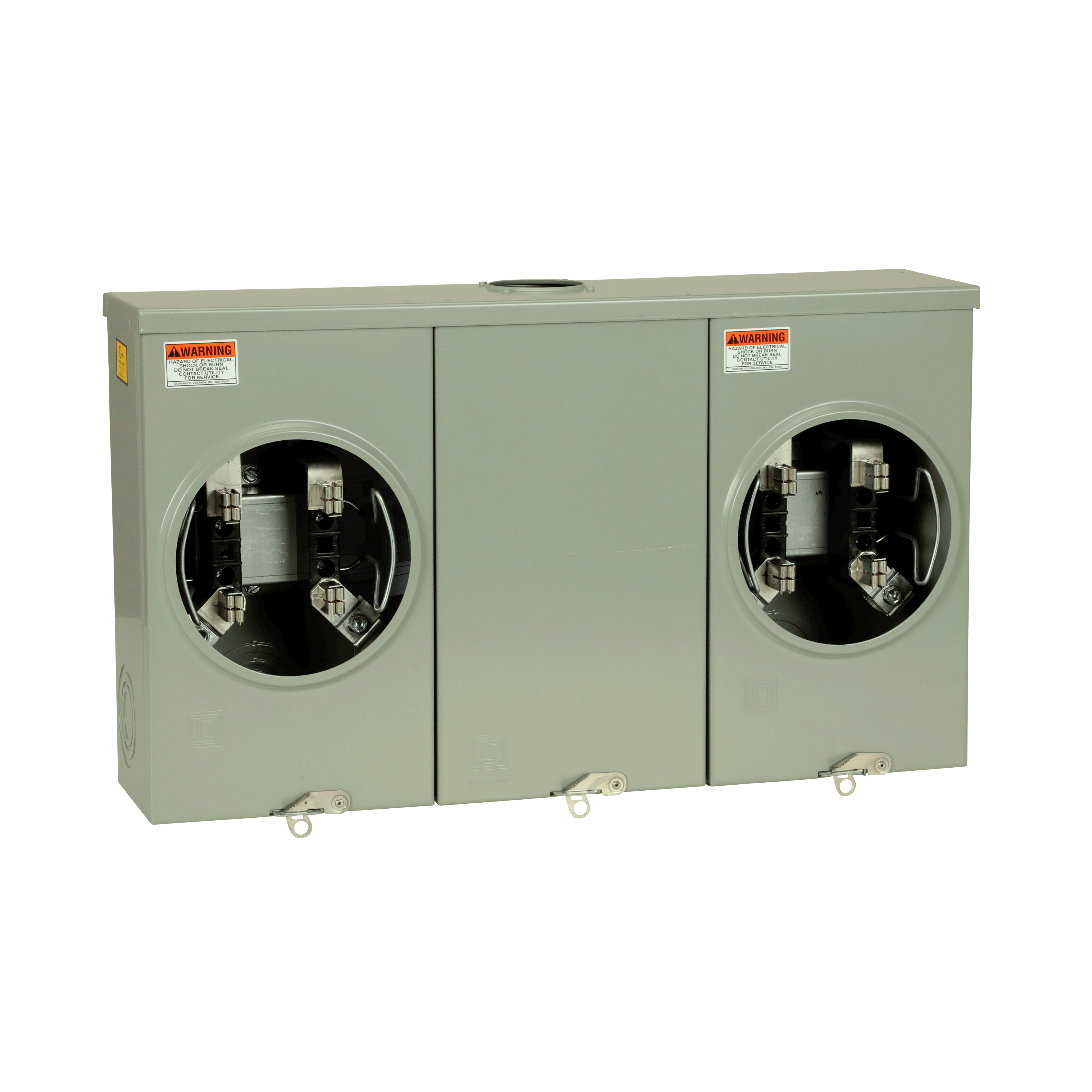

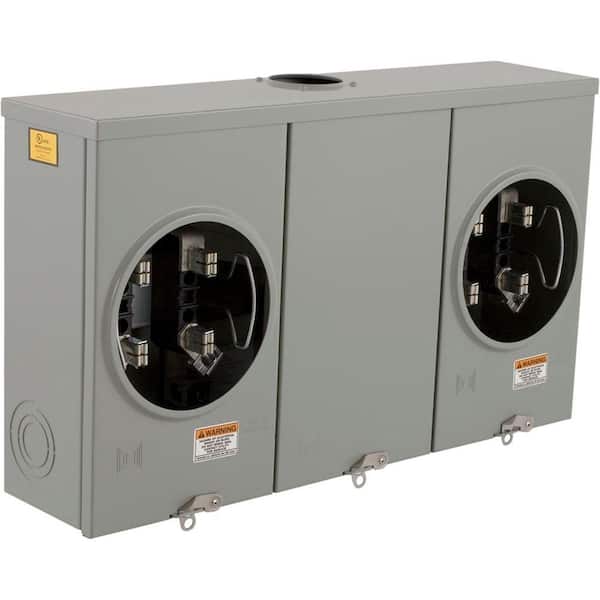

The Square D UT2R2122B horizontal ganged meter sockets are single phase power distribution panels used in residential applications. These meter sockets are NEMA 3R enclosures supplied with ground lugs and a top endwall hub opening. Rated at 200A with 4 jaws and main lugs rated at 205A when using the interior option. UL Listed.
- Single phase power distribution panels
- NEMA 3R enclosure
- Ringless type with no bypass
Product Highlights
Horizontal ganged meter sockets for residential applications. NEMA 3R enclosure, 200A, ringless type with no bypass, and suitable for underground or overhead service.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: UT2R2122B
-
Country of Origin: USA
Technical Specifications
-
Type: Ringless;Meter Socket
-
Brand: Square D
-
Current: 205 Amp
-
Voltage: 600 Volt
-
Amperage: 200 Amp
-
Enclosure: 3R
-
NEMA Size: 3R
-
Cable Entry: OH/UG
-
Product UPC: 78590129124
-
12-Digit UPC: 785901291244
-
Certifications: UL
-
Number of Jaws: 4 without jaw release
-
Number of Phases: 1 Phase
-
Country of Origin: USA
-
Line Rated Current: 205 A
-
Manufacturer: Schneider Electric
-
Made in USA: Yes
-
Bypass Type: No Bypass
-
Phase: 1 pH
-
Standard: UL Listed
-
UPC: 785901291244
-
GTIN: 00785901291244
-
Item Type: Meter Socket;Ringless
-
Service Type: Overhead/Underground
-
Circuit Configuration: 1-Phase 3 Wire
-
Current Rating: 200 Ampere
-
Main Lug Current: 205 Ampere
-
Number of Positions: 2
-
Wire Size: 6 AWG to 250 KCMIL (Aluminum/Copper, Phase/Neutral, Main Lug), 8 AWG to 250 KCMIL (Aluminum/Copper, Phase/Neutral, Branch Lug)
-
Mounting: Horizontal
-
Approval: UL
-
Mounting Type: Horizontal
-
ECCN: EAR99
-
NEMA Rating: 3R
-
AWG Range: AWG 6...250 kcmil
-
No. of Jaws: 4 without jaw release
-
No. of Wires: 3
-
Rated Voltage: 600V ac
-
Wiring Configuration: 3-Wire
-
Maximum Amperage (A): 205 A
-
Alternate Catalog Number: UT2R2122B
-
ARRA Compliant: N
-
Buy American Compliant: N
-
Feed Type: Overhead/Underground
-
Hub Opening: A ACP closing plate
-
Hub Type: A ACP Closing Plate
-
Item Group: 00039
-
Jaw Quantity: 4 without jaw release;4 without jaw release
-
Number of Meter Positions: 2
-
Series: UT Series
-
Terminal Type: Ground Lug
-
UNSPSC: 39121102
-
UPC 11: 78590129124
-
UPC 12: 785901291244
-
Enclosure Type: NEMA 3R
-
Voltage Rating: 600 VAC
-
Catalog Number: UT2R2122B
