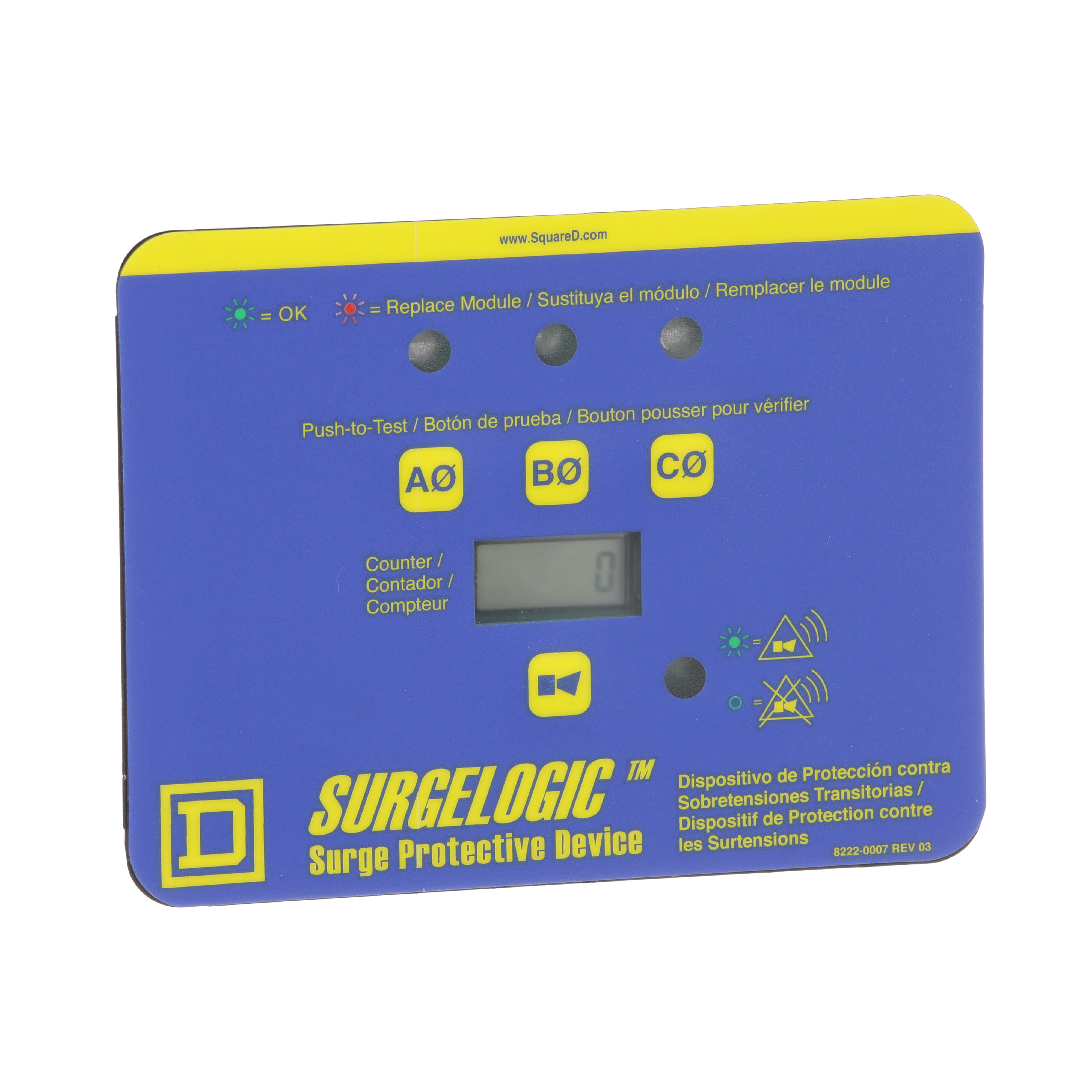

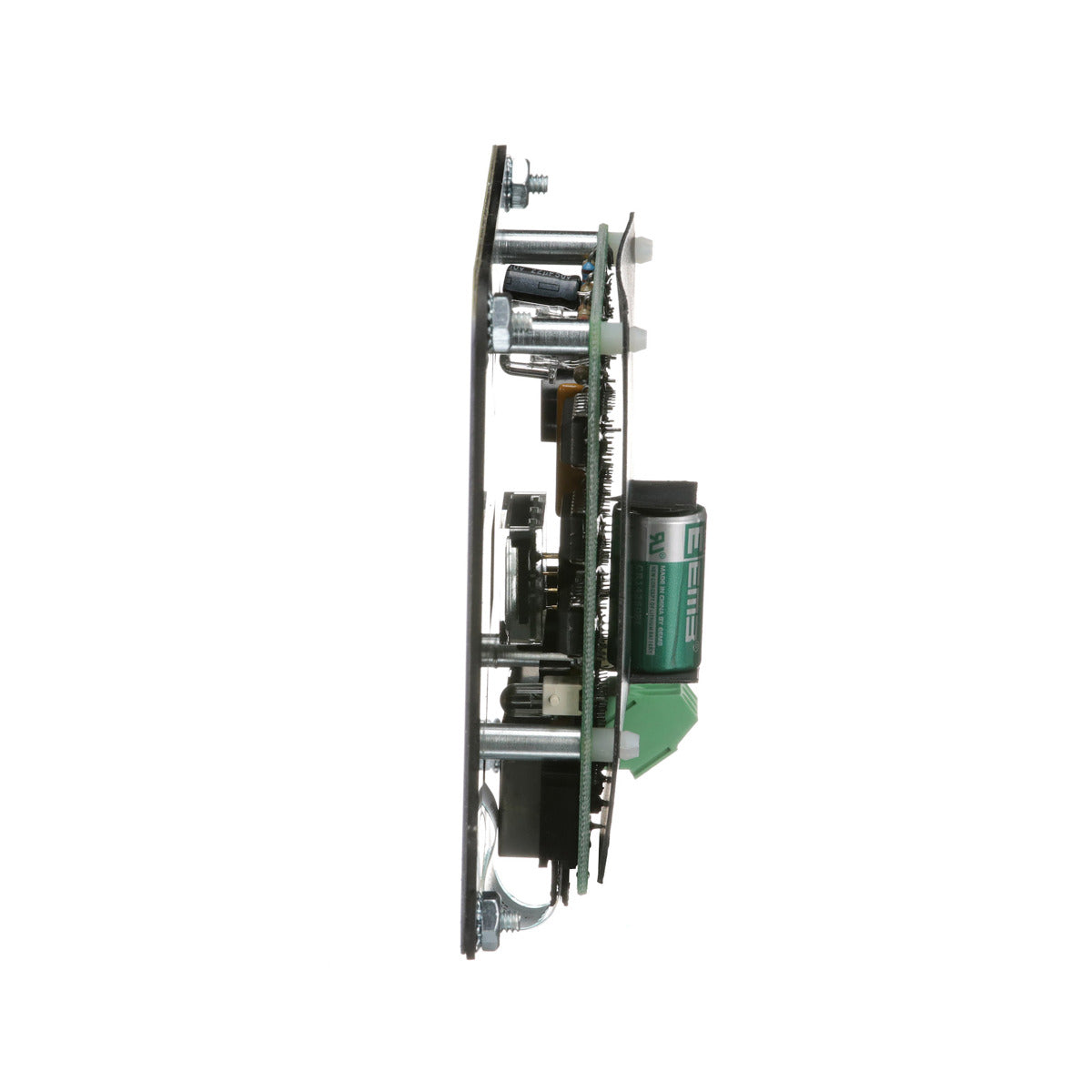

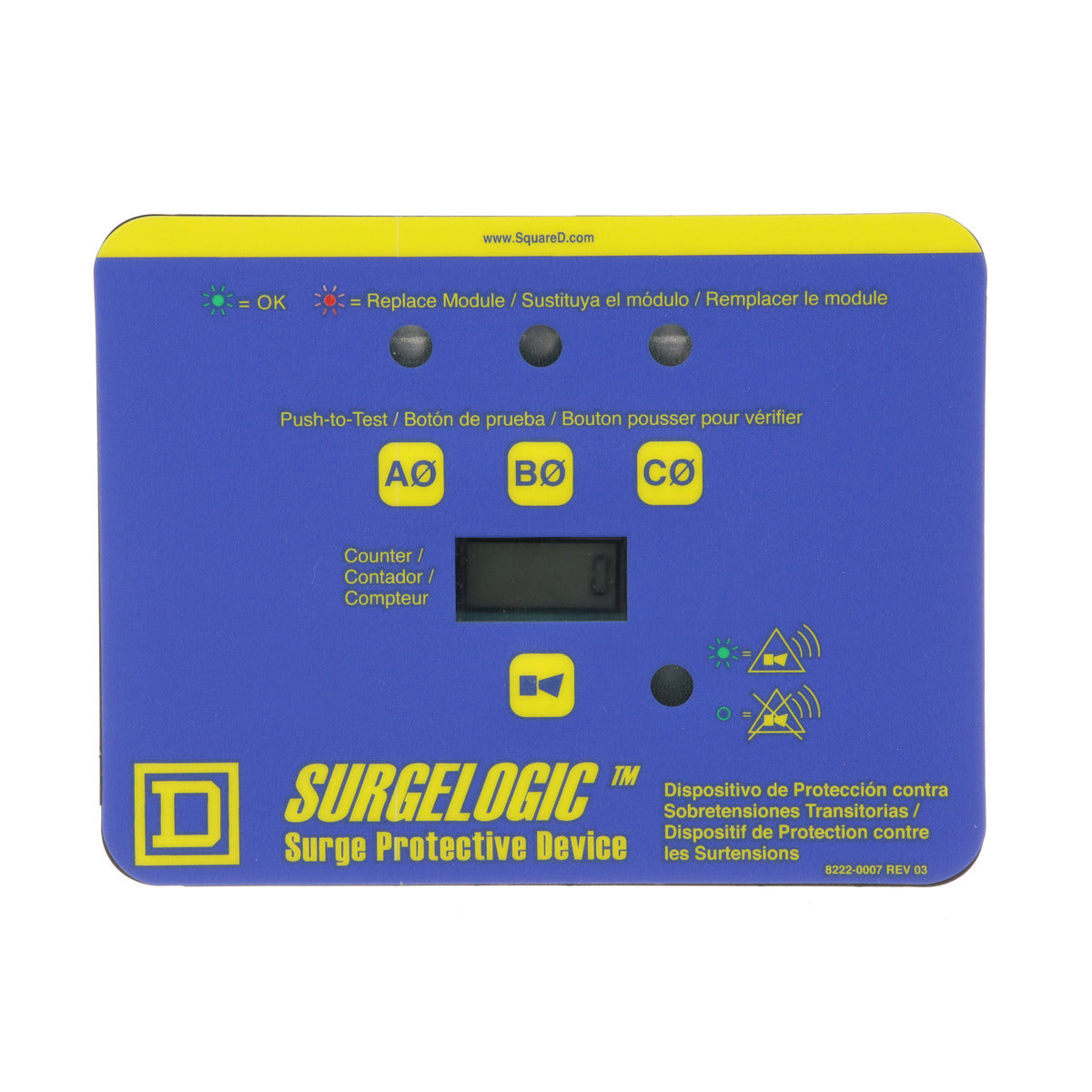

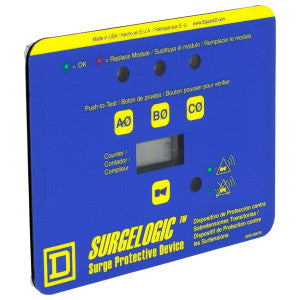

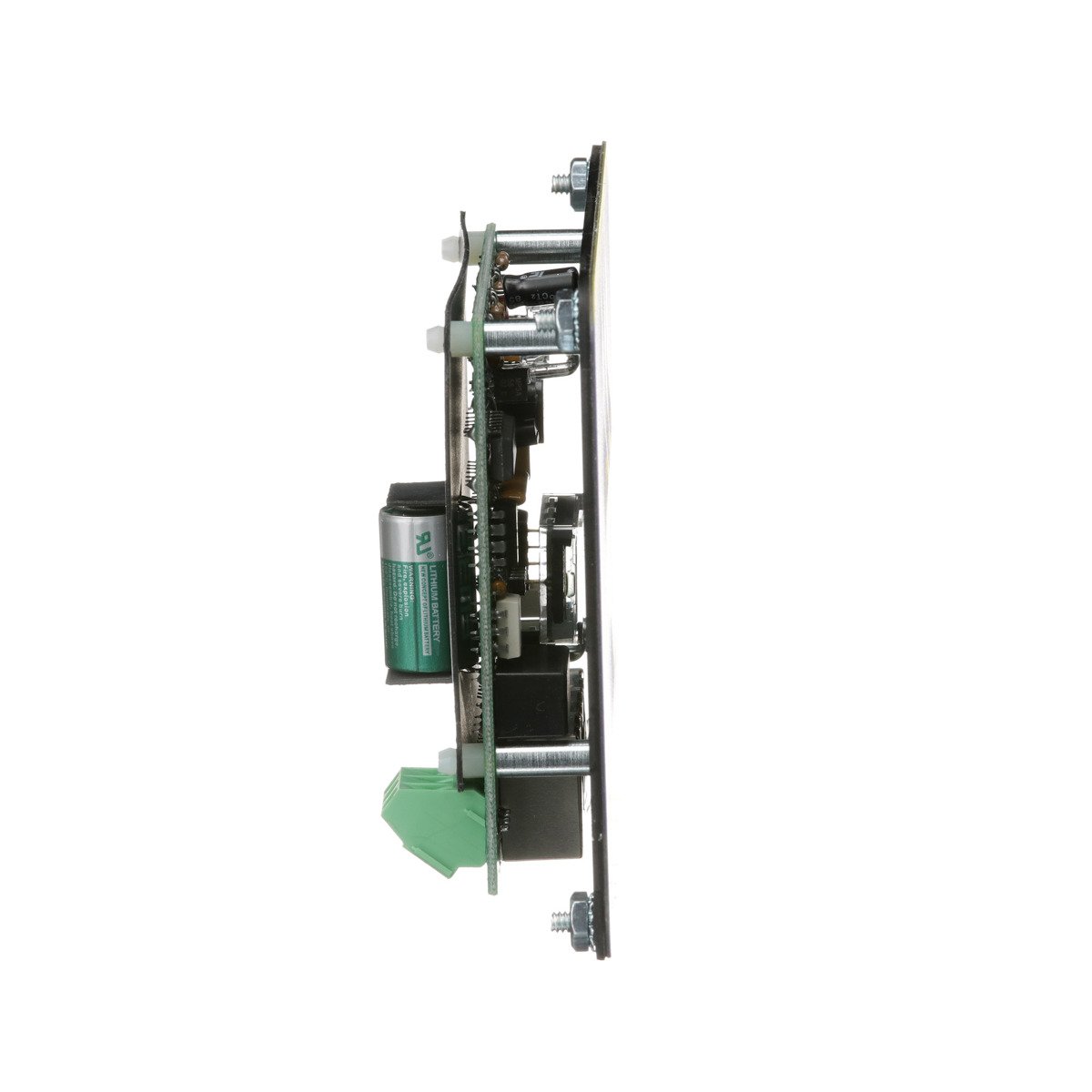

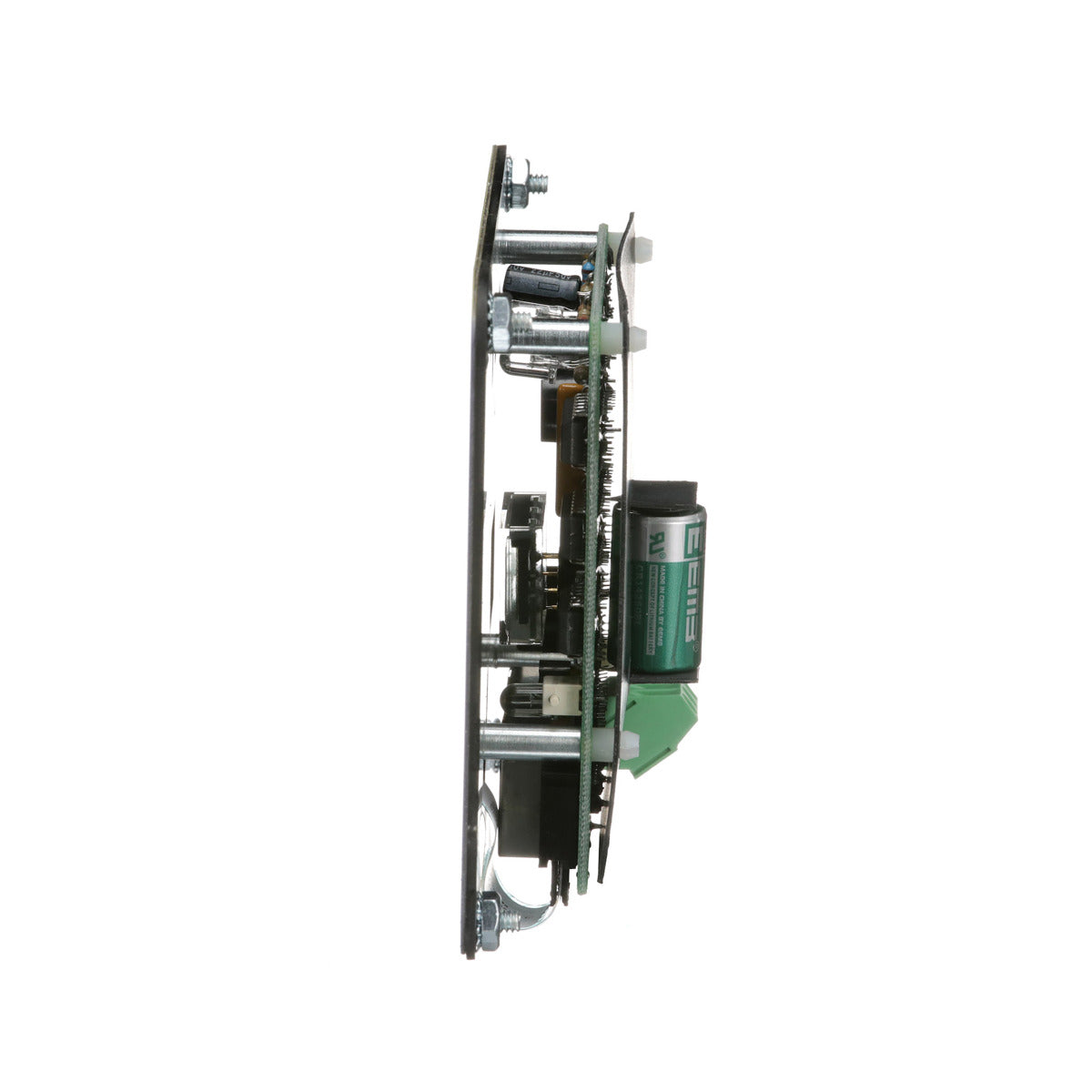

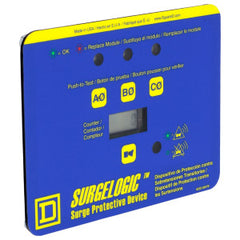

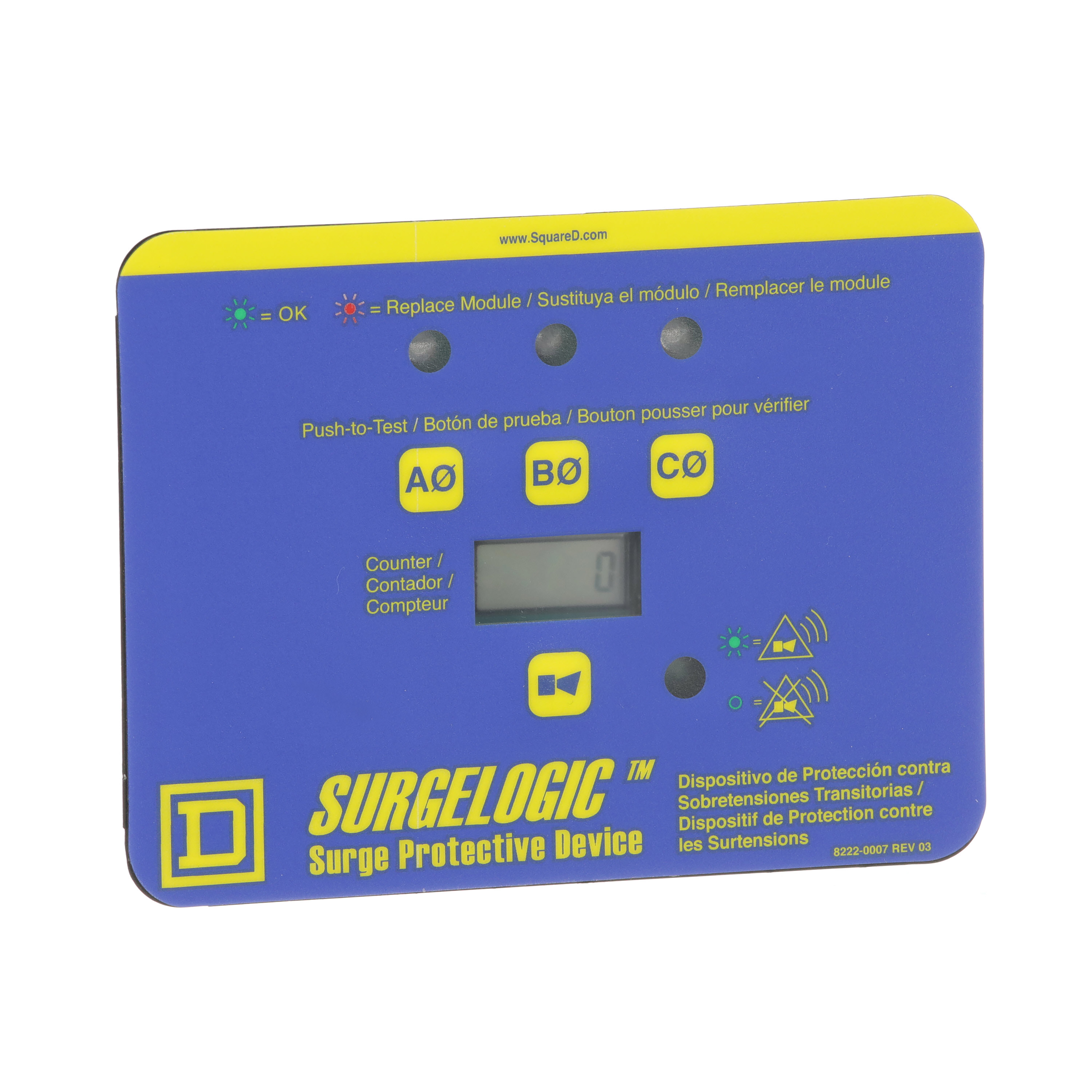

Square D TVS3DSPHC Horizontal Surge Suppressor Diagnostic Display Panel

Product Description

The Square D TVS3DSPHC horizontal surge suppressor diagnostic display panel provides alarm status of the surge protective device up to 1000 feet from the unit. This 3-phase 4-wire device serves as a replacement in panelboards, switchboards, PZ4 switchgear, and busways, with voltage range options from 120V/240 V up to 600Y/347 V and peak surge range as 120 kA to 240 kA. Installation uses RJ45 patch cables.

• Indicator LEDs
• 200 kA SCCR
• Audible alarm with enable/disable switch, dry contacts and surge counter standard

Product Highlights

The TVS3DSPHC surge suppressor diagnostic display panel is ideal for providing alarm status and surge protection in various electrical systems.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: TVS3DSPHC
• Country of Origin: Mexico

Technical Specifications

• Type: DISPLAY KIT
• Brand: Square D
• Voltage: 120 Volt
• Sub Brand: SURGELOGIC
• Applications: SURGE PROTECTION DEVICES
• TC Connection: RJ45 connector bottom
• Number of Phases: 3 Phase
• Catalog Number: TVS3DSPHC
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• System Voltage: 208 Star/120 V 3-Phase 4-Wire, 120/240 V 1-Phase 3-Wire (High Leg Delta), 480 Star/277 V 3-Phase 4-Wire, 347 Star/600 V 3-Phase 4-Wire
• Peak Surge Current/Phase: 120/160/240 Kiloampere
• Application: Busway; PZ4 Switchgear; Panelboard; Switchboard
• Suitable For Use With: Transient Voltage Surge Suppressor Device
• UNSPSC: 39121112
• Voltage Rating: 120/240 V AC-208Y/120 V AC-480Y/277 V AC-600Y/347 V AC
• Phase: 3
• Standard: UL, CSA
• ECCN: EAR99
• Max. Surge Current: 120kA
