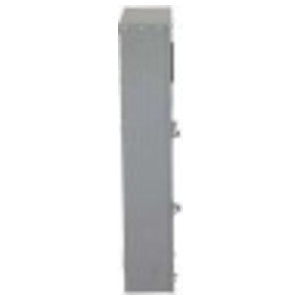

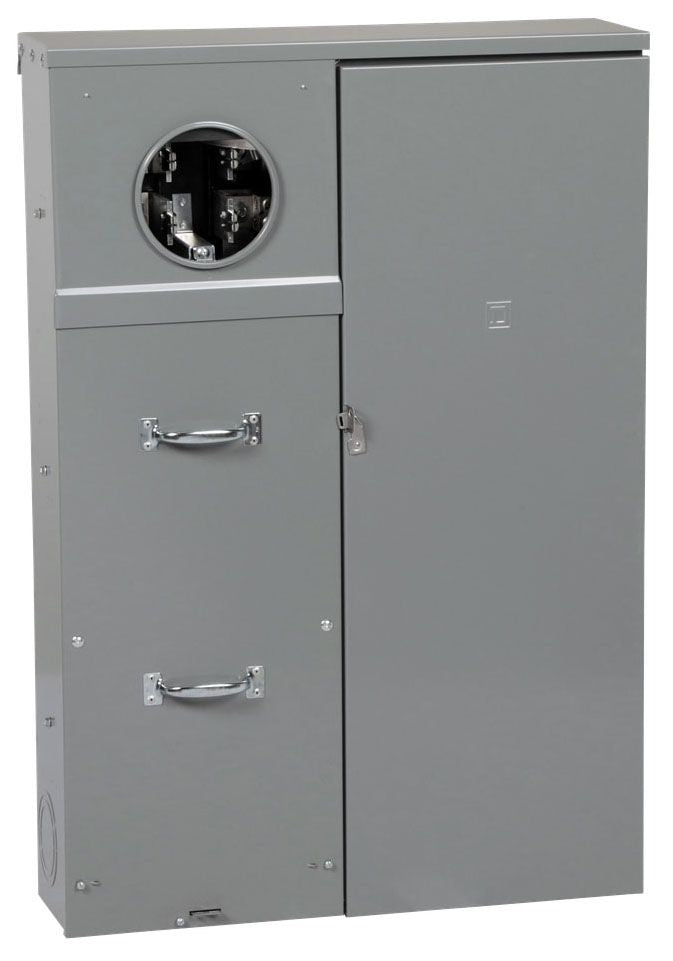

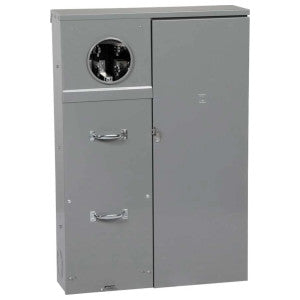

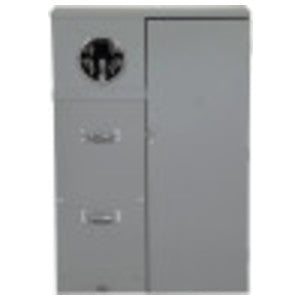

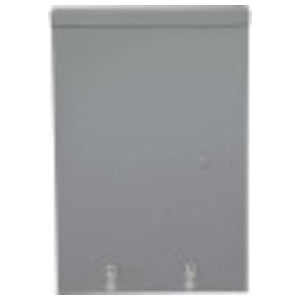

Square D SU3040D400CN : All-In-One Ring Ug 400A

Product Description

Square D SU3040D400CN is an all-in-one ring underground meter socket with a current rating of four hundred amperes. This device is designed for outdoor mounting, ideal for residential use where local codes permit. It supports standard utility meters, offers circuit distribution for up to thirty spaces and forty circuits, and is UL listed for safety.

• Designed for surface mounting
• Includes provision for main disconnect
• Compatible with wire sizes from four AWG to two hundred fifty kcmil

Product Highlights

This model is built for durability and ease of installation with features like a compact design, a factory-installed main breaker, and provisions for both overhead and underground feed. It meets ANSI, NEMA, and UL standards ensuring reliability in power distribution.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Square D Co.

Technical Specifications

• UPC: 78590149140
• Size: 28.25 inches W x 7.5 inches D x 41.25 inches H
• Type: Ring
• Current Rating: 400 amperes
• Voltage Rating: 120/240 VAC
• Service Type: Underground
• Enclosure: NEMA 3R
• Knockouts: (3) (1 inch-1 1/4 inch-2 inch), (2) (3/4 inch-1 inch), (3) 1/2 inch
• Approval: UL
• Wire Size: 4 AWG to 250 kcmil (aluminum/copper, ground)
