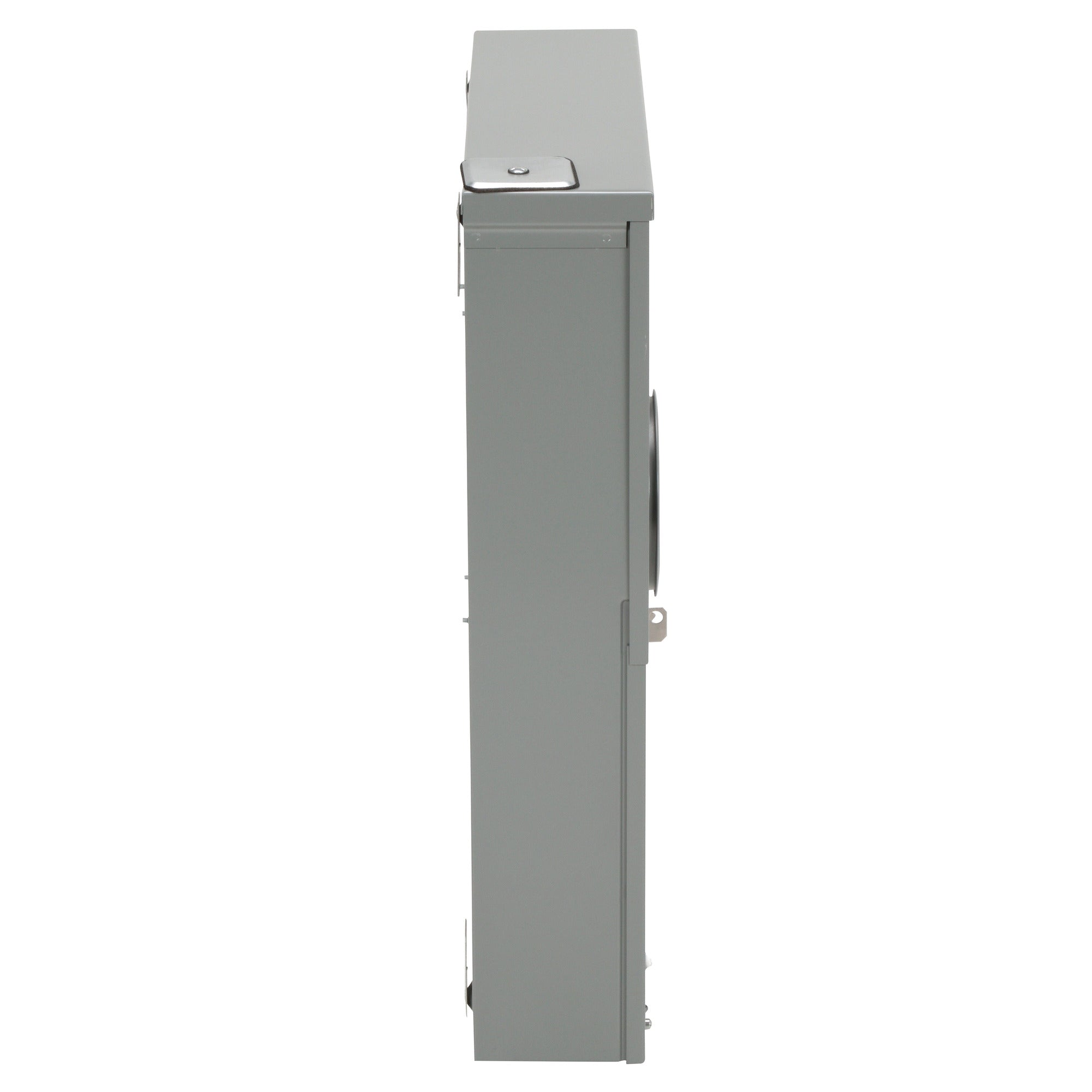

Square D SC12L200S Meter Main Ring Type Surface OH/UG 200A

Product Description

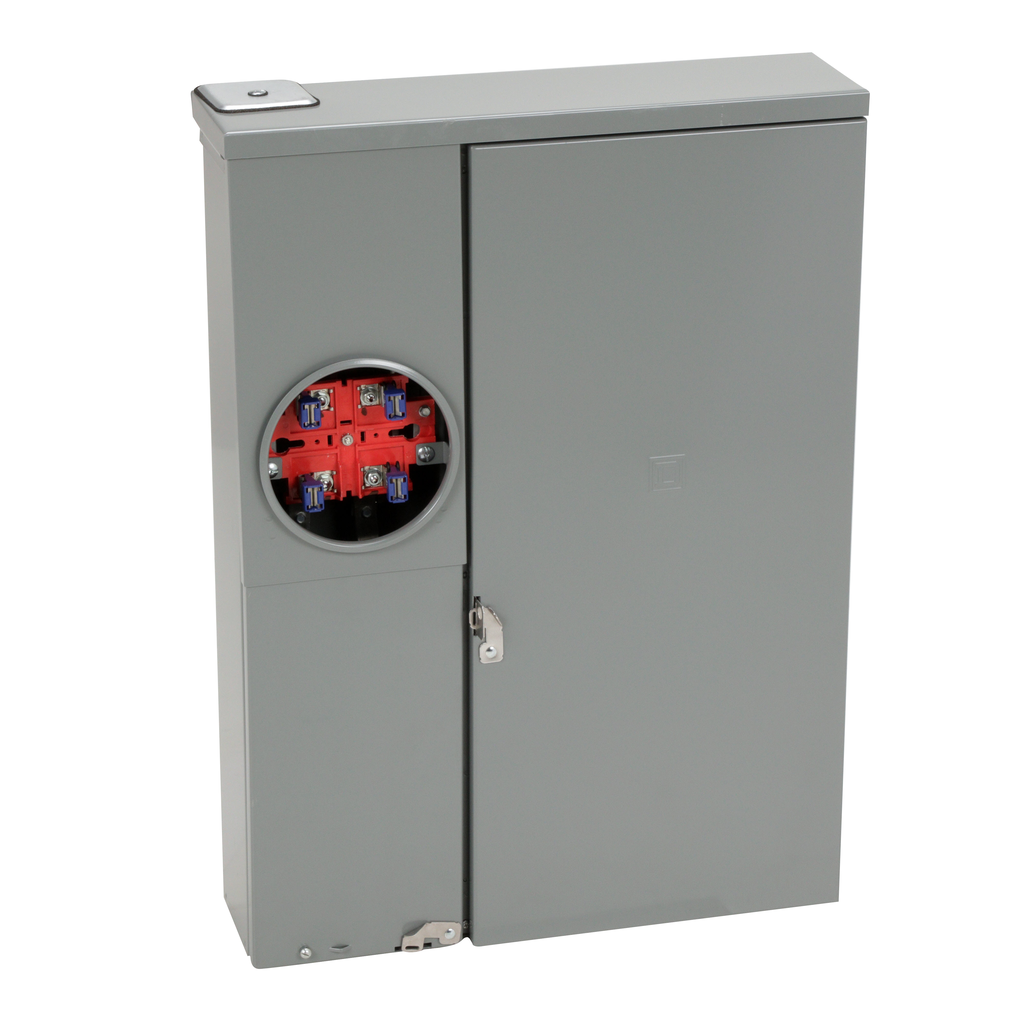

The Square D SC12L200S Meter Main is a reliable combination service entrance device designed for overhead and underground service. This unit features a ringed meter socket without bypass and has a maximum rating of two hundred amps. It accommodates six HOM circuit breakers, which are sold separately.

• Rated for overhead or underground service
• Accepts wire sizes from four AWG to two hundred fifty kcmil
• UL Listed and meets EUSERC standards

Product Highlights

This meter main is equipped with factory-installed service disconnect and fully complies with federal specifications W-P-115c.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: SC12L200S
• Amperage: 200 Amp
• Dimensions: 29.5 inches (H) x 21.5 inches (W) x 5.8 inches (D)
• NEMA Rating: 3R
• Wire Size Compatibility: AWG 4 to 250 kcmil for line side; AWG 8 to 2/0 for service ground
• Short Circuit Current Rating: 10 kA
• Country of Origin: Mexico
• Warranty: 18 months
