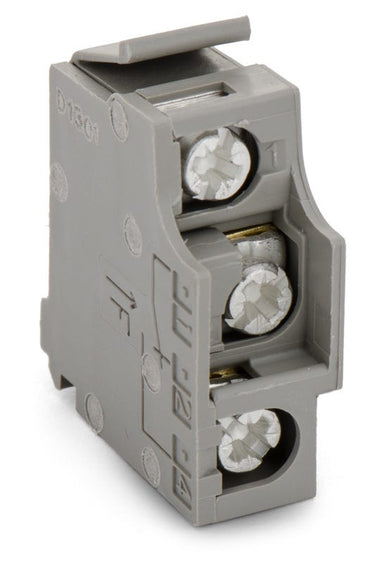

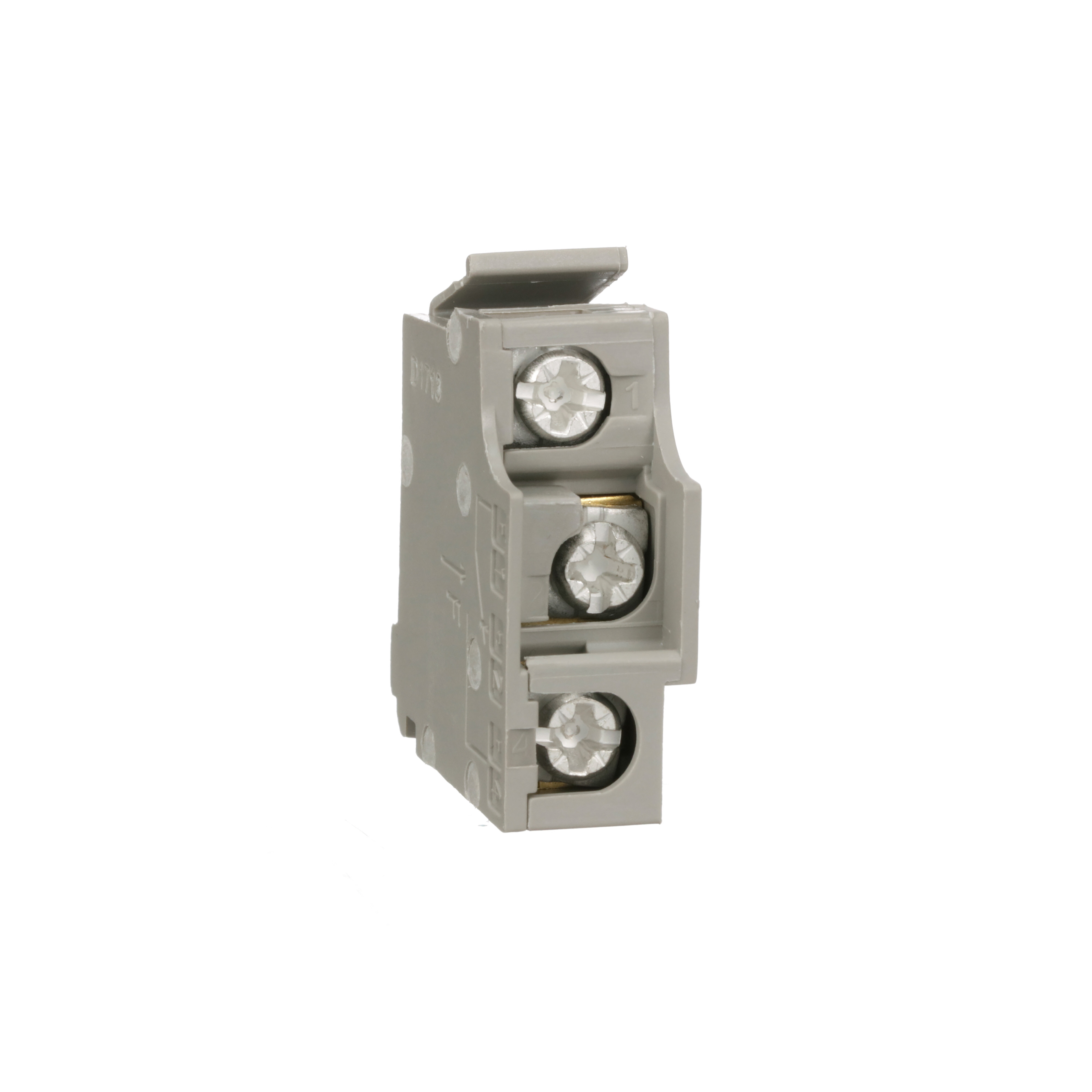

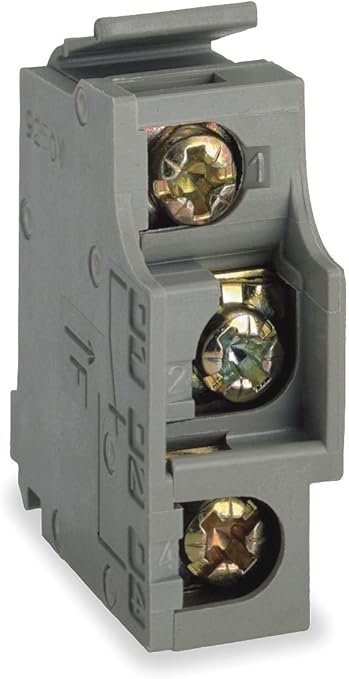

Square D S29450 Circuit Breaker Auxiliary Switch

Product Description

The Square D S29450 is a circuit breaker auxiliary switch. PowerPacT M, P, and R-Frame circuit breakers offer field installable accessories. This part provides auxiliary contacts used in PowerPacT H, J, L, M, P, and R circuit breakers. It has a standard minimum load of 100mA at 24V and complies with UL, CSA, and IEC standards.

• Field installable accessories
• Auxiliary contacts used in PowerPacT H, J, L, M, P, and R circuit breakers
• Standard minimum load of 100mA at 24V

Product Highlights

The Square D S29450 auxiliary switch is for use with PowerPacT circuit breakers and offers field installation.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: S29450
• Country of Origin: USA

Technical Specifications

• Type: Electrical accessory;Auxiliary switch
• Brand: Square D
• Depth: 1.19 Inch
• Width: .496 in
• Height: 1.34 Inch
• Voltage: 600 VAC
• Amperage: 6A
• Sub Brand: POWERPACT
• Applications: Standard
• Certifications: CSA,IEC,NEMA,UL
• Country of Origin: USA
• Circuit Breaker Type: Standard
• Minimum Load: 100mA at 24V
• Standards Compliance: UL, CSA, and IEC
• AC Voltage Rating: 24 V
• DC Voltage Rating: 24 V
• Contact Configuration: 1NO-1NC
• Used On: POWERPACT PG/PJ/PL/RG/RJ/RL Circuit Breaker
• MPN: S29450
• Application: Standard
• Manufacturer: SQUARE D
• Series: PowerPacT
• Approval: UL, IEC, CSA, NEMA
• Frame Type: DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR, MG, MJ, PG, PJ, PK, PL, RG, RJ, RK, RL
• For Use With: DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR, MG, MJ, PG, PJ, PK, PL, RG, RJ, RK, RL Frame Molded Case Circuit Breakers
• Configuration: 1A, 1B
