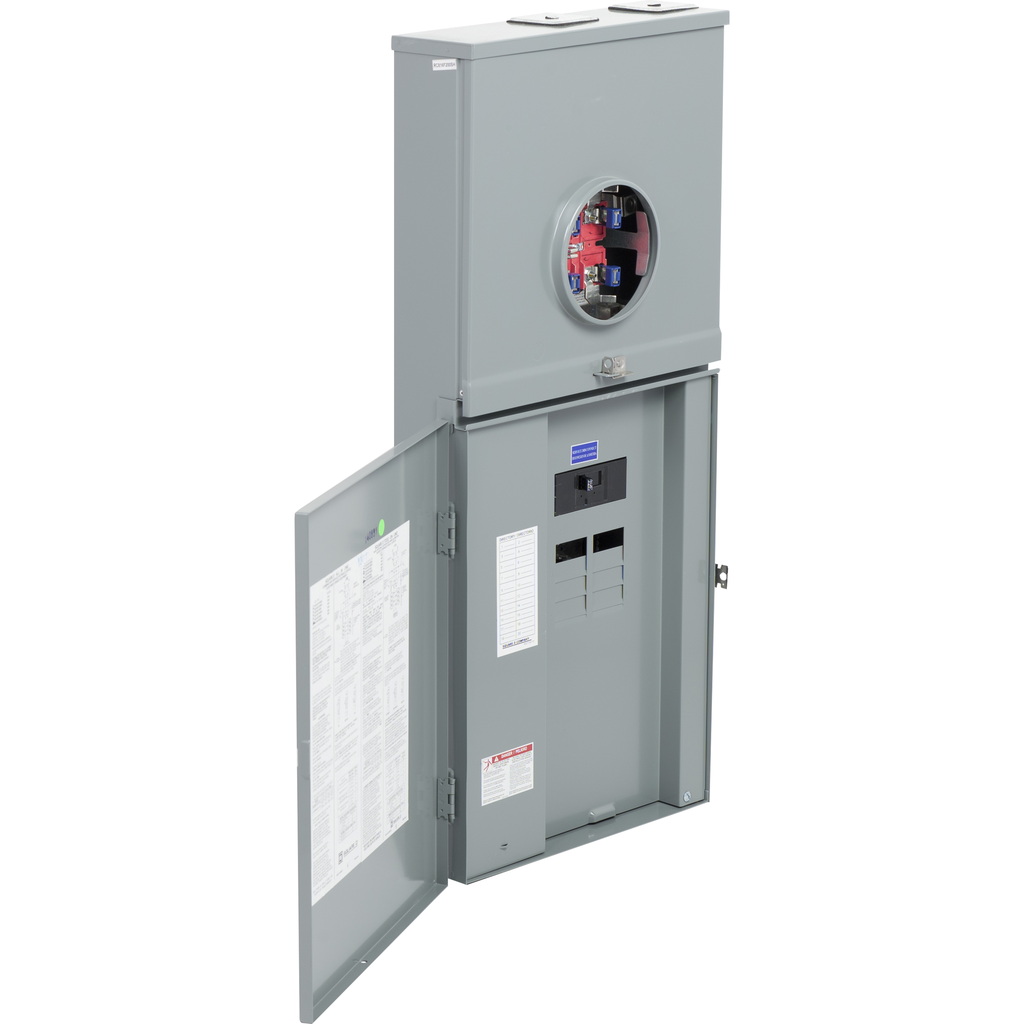

Square D RC816F200SH Meter mains, Homeline 200 Amp 8 Spaces 16 Circuits

Product Description

The Square D RC816F200SH Meter Mains is designed for effective power distribution. This model supports a maximum of eight spaces and allows for up to sixteen circuits. It is constructed for surface mount installation and features a ringless socket design. The unit has a rated current of two hundred amperes, making it suitable for many residential and commercial applications.

• Supports maximum 200 Amp current
• Accommodates 8 spaces with 16 circuits
• UL certified for safety and reliability

Product Highlights

The Square D RC816F200SH effectively combines functionality and safety in one unit, making it ideal for any metering situation. Designed to meet the needs of electricians and contractors, this product ensures reliable power management.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: RC816F200SH
• Type: Meter Mains, Ringless
• Amperage: 200 Amp
• Phase: 1 Phase
• Height: 41.16 inches
• Width: 18.76 inches
• Depth: 5.41 inches
• Country of Origin: Mexico
• Warranty Length: 18 months
