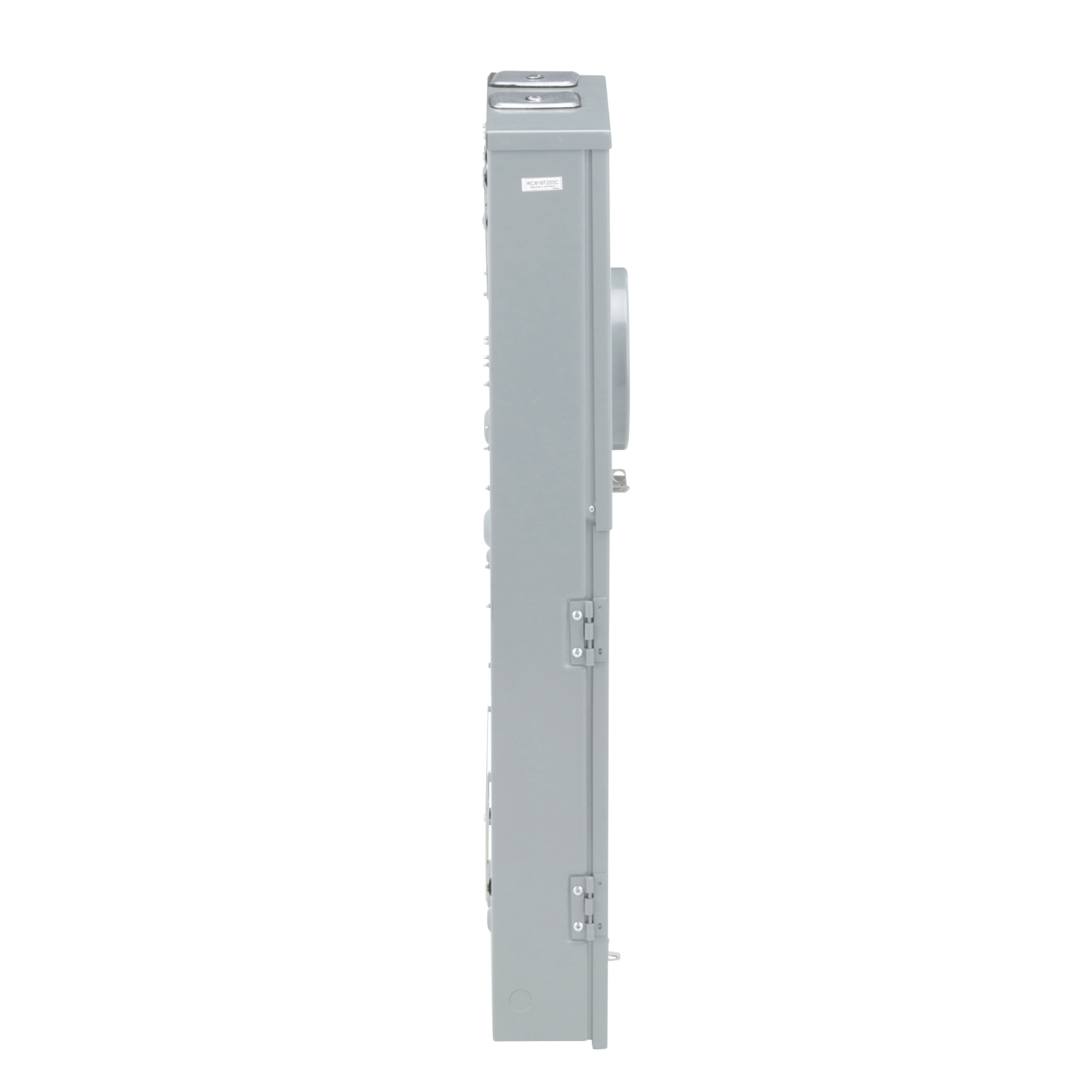

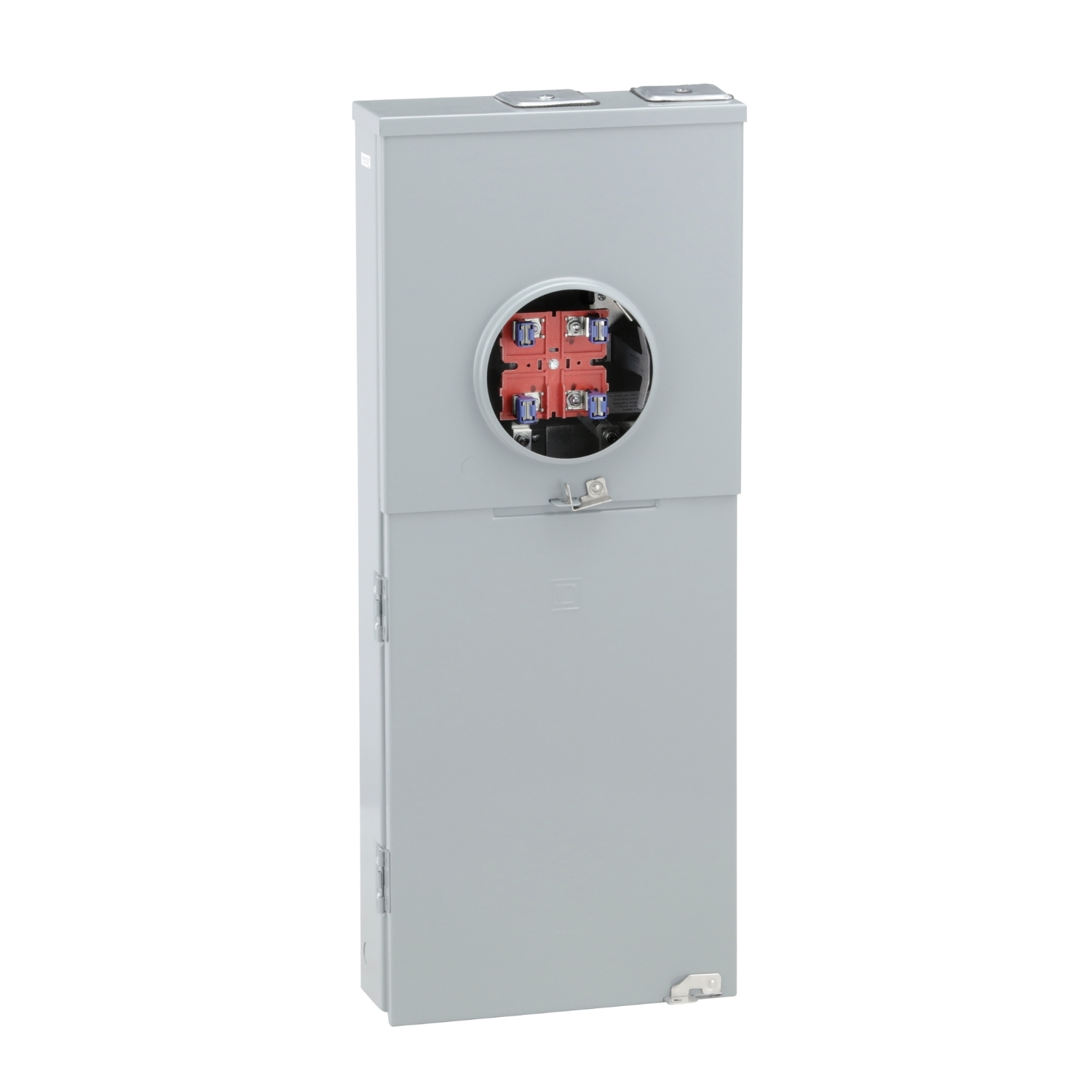

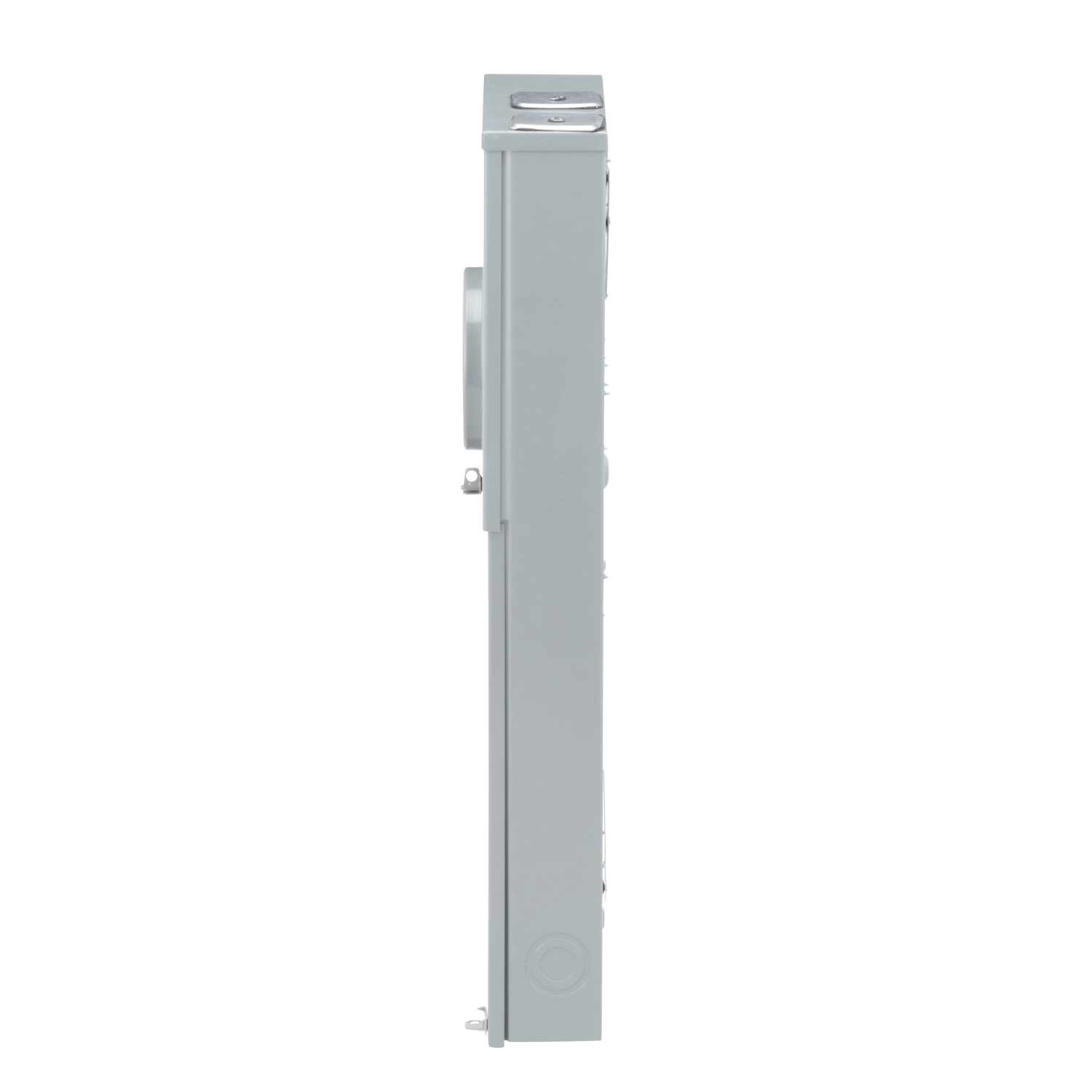

Square D RC816F200C Meter Main 200 Amp Surface Mount No Bypass

Product Description

The Square D RC816F200C is a 200 amp, one-phase, three-wire surface mount meter main. Designed for overhead or underground service, it is a ringless type meter main suitable for multiple applications. This device features a service disconnect with feed-thru lugs and meets federal specifications as Type 1, Class 2. It is UL Listed and intended for use in service equipment.

• Amperage Rating: 200 Amp
• Number of Spaces: 8

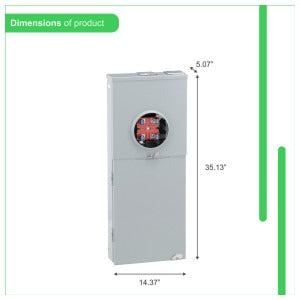

• Dimensions: 14.37 inches wide, 35.13 inches high, and 5.07 inches deep

Product Highlights

This Square D meter main comes with features like a surface mounting option and is convertible for semi-flush installations. The device is manufactured from quality materials to ensure reliability and compliance with industry standards.

Product Information

Standard Information

• Catalog Number: RC816F200C
• Brand: Square D

Technical Specifications

• Product Type: Meter Mains, Ringless
• Depth: 5.07 inches
• Width: 14.37 inches
• Height: 35.13 inches
• Amperage: 200 Amp
• Wire Size: AWG 6 to 350 kcmil
• Number of Circuits: 16
• Short Circuit Current: 22 kA
