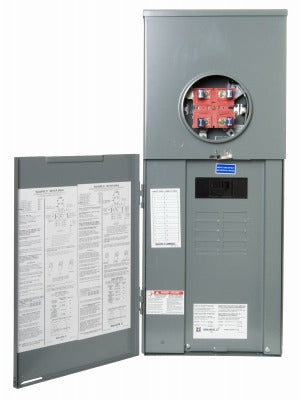

Square D RC816F200C 200A Outdoor Meter Socket Load Center

Product Description

The Square D RC816F200C is a 200-amp Homeline outdoor meter socket main breaker load center designed for use as a combination service entrance device. It features an 8-space, 16-circuit configuration with a ringless meter cover and a single-phase, 4-jaw meter socket. Suitable for both overhead and underground service applications, this unit ships as a single assembly and is built for installation by licensed electricians on residential or light commercial services. It meets EUSERC specifications and carries ANSI certification and UL listing.

This load center is intended for outdoor installations where a combination meter socket and main breaker panel are required in a single enclosure. The integrated ringless meter cover and 4-jaw socket allow utility connection without a separate meter base. It accepts Homeline series breakers only, making it a direct-fit solution for new construction or service upgrade projects where Homeline branch circuits are specified. Both overhead and underground service entry configurations are supported, providing flexibility for varying site conditions.

Key Features

• 200-amp main breaker rating for residential or light commercial service entrance use
• 8-space, 16-circuit capacity for branch circuit distribution
• Ringless meter cover with single-phase, 4-jaw meter socket for direct utility connection
• Compatible with overhead or underground service entry configurations
• Meets EUSERC specifications for utility acceptance in applicable regions
• ANSI certified and UL listed
• Accepts Homeline series breakers only

Compatibility

Designed for use with Homeline series breakers only. Functions as a combination service entrance device for single-phase residential or light commercial electrical services.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Verify utility requirements and EUSERC compliance for the service territory before installation. De-energize the service entrance and coordinate with the utility provider before connecting the meter socket. Do not install non-Homeline breakers in this enclosure.
