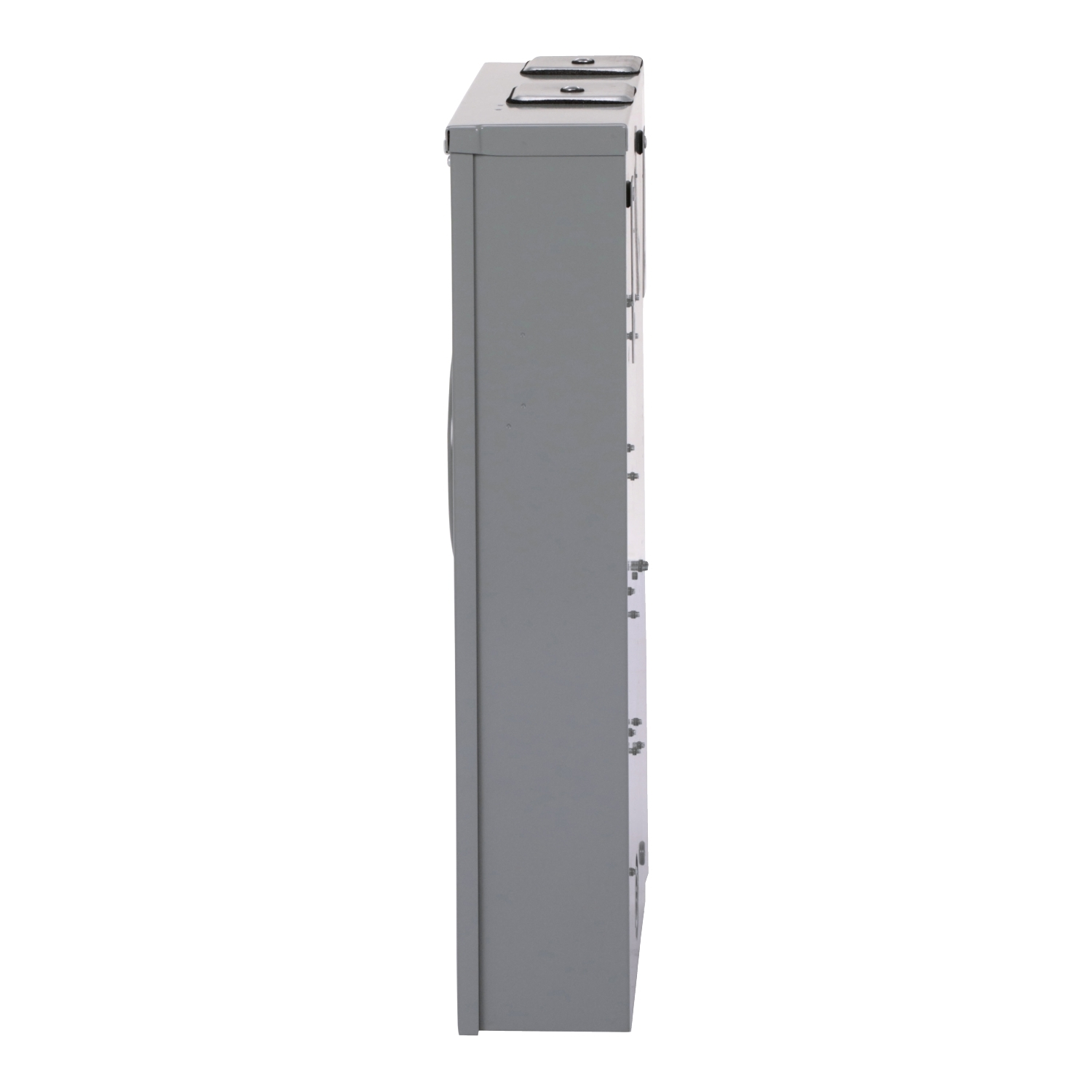

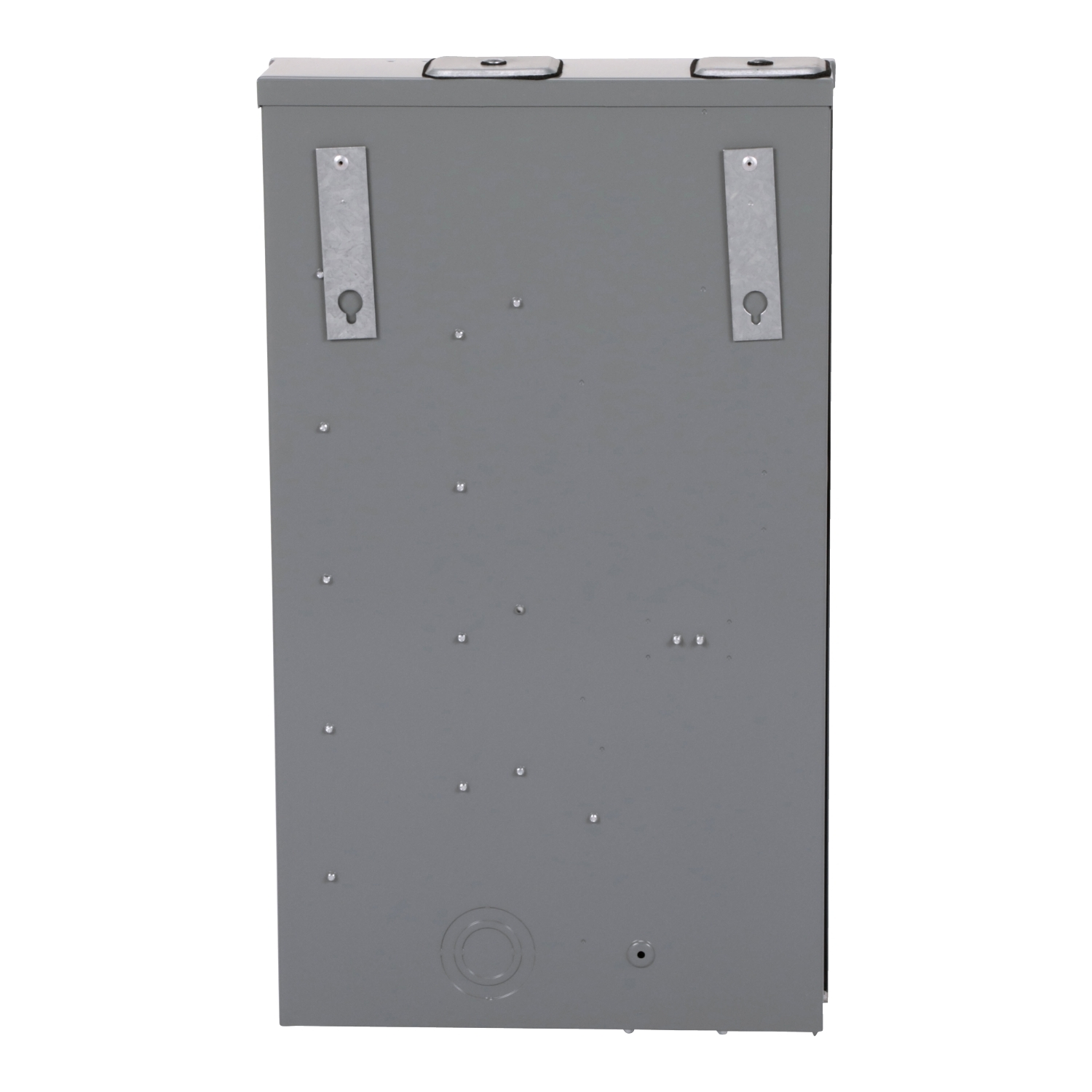

Square D RC1624M100S All-In-One 100 Amp

Product Description

The Square D RC1624M100S is a Homeline ringless single phase All-In-One designed for residential use where local codes allow main breaker load centers to be mounted outdoors. It provides a meter socket for a standard utility meter, a main disconnect, and load center distribution for 16 spaces and 24 circuits. This surface mounted device has a UL listed rated current of 100A and a short-circuit current of 10kA.

• Provides a meter socket that supports a standard utility meter, a main disconnect and load center distribution for 16 spaces and 24 circuits
• Factory installed main breaker, compact design, overhead and or underground feed, bypass type, wiring room with 6.5inch deep enclosures
• Meets Federal Specifications W-P-115C for government housing and the Electric Utility Service Equipment Requirements Committee (EUSERC) standards

Product Highlights

The Square D RC1624M100S is ideal for easy installation with knockouts above the top right-side wire gutter for easy exit for load center wires.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: RC1624M100S
• Country of Origin: Mexico

Technical Specifications

• Type: ALL-IN-ONE,RINGLESS
• Brand: Square D
• Depth: 5.55 Inch
• Width: 14.77 in
• Height: 27 Inch
• Amperage: 100 Amp
• Sub Brand: HOMELINE
• Wire Size: 6 to 2/0 AWG Aluminum/Copper Wire
• Cable Entry: OH-UG
• Mounting Type: Surface
• Conductor Size: 6-2/0 AWG
• Number of Spaces: 16
• Line Rated Current: 100 A
• Number of Circuits: 24
• Short Circuit Current: 10 kA
• Catalog Number: RC1624M100S
• Manufacturer: Schneider Electric
• Bypass Type: No Bypass
• Main Disconnect Type: 100 Ampere Interrupting Rating Circuit Breaker
• Service Type: Overhead/Underground
• Circuit Configuration: 1-Phase 3 Wire
• Voltage Rating: 120/240 VAC
• Current Rating: 100 Ampere
• Enclosure: NEMA 3R
• Wire Size (Ground): 6 to 2/0 AWG (Aluminum/Copper)
• Wire Size (Line): 6 to 2/0 AWG (Aluminum/Copper)
• Approval: UL
• Range Of Product: Homeline
• Product Or Component Type: All-In-One
• Hub Type: A
• Meter Socket Type: ringless
• Branch Circuit Breaker Rated Current: 100 A
• Service Feed Location: OH || UG
• Bus Rated Current: 125.0 A
• Electrical Connection: lugs, line side || lugs, service ground
• Number Of Tandem Circuit Breakers: 8
• Service Disconnect Rated Current: 100 A
• Awg Gauge: AWG 6...AWG 2/0 (aluminium) line side || AWG 6...AWG 2/0 (copper) line side || AWG 6...AWG 2/0 (aluminium) service ground || AWG 6...AWG 2/0 (copper) service ground
• Device Composition: service disconnect (factory installed)
• Device Mounting: surface
• Operating Temperature: 0 to 40 degrees Celsius
• Storage Temperature: 0 to 50 degrees Celsius
• Voltage: 120/240 V AC
• Phase: 1 Phase
• Circuits: 16-Circuit
• Spaces: 24-Space
• Feed: Overhead/Underground
• Cover: Ringless Cover
• Terminal: Line/Service Ground Lug Terminal
• Mounting: Surface Mounting
• Series: Breakers
• Product: All-In-One Module
• Spare Part/Accessory: Yes
• Meter Socket: Ringless Socket
• Line Current: 100A
• Surface Mounting: Supported
• Tandem Breakers: 8 Breakers
• Electrical Connection Option: Lugs
• Bus Current: 125A
