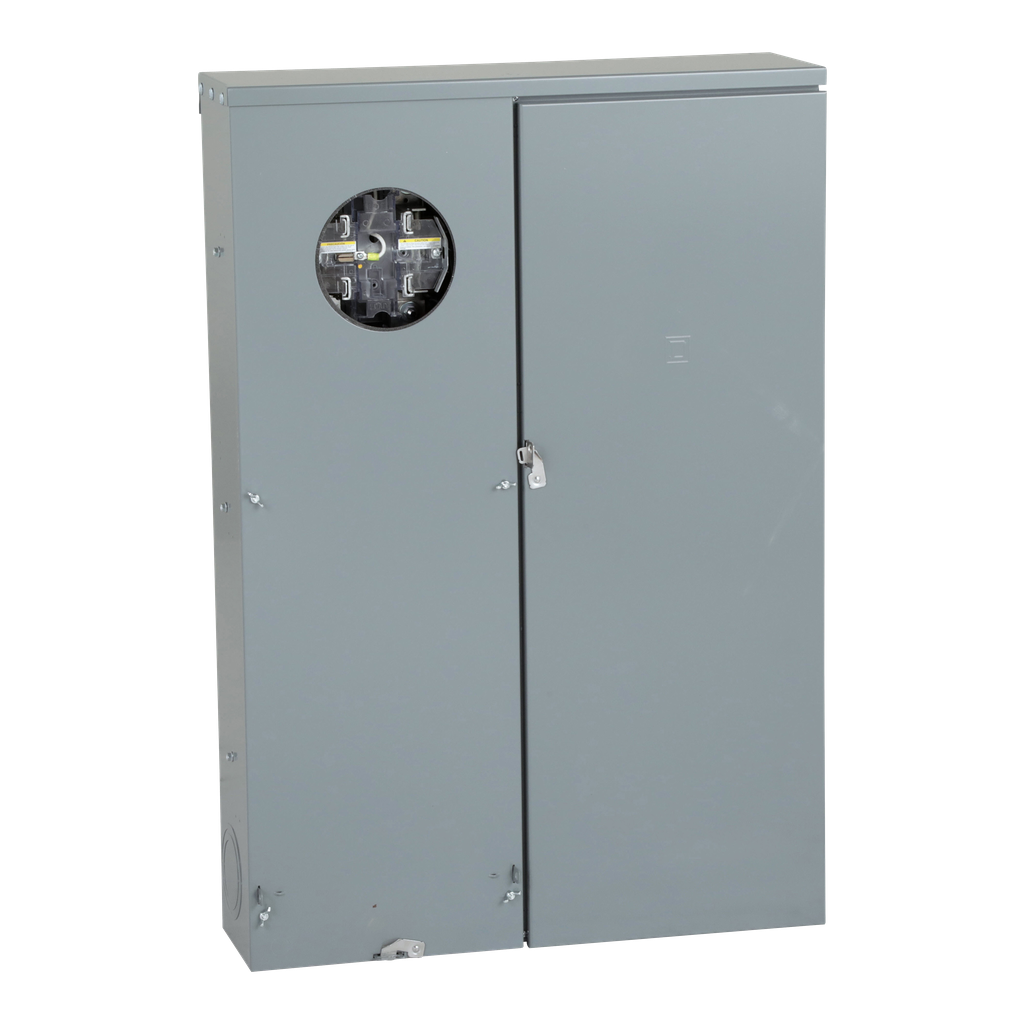

Square D QU816D400CL Meter Main 400 Amp Ringless

Product Description

Square D Meter Main QU816D400CL is a single phase power distribution panel designed for residential use. It complies with local codes requiring service disconnects outside the building. This meter socket supports a standard utility meter along with a main disconnect breaker, creating a space-efficient solution for electricians and contractors. The device can be surface or semiflush mounted and features provisions for convenient field installation of service disconnects that direct power to downstream devices.

This unit is a QO ringless type, rated for four hundred amps, with a short circuit current rating of twenty-five kA. The design also includes a lever bypass and underground feed. Compatible interior subfeed load centers work well with this product, while the main lug interior option is also available. It meets standards set by the Electric Utility Service Equipment Requirements Committee (EUSERC) and Federal Specifications W-P-115C for government housing.

• 400 Amp current rating
• Short circuit current rating of 25kA
• Compliant with EUSERC and Federal Specifications

Product Highlights

This Meter Main is ideal for projects requiring outdoor service disconnects, ensuring compliance with local regulations.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QU816D400CL
• Number of Phases: 1 Phase
• Amperage: 400 Amp
• Voltage: 120/240 VAC
• Height: 43 inches
• Width: 28.25 inches
• Depth: 7.87 inches
• Wire Size: AWG 4...250 kcmil aluminium; AWG 4...250 kcmil copper
