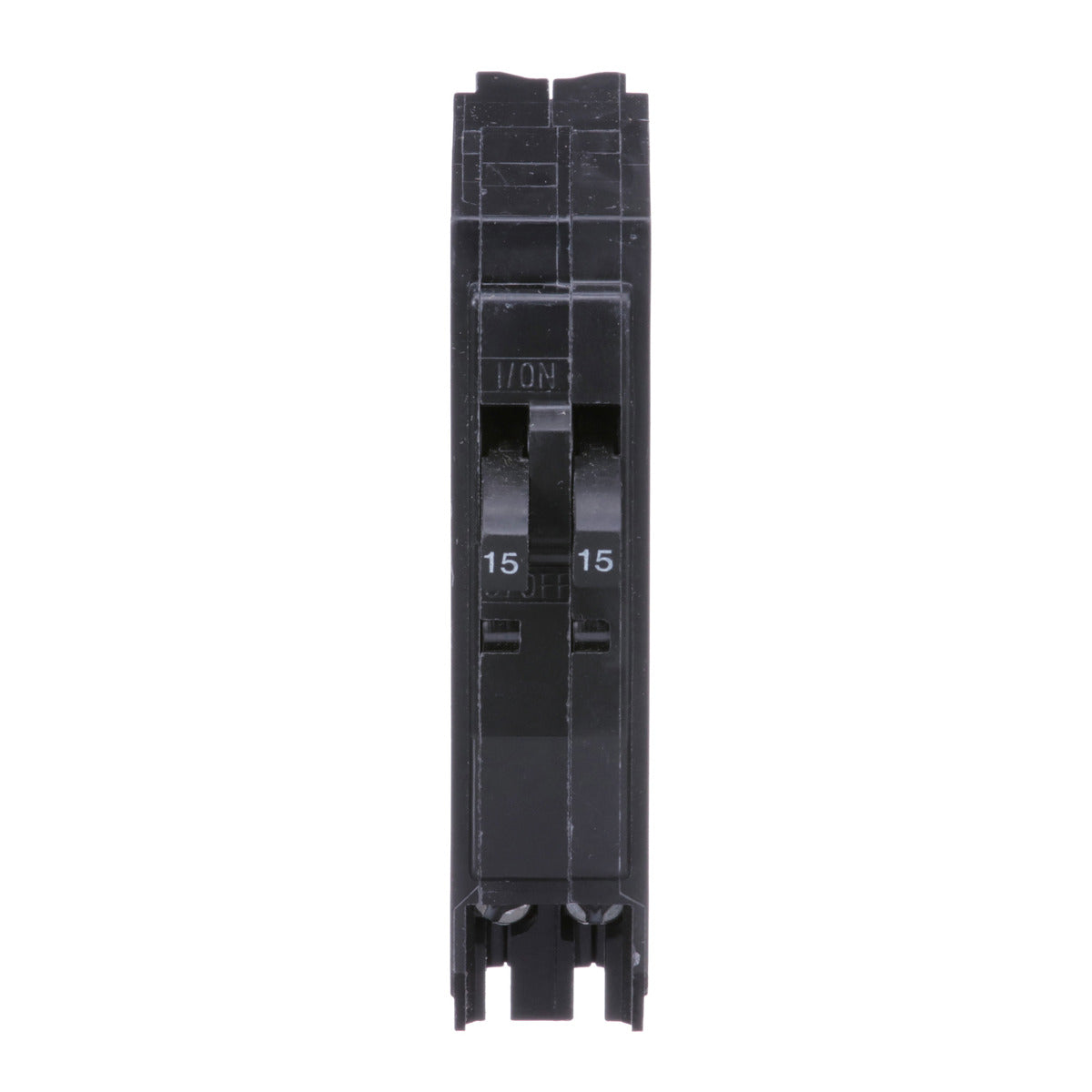

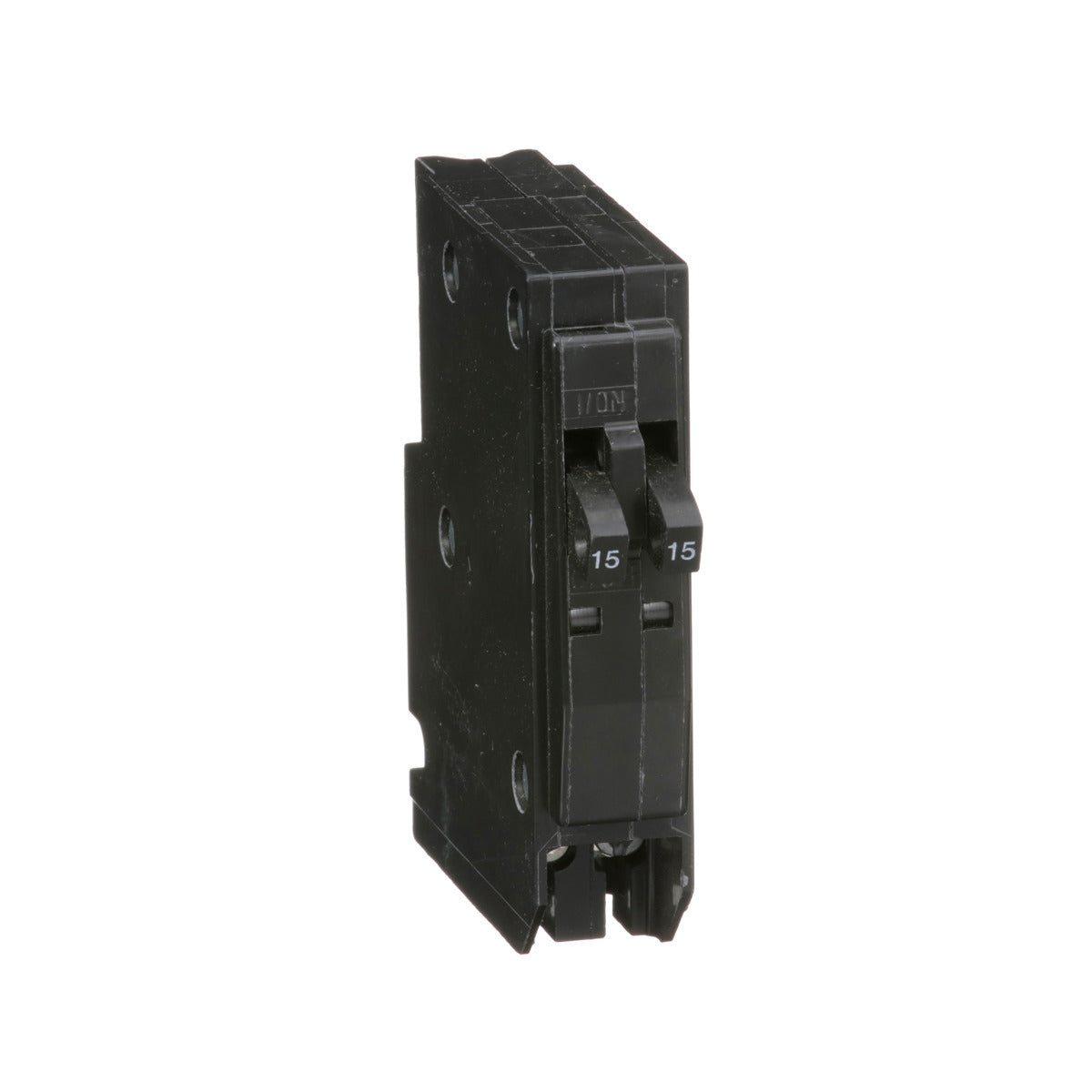

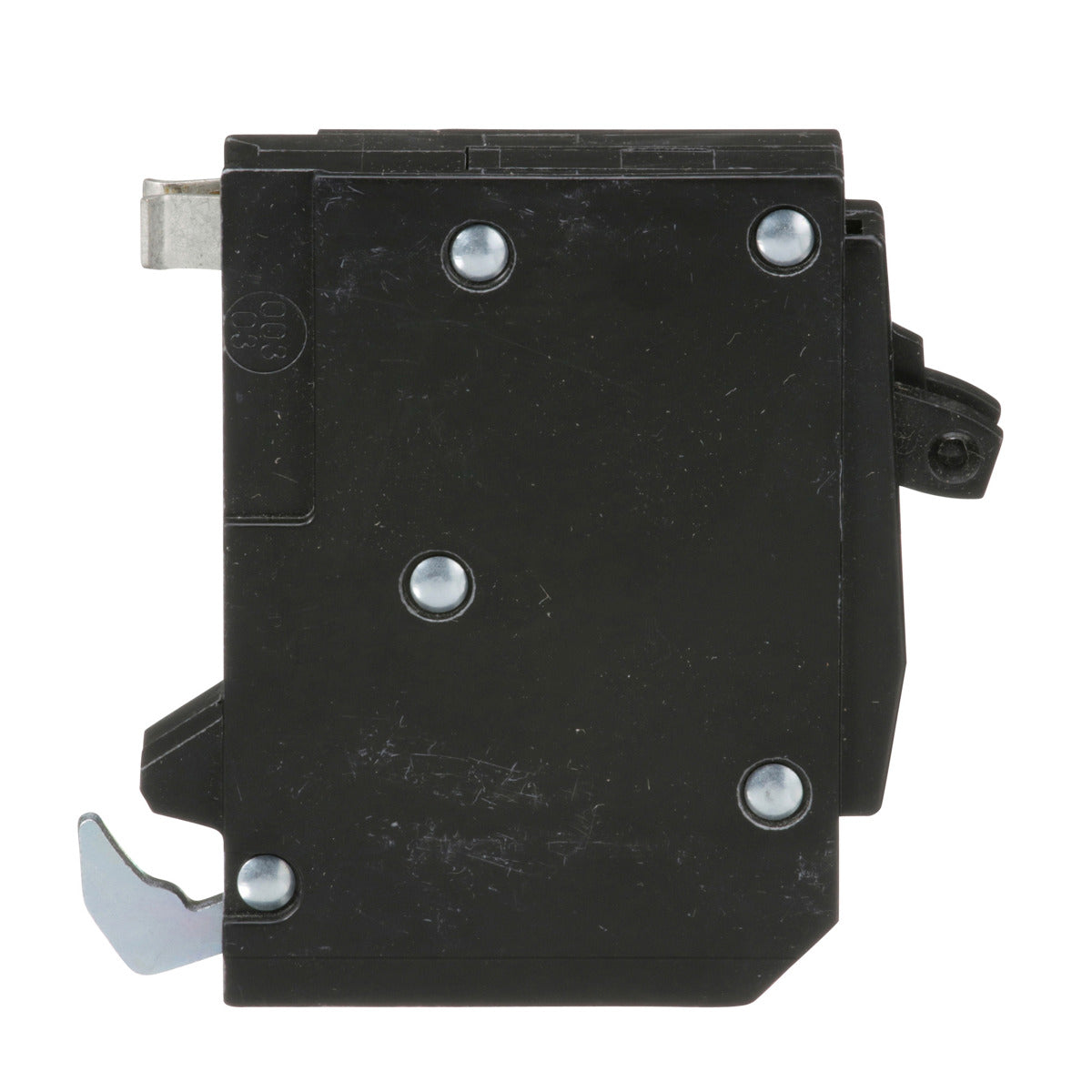

Square D QOT1515 Miniature Circuit Breaker 15A/15A 120/240V 1Ph

Product Description

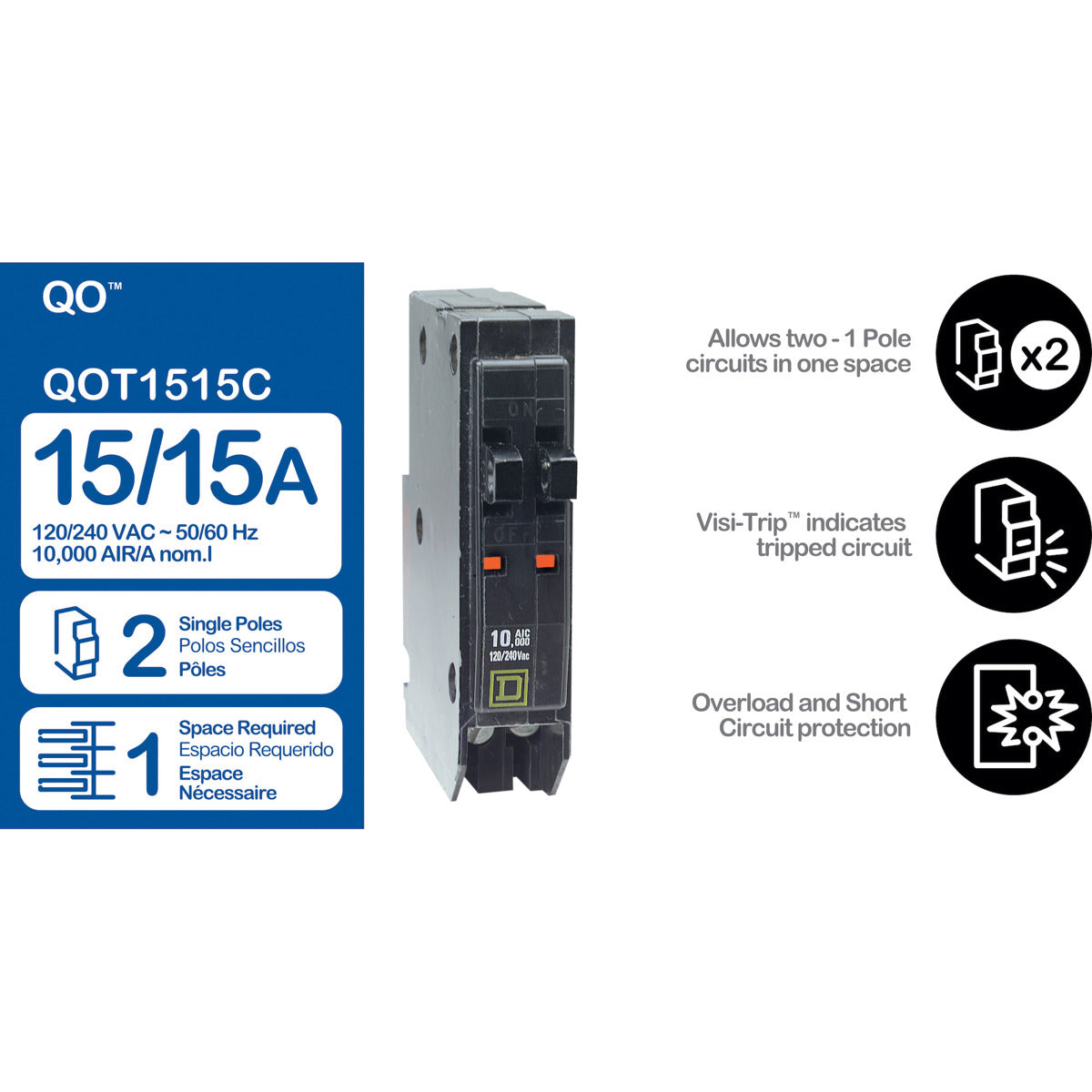

The Square D QOT1515 is a tandem circuit breaker, ideal for overcurrent protection in both AC and DC electrical systems. This device features two poles rated for 15 amperes at 120/240 volts. It is designed for plug-on mounting in compatible circuit breaker panels.

• Overcurrent protection: Prevents overloads and short-circuits.
• Quick-make, quick-break mechanism: Ensures reliable operation.
• Visual trip indication: Notifies of circuit interruption.

Product Highlights

This circuit breaker includes a trip-free toggle mechanism, allowing it to stay on during a fault condition and also features a notable breaking capacity of 10 kA. The device accommodates wire sizes ranging from AWG fourteen to AWG eight for copper and AWG twelve to AWG eight for aluminum.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: QOT1515
• Current Rating: 15 Amp
• Voltage: 120/240 Volt
• Interrupt Rating: 10 kA
• Number of Poles: 1 Pole
• Mounting Type: Plug-in
• Height: 3.22 inches
• Width: 0.75 inch
• Depth: 2.91 inches
• Country of Origin: Mexico
• Certifications: UL listed, CSA certified
