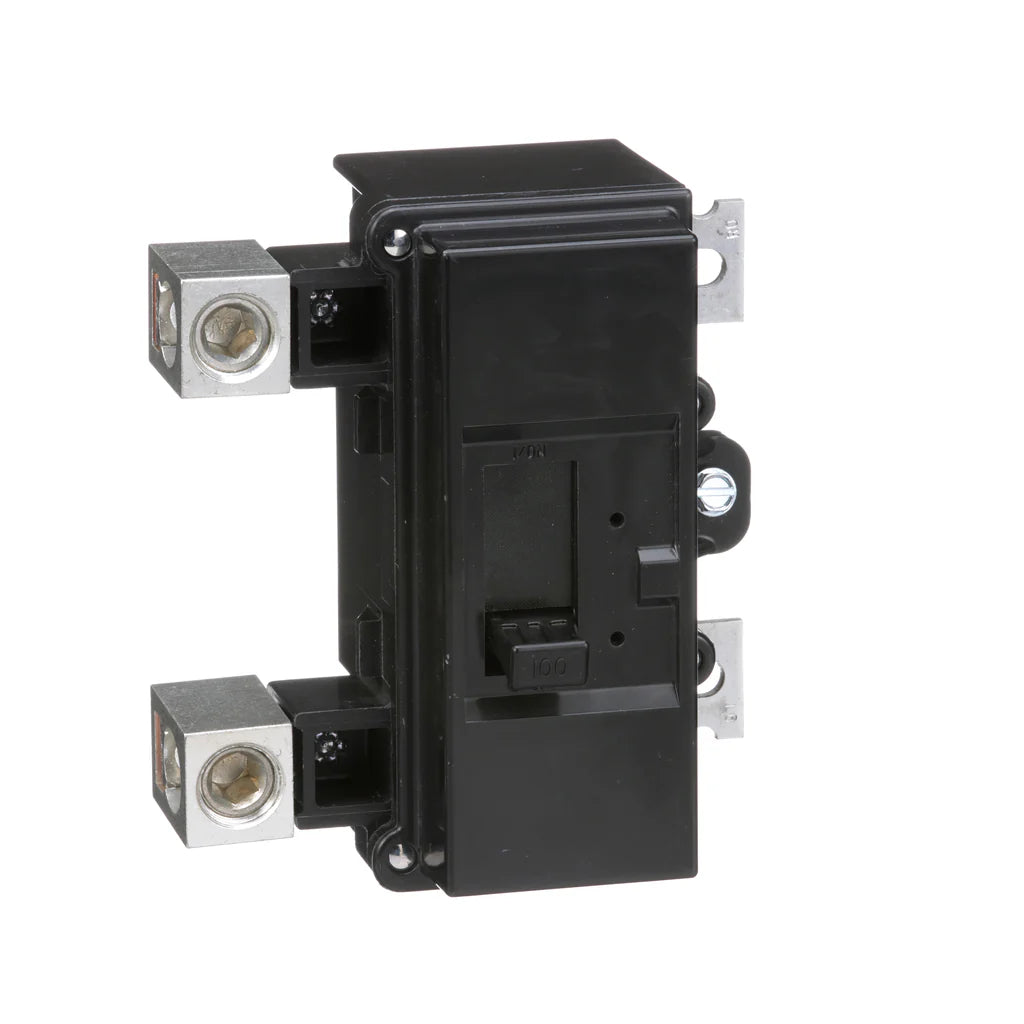

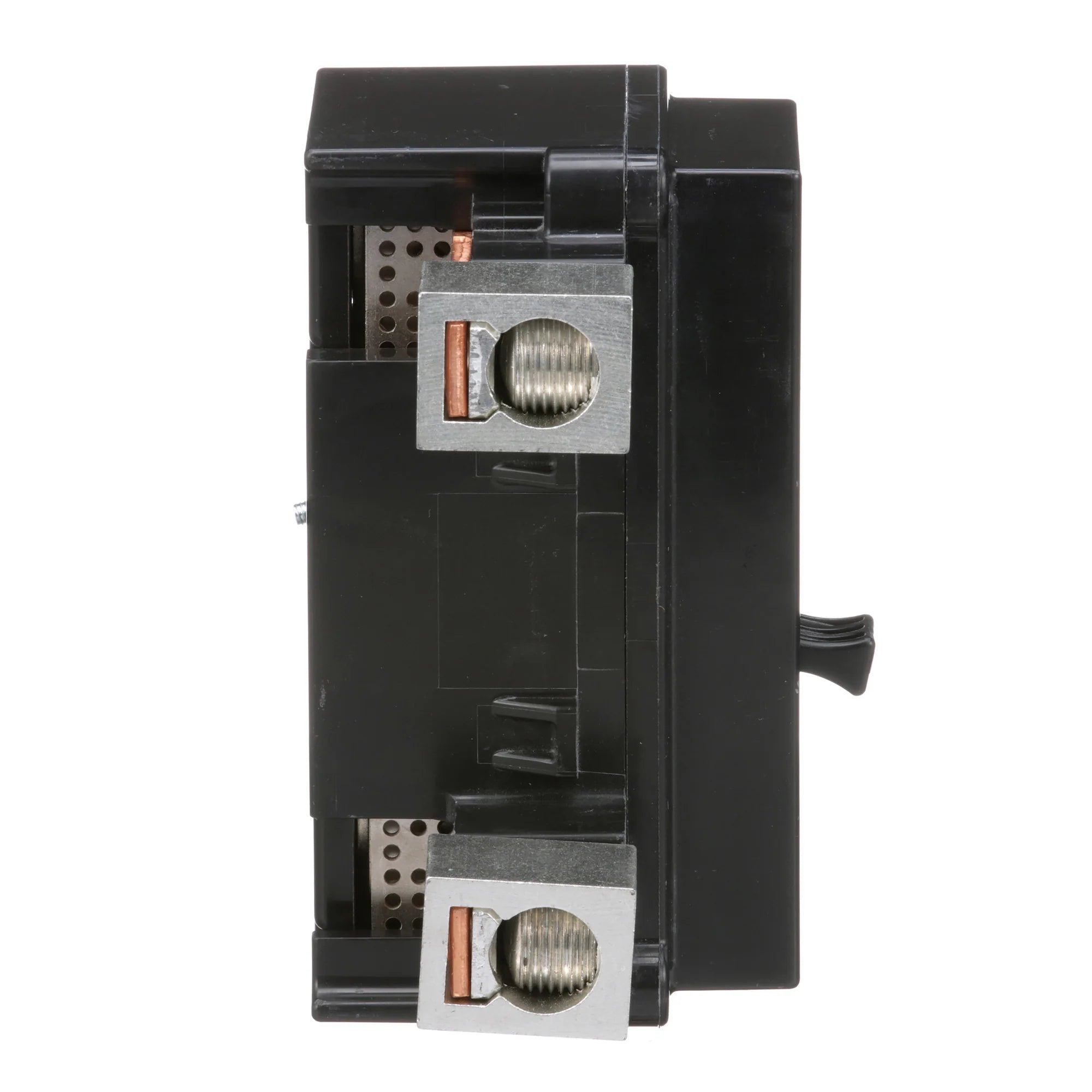

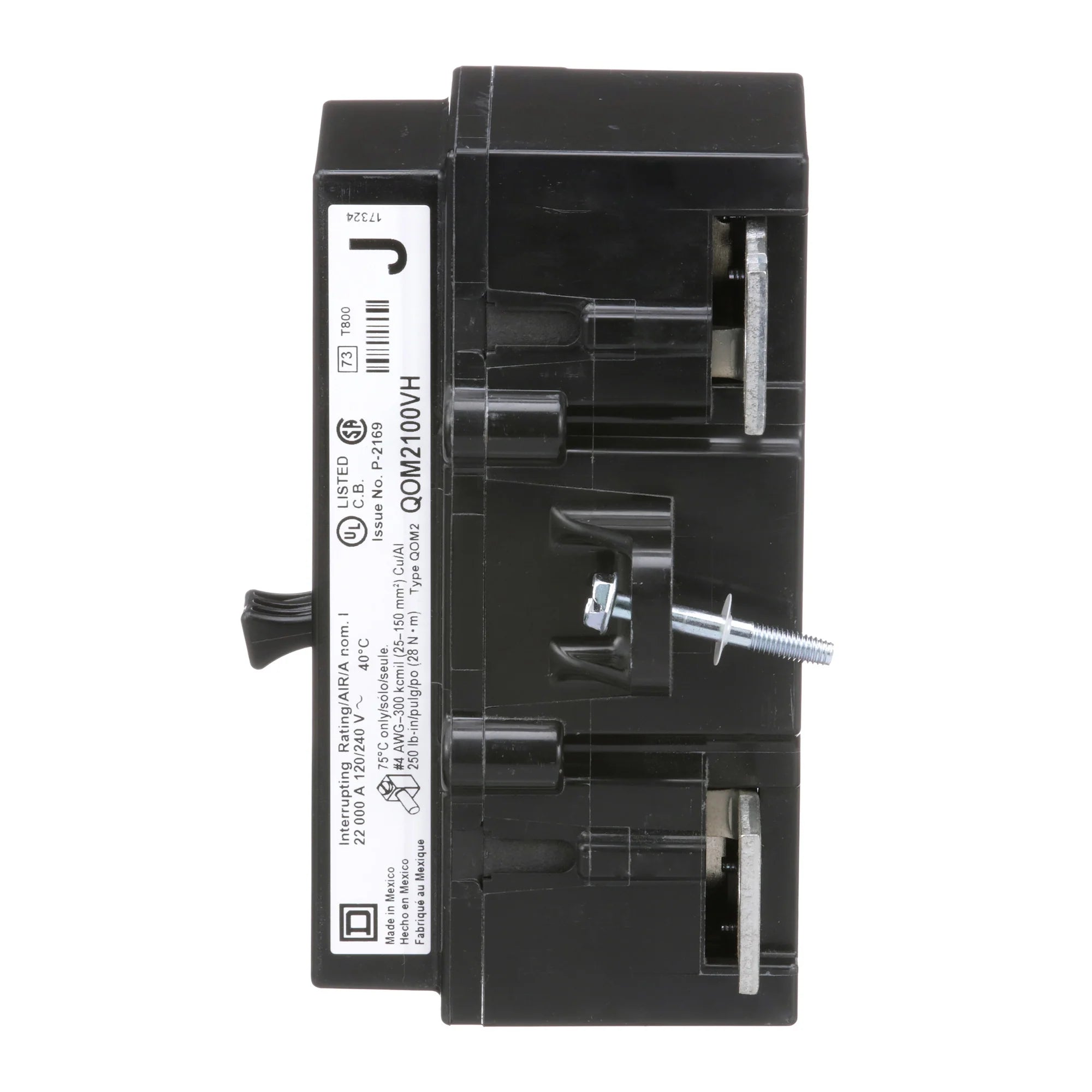

Square D QOM2100VH Main Circuit Breaker 100A 120/240V 1Ph 2P

Product Description

The Square D QOM2100VH is a main circuit breaker from Schneider Electric, designed to provide reliable overcurrent protection in electrical systems. This model features a thermal magnetic operation with a 100 Amp rating and is suitable for 120/240 Volt applications. The design includes a trip-free toggle mechanism that ensures quick make and break action, enhancing safety and efficiency.

• Rated for 100 Amps at 120/240 Volts
• Two-pole configuration with bolt-on mounting
• UL listed and CSA certified for safety and compliance

Product Highlights

This circuit breaker offers VisiTrip trip indication for easy status checking. It is compatible with QO load centers and comes with accessories like shunt trips and auxiliary switches.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QOM2100VH
• Type: Circuit Breaker
• Amperage: 100 Amp
• Voltage: 120 Volt
• Number of Poles: 2 Pole
• Breaking Capacity: 22 kA
• Mounting Type: Bolt-on
• Height: 142 mm
• Width: 91 mm
• Depth: 129 mm
• Net Weight: 1.210 kg
