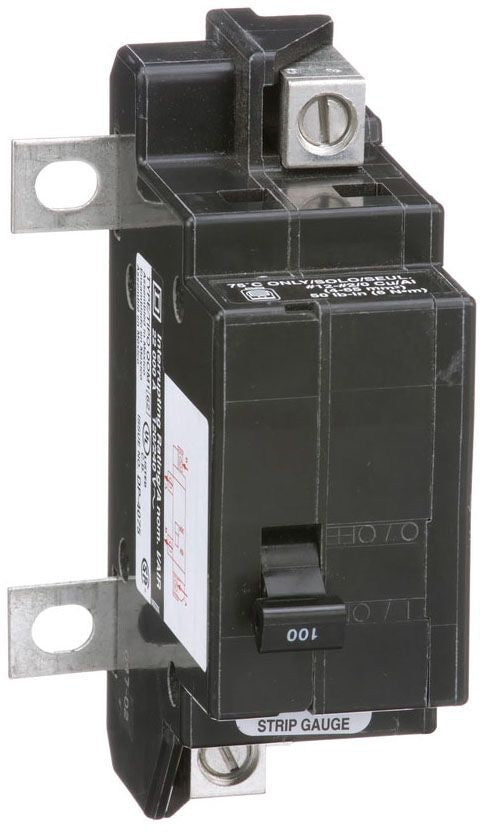

Square D QOM100VH Miniature Circuit Breaker 120/240V 100A

Product Description

The Square D QOM100VH is a miniature circuit breaker designed for use in residential and commercial applications. It operates on a voltage of 120/240V and has a current rating of 100A. Ideal for QO load centers, this breaker provides safe and reliable overcurrent protection.

• Rated at 100A current capacity
• Suitable for 120/240V AC systems
• Bolt-on mounting for easy installation

Product Highlights

This circuit breaker includes a 22 kA interrupting rating, enhancing its ability to handle fault conditions. It features a push-to-reset toggle switch and a visual trip indication through the VisiTrip feature.

Product Information

Standard Information

• Brand: Square D Co.
• Model: QOM

Technical Specifications

• UPC: 78590100403
• Wire Size: 4 to 2/0 AWG (Copper/Aluminum)
• Size: 5 inches width x 3.47 inches depth x 5.09 inches height
• Approval: UL, CSA
• Mounting: Bolt-On
• Current Rating: 100A
• Voltage Rating: 240V AC
• Interrupting Rating: 22 kA
• Number of Poles: 2
• Terminal Type: Box Lug
• Catalog Number: QOM100VH
