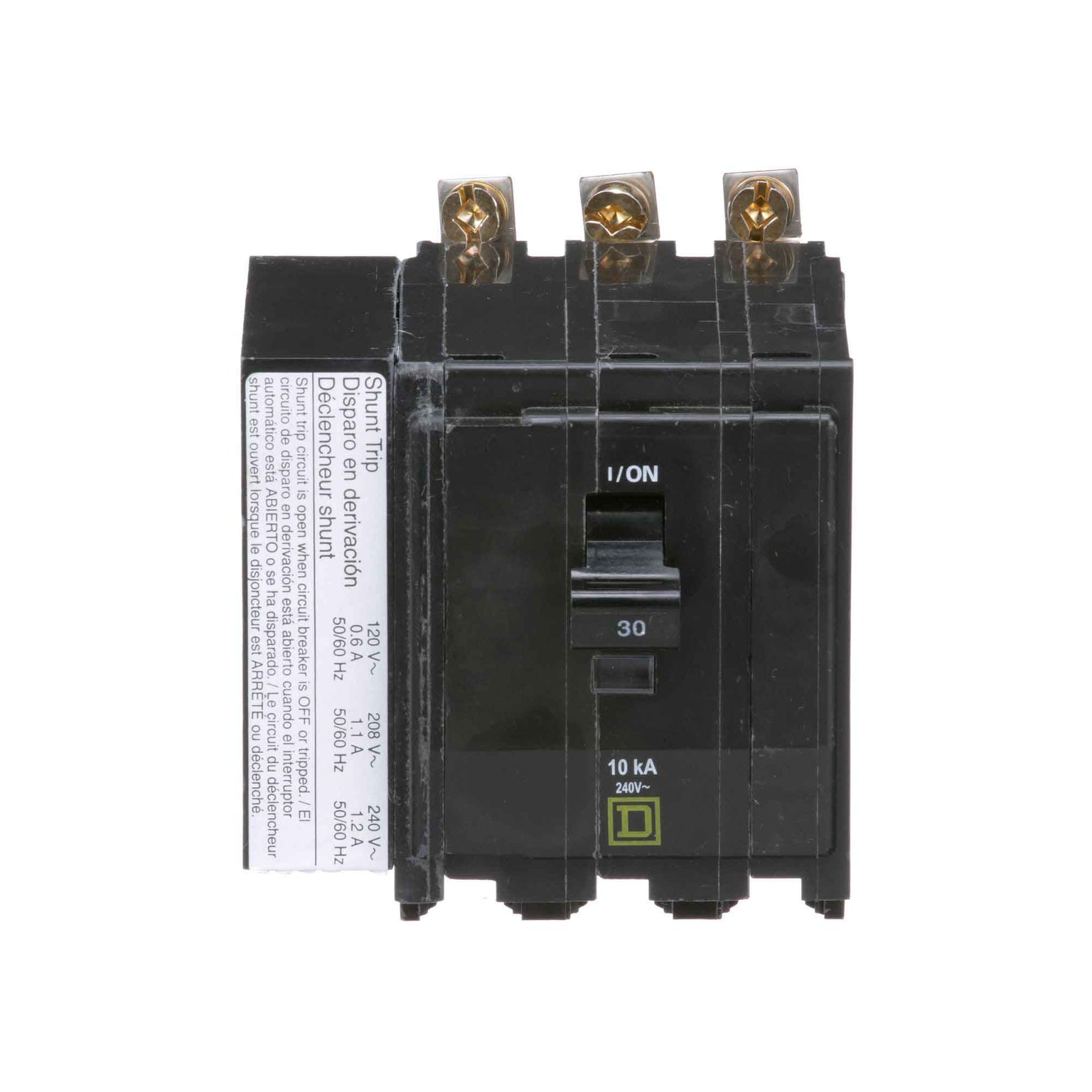

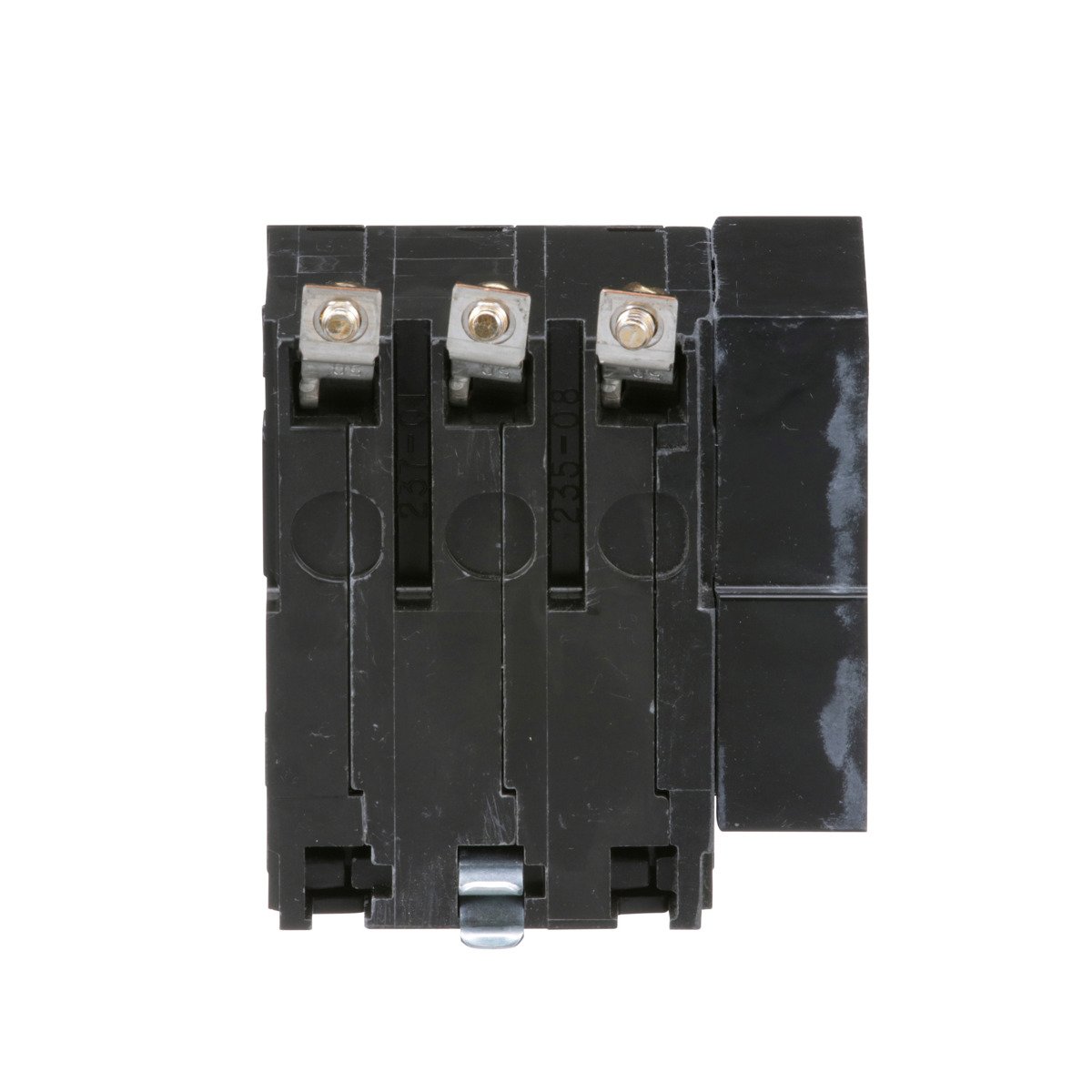

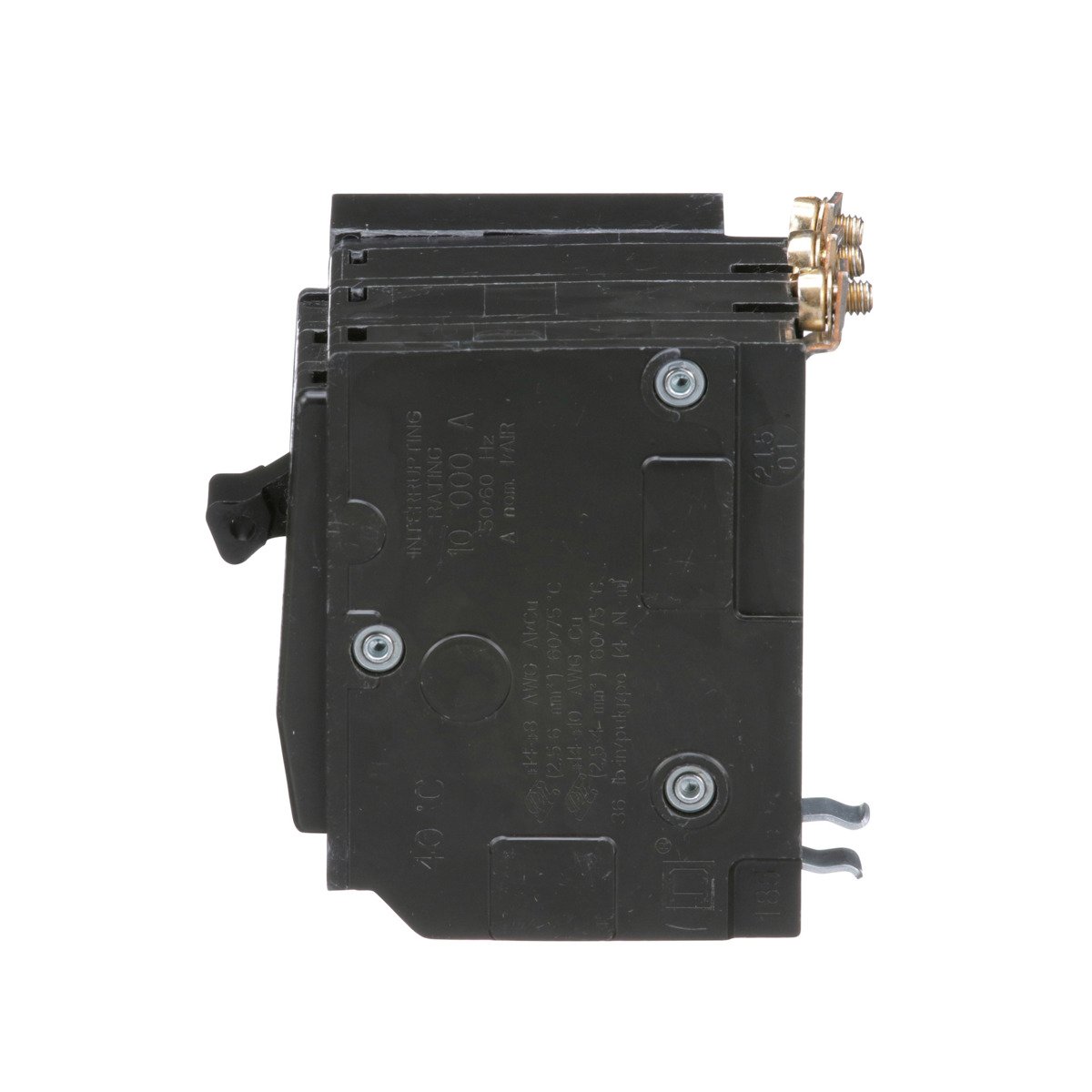

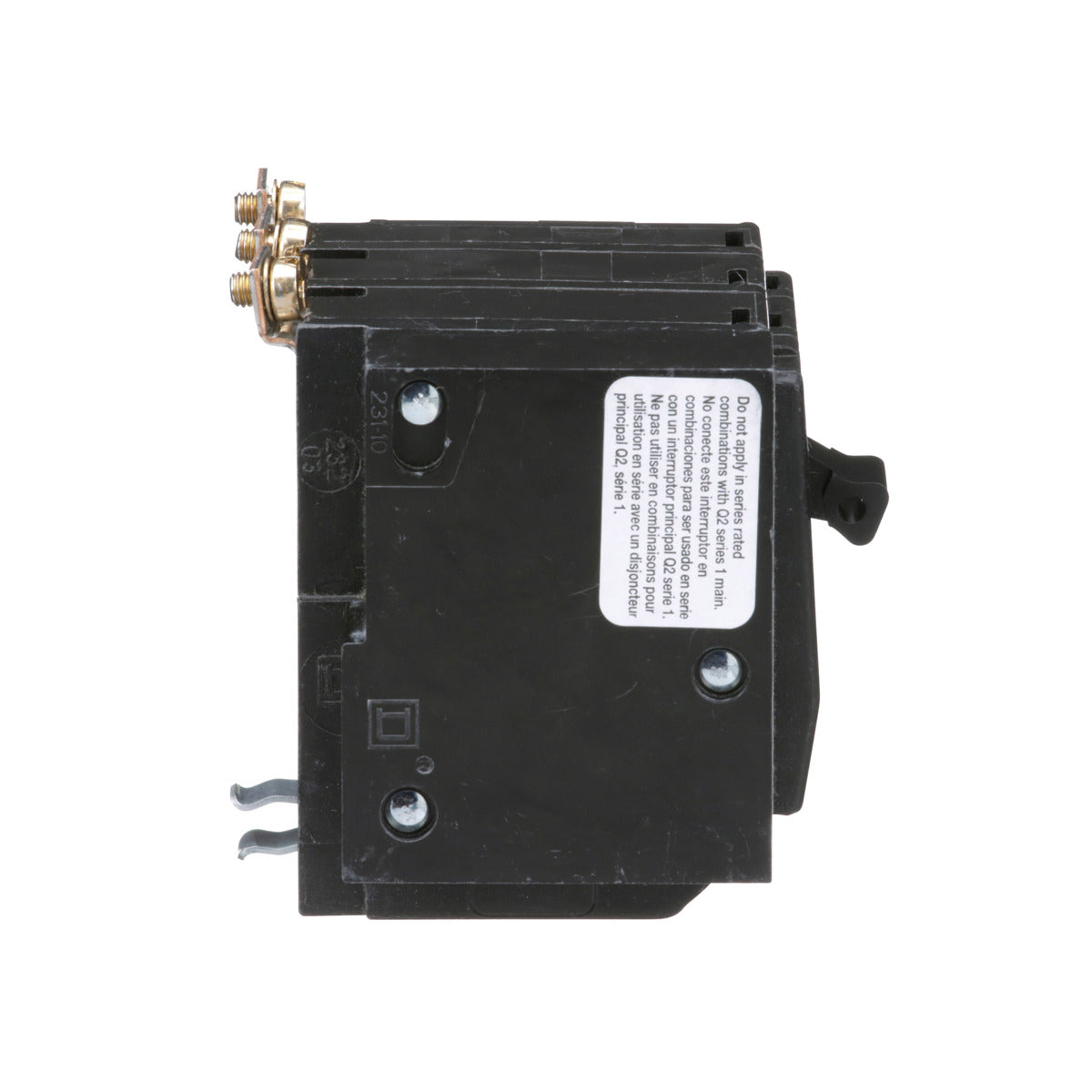

Square D QOB3301021 Miniature Circuit Breaker 30 Amp

Product Description

The Square D QOB3301021 is a 30 Amp miniature circuit breaker designed for overcurrent protection and switching on AC and DC systems. It features an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. The unit has VisiTrip trip indication and a 10kA breaking capacity with bolt-on mounting. Includes an AC shunt trip.

• Provides overcurrent protection and switching on AC and DC systems
• Features VisiTrip trip indication
• Offers 10kA breaking capacity and bolt-on mounting

Product Highlights

This Square D miniature circuit breaker is UL Listed and CSA Certified, suitable for QOB Series load centers and ideal for appliance and lighting applications.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QOB3301021
• Country of Origin: Mexico

Technical Specifications

• Type: Branch
• Brand: Square D
• Depth: 74 mm
• Width: 76 mm
• Height: 76 mm
• Length: 2.91 Inch
• Current: 30 Amp
• Voltage: 120 Volt
• Amperage: 30 Amp
• Sub Brand: QO
• Wire Size: AWG 14...AWG 8 copper or aluminium
• Product UPC: 78590149440
• 12-Digit UPC: 785901494409
• Applications: HACR rated
• Mounting Type: Bolt-on
• TC Connection: Pressure plate
• Certifications: CSA,UL Listed
• Conductor Size: 14-8 AWG
• Number of Poles: 3
• Interrupt Rating: 10 kAIC
• Country of Origin: Mexico
• Line Rated Current: 30 A
• Circuit Breaker Type: Standard
• Short Circuit Current: 10 kA
• Catalog Number: QOB3301021
• Manufacturer: Schneider Electric
• UPC: 785901494409
• GTIN: 00785901494409
• Voltage Rating: 120/240 VAC at 50/60 Hz (UL/CSA), 48 VDC
• Current Rating: 30 Ampere
• Interrupting Rating: 10 Kiloampere at 120/240 VAC (UL/CSA), 5 Kiloampere at 48 VDC
• Installation: Bolt-On
• Application: Appliance, Lighting
• Used On: NQ Series Panelboard
• Approval: UL, CSA
• Frame Type: Q
• Size: 2.25 Inch W x 2.91 Inch D x 3 Inch H
• Tripping Method: Thermal Magnetic, Common Trip
• Family: QOB Series
• Pole: 3
• Amp: 30
• Volt: 240
• Phase: 3
• Category: Molded Case Circuit Breakers
• Connection: Bolt-On
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 10kA@240V
• Dimensions (HxWxD): 2.91 x 2.99 x 2.99
• Volts AC: 120/240
• Amps: 30
• Standards: California Proposition 65
• Mounting: Bolt On
• Interrupt Rating AC: 10 kA
