Product Description

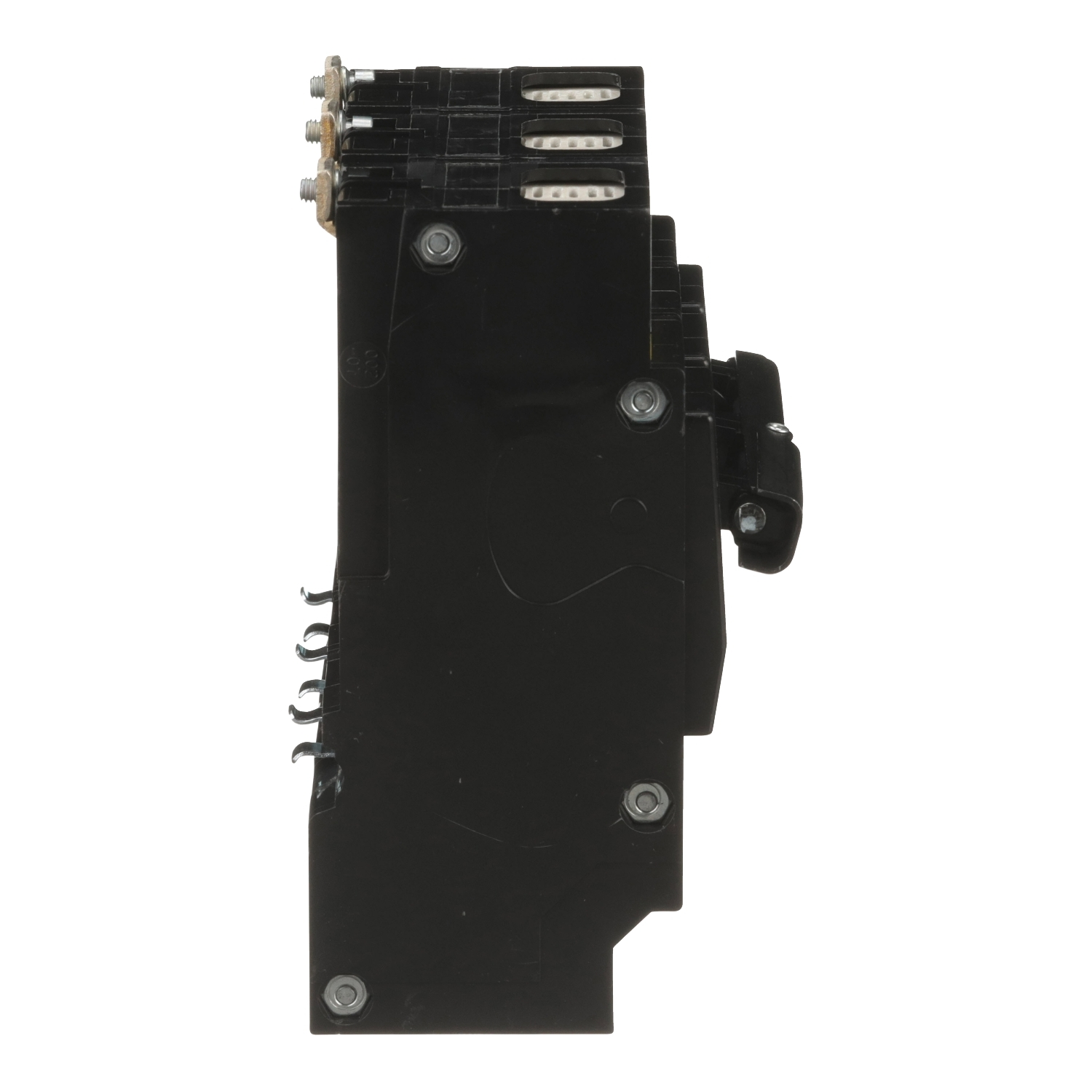

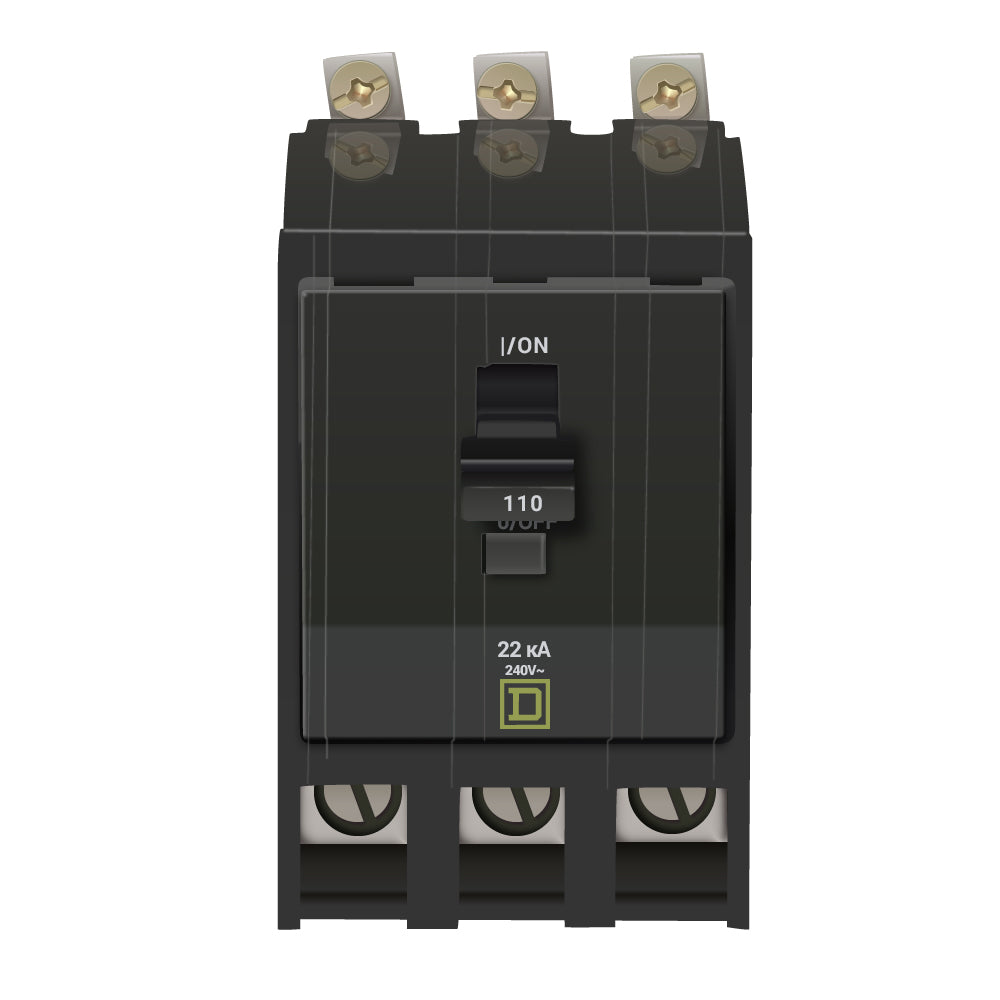

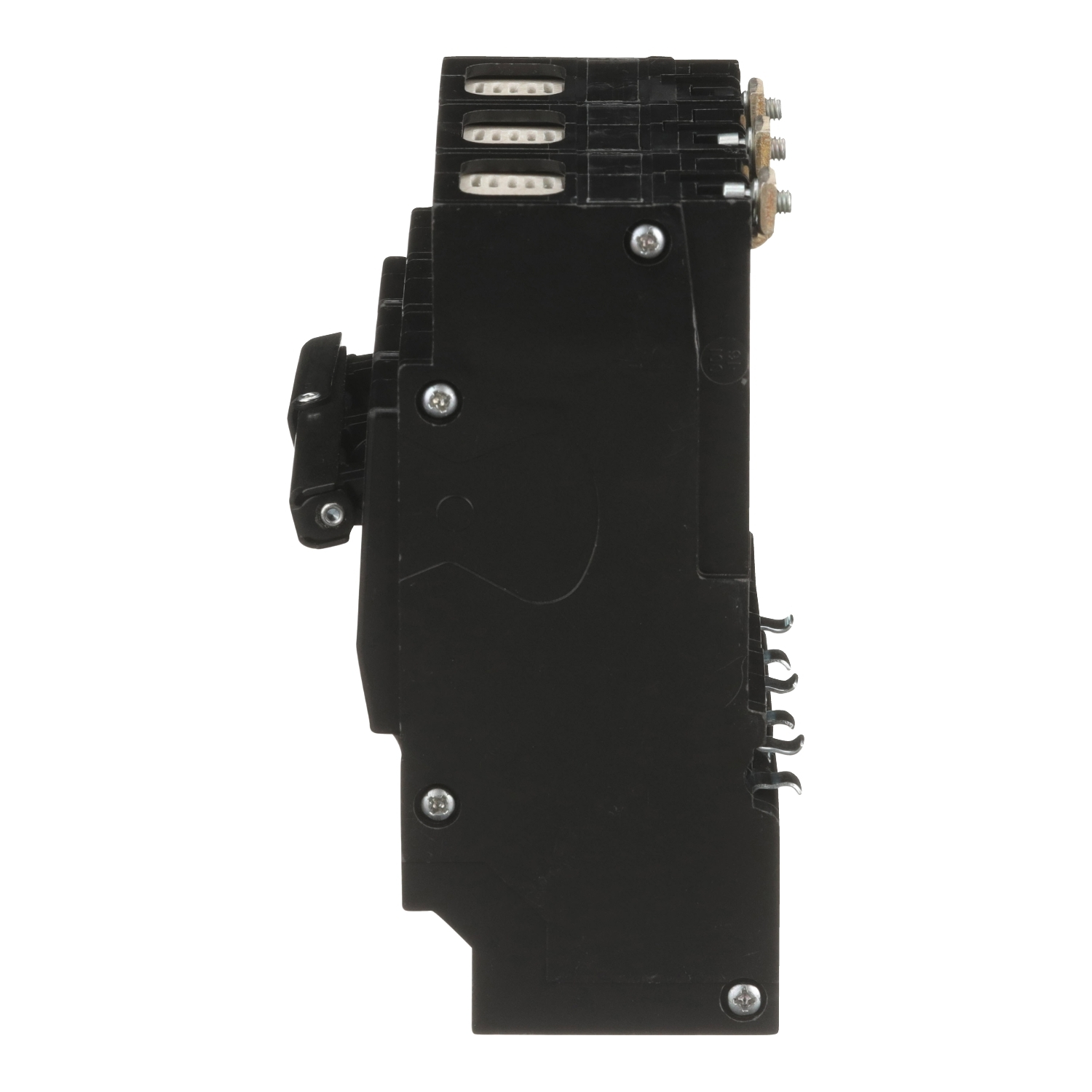

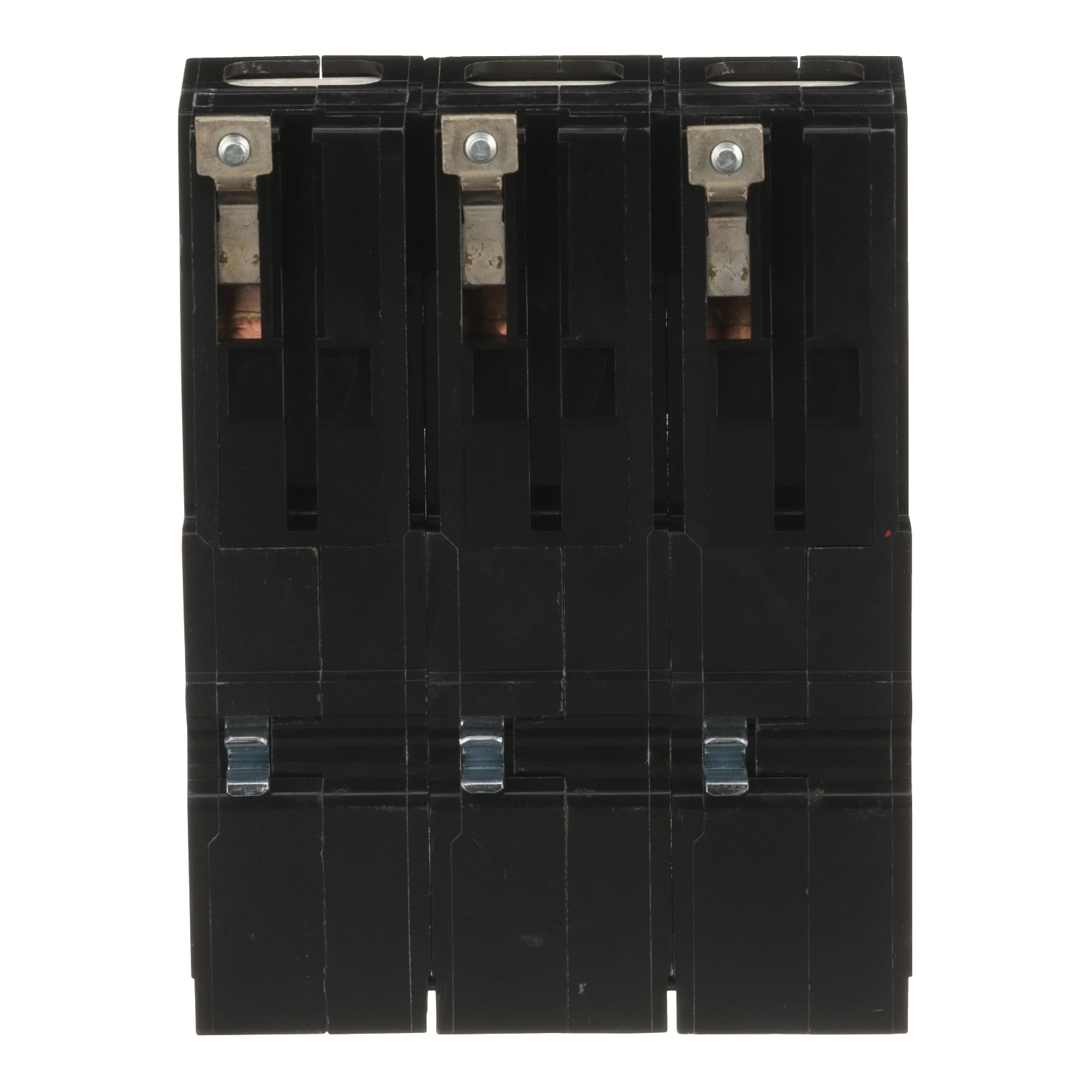

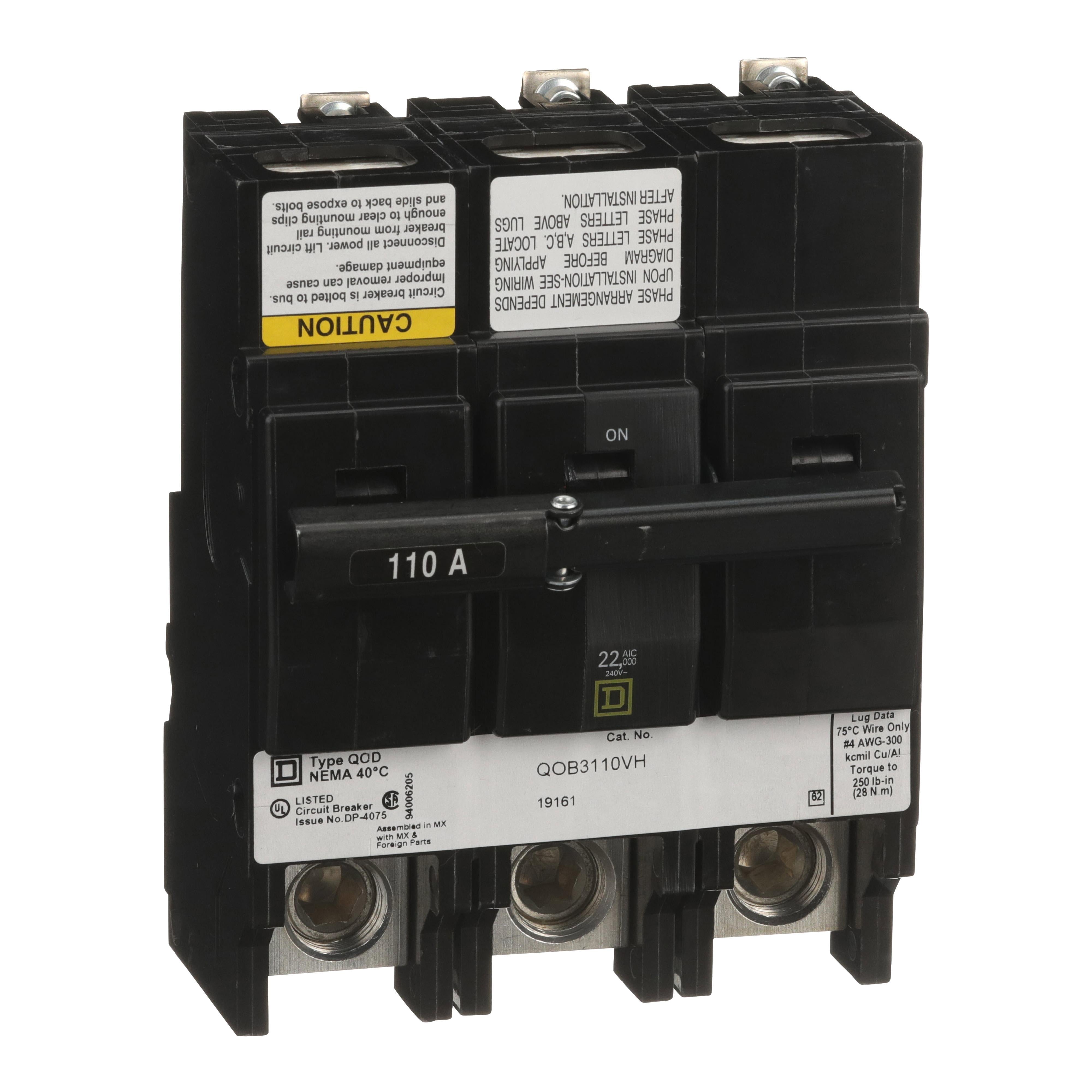

The Square D QOB3110VH is a miniature circuit breaker that provides overcurrent protection and switching on AC and DC systems. This 3-pole breaker is rated at 110A and 120/240VAC. It features a trip-free toggle mechanism with quick make, quick break action and positive handle indication, as well as VisiTrip trip indication.
- Provides overcurrent protection
- Features quick make, quick break action
- Offers VisiTrip trip indication
Product Highlights
This Square D circuit breaker has a 22kA breaking capacity and bolt-on mounting and is suitable for appliance and lighting applications.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QOB3110VH
-
Country of Origin: Mexico
Technical Specifications
-
Type: Miniature circuit-breaker
-
Brand: Square D
-
Current: 110 Amp
-
Voltage: 120 Volt
-
Amperage: 110 Amp
-
Sub Brand: QO
-
Wire Size: AWG 4...300 kcmil copper or aluminium
-
Mounting Type: Bolt-on
-
TC Connection: Box lugs
-
Certifications: CSA,UL Listed
-
Conductor Size: 4 AWG-300 kcmil
-
Number of Poles: 3 Pole
-
Interrupt Rating: 22 kAIC
-
Line Rated Current: 110 A
-
Circuit Breaker Type: Standard
-
Short Circuit Current: 22 kA
-
Catalog Number: QOB3110VH
-
Manufacturer: Schneider Electric
-
UPC: 785901065432
-
GTIN: 00785901065432
-
Voltage Rating: 120/240 VAC at 50/60 Hz (UL/CSA)
-
Current Rating: 110 Ampere
-
Installation: Bolt-On
-
Application: Appliance, Lighting
-
Used On: NQ Series Panelboard
-
Approval: UL, CSA
-
Frame Type: Q
-
Tripping Method: Thermal Magnetic
-
Includes: Visi-Trip Indicator
-
Poles: 3
-
Interrupting Capacity: 22kA
-
Mounting: Bolt On
-
Range Of Product: QO
-
Product Or Component Type: miniature circuit-breaker
-
Circuit Breaker Application: not rated
-
Mounting Mode: bolt-on
-
Poles Description: 3P
-
Electrical Connection: box lugs
-
[Ue] Rated Operational Voltage: 120/240 V AC || 240 V AC || 120 V AC
-
Tightening Torque: 5.6-5.6 N.m
-
Number Of Spaces Required: 6
-
Breaking Capacity: 22 kA 120/240 V AC || 22 kA 240 V AC || 22 kA 120 V AC
-
Awg Gauge: AWG 4...300 kcmil copper or aluminium
-
Product Certifications: UL Listed || CSA
-
Ambient Air Temperature For Operation: 40 °C
-
Series: QOB
-
Part Number: QOB3110VH
-
AIC Rating: 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC
-
Mounting Style: Bolt-On
-
Terminal Type: Box Lugs
-
For Use With: NQ Panelboards, NQOD Panelboards
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 4 AWG - 300 kcmil (Al/Cu)
-
Max Wire: 300 kcmil
-
Min Wire: 4 AWG
-
Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment
-
Accessories: Load Side Lugs Included
-
Standards: CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489
-
Temp Rating: 40C
-
Construction Features: Visual Trip Indicator, HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism
-
System Voltage: 120 V AC, 120/240 V AC, 240 V AC
-
Ratings: Not rated
-
Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
-
Number of Panel Spaces: 6
-
Ambient Rating: 104 Degree F (40 Degree C)
-
Part Number #: QOB3110VH
-
Amperage Rating: 110, 110 A
-
Material: Fiberglass Filled Thermoset
-
UNSPSC: 39121603
