Square D QO70AN NQ Neutral Lug Kit, 70A

Product Description

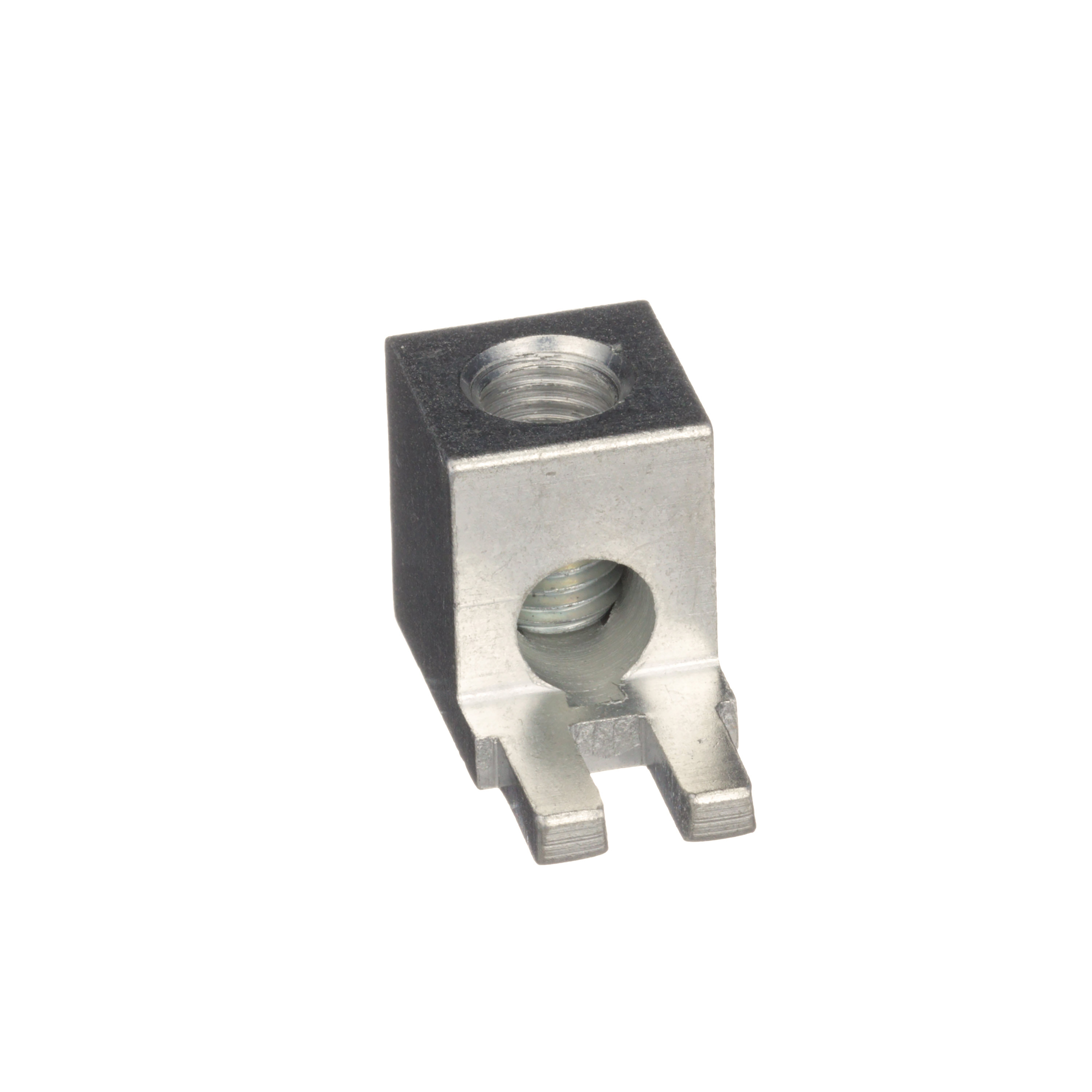

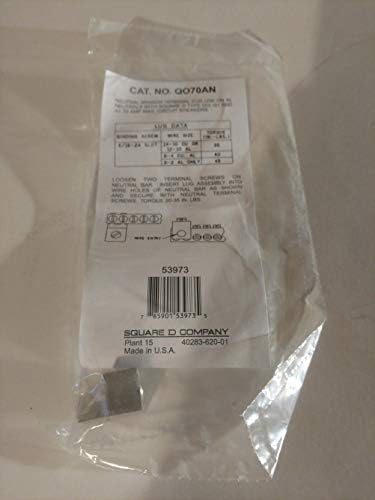

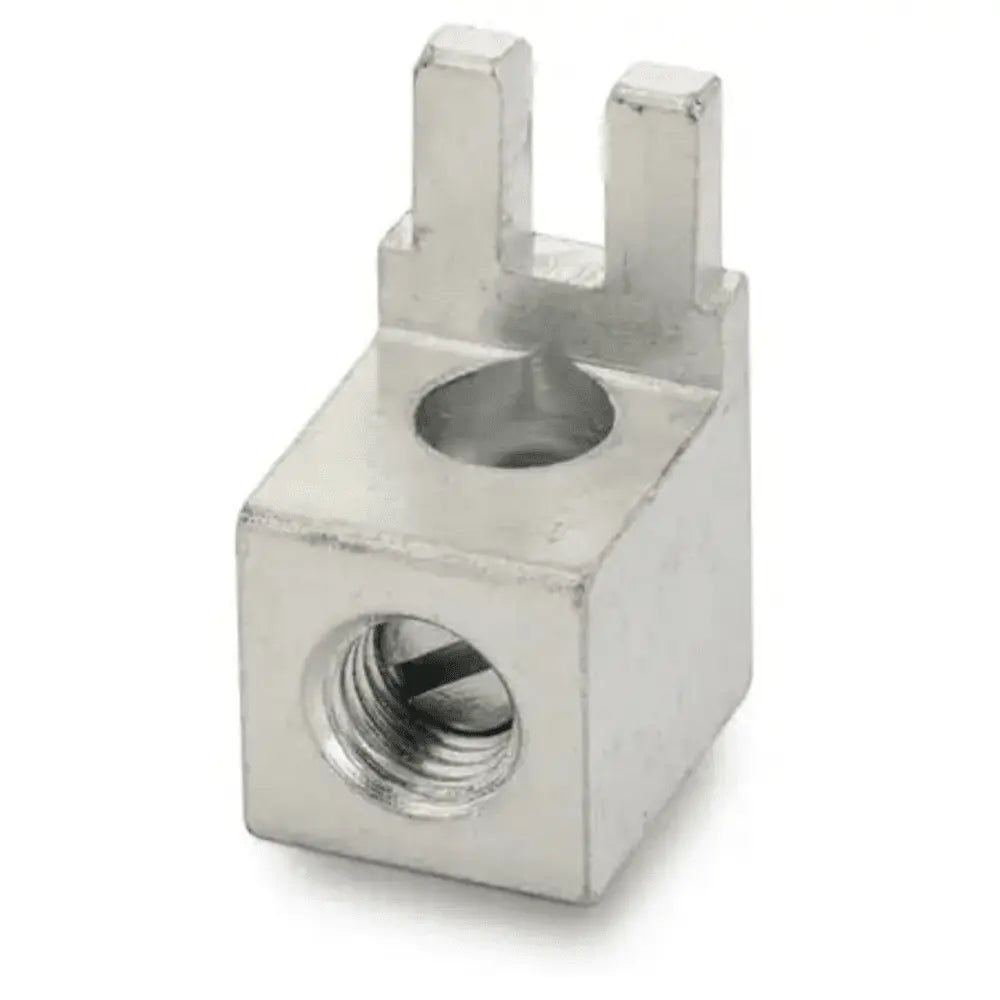

The Square D QO70AN neutral lug kit contains the parts needed to add a lug to the neutral bar of a QO load center or NQ panelboard. Designed for residential and industrial use to protect electrical systems, equipment, and people. The lug accepts 14 WG to 4 AWG copper wire or 12 AWG to 2 AWG aluminum wire and is rated at 70A.

• Accepts 14 WG to 4 AWG copper wire or 12 AWG to 2 AWG aluminum wire
• Rated at 70A
• Designed for residential and industrial use

Product Highlights

This neutral lug kit adds a lug to the neutral bar of a QO load center or NQ panelboard.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO70AN
• Country of Origin: United States

Technical Specifications

• Type: Mechanical Lugs
• Amperage Rating: 70 Amperes
• Material: Aluminum
• Connection: Mechanical
• Insulation: Non-Insulated
• Number Of Mounting Holes: 1
• Conductor Range (Main/Primary): 14 to 2 AWG
• Number Of Conductors/Ports (Main/Primary): 1
• Height: 1 Inches
• Length: 6 Inches
• Brand: Square D
• Cable Size: #12 TO 2 AWG (AL) - #14 TO 4 AWG (CU)
• Conductor Range: 12 to 2 AWG Al, 14 to 4 AWG Cu
• Suitable For Use With: QO™ Load Center
• Current Rating: 70 Amps
• Voltage: 600 Volts
• MPN: QO70AN
