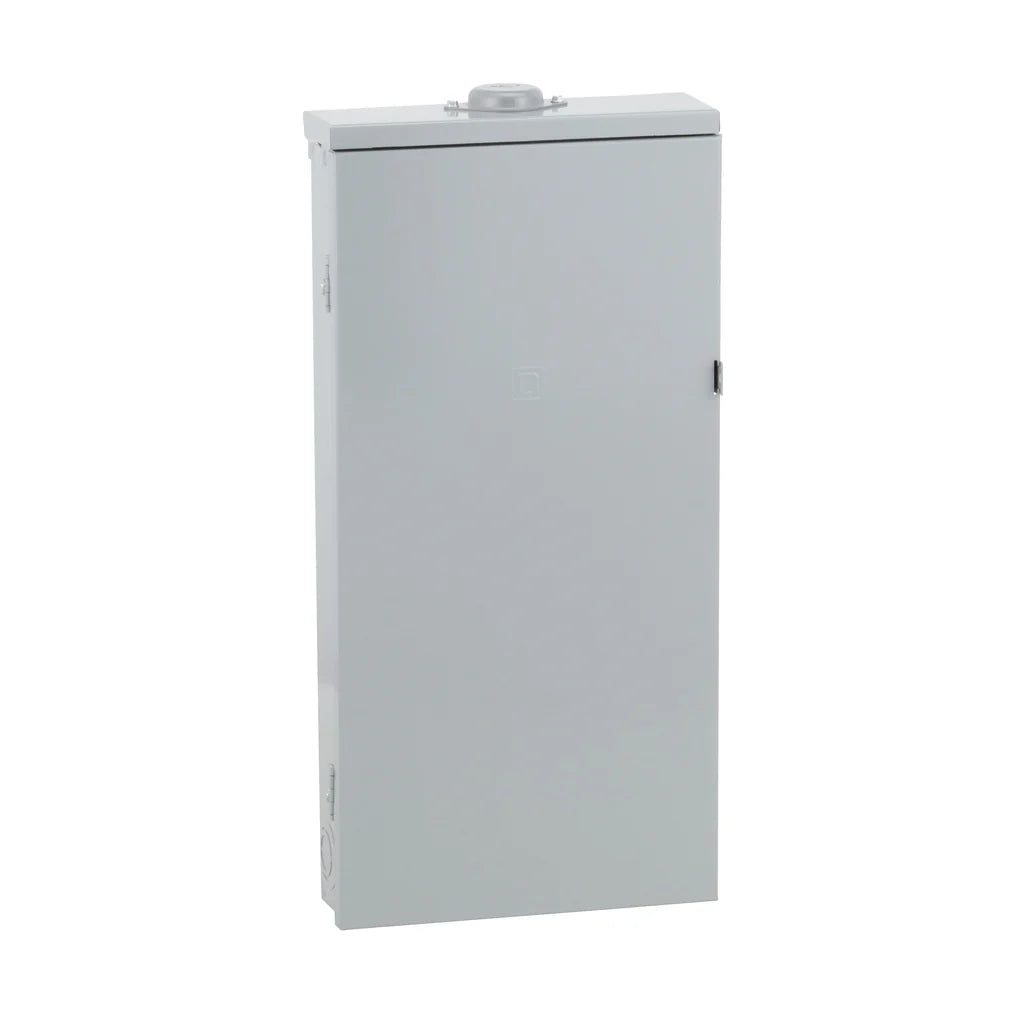

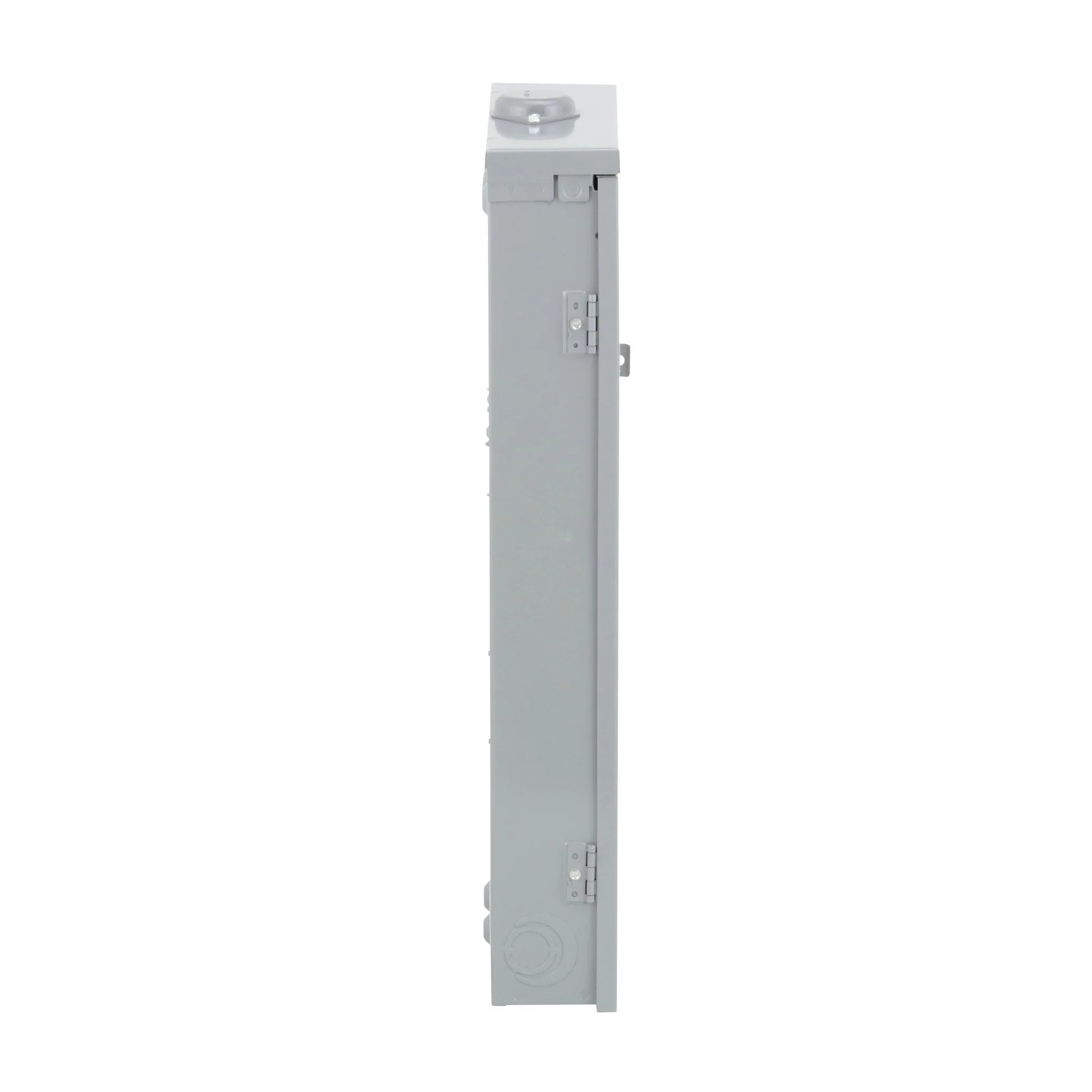

Square D QO330L200GRB Load Center MLO 200A 120/240V 3Ph 30SP NEMA-3R

Product Description

The Square D QO330L200GRB Load Center is designed for effective power distribution. This model has a rating of two hundred amperes and operates at 120/240 volts. It is suitable for three-phase electrical systems. The load center supports up to thirty circuits providing ample capacity for various applications. It features a NEMA three R rated enclosure for outdoor use and includes a ground bar.

• Compatible with QO breakers and ground fault interrupters.
• Supports both indoor and outdoor installations with versatile enclosure options.
• Equipped with plated copper bus for improved durability and performance.

Product Highlights

This load center meets residential and commercial electrical system requirements, ensuring safety and reliability.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO330L200GRB
• Current Rating: 200 A
• Voltage Rating: 208Y/120 V AC and 240 V AC
• Maximum Short Circuit Current Rating: 65 kA
• Number of Spaces: 30
• Enclosure Type: NEMA 3R
• Material: Tin Plated Copper Busbar
• Warranty: 18 months
