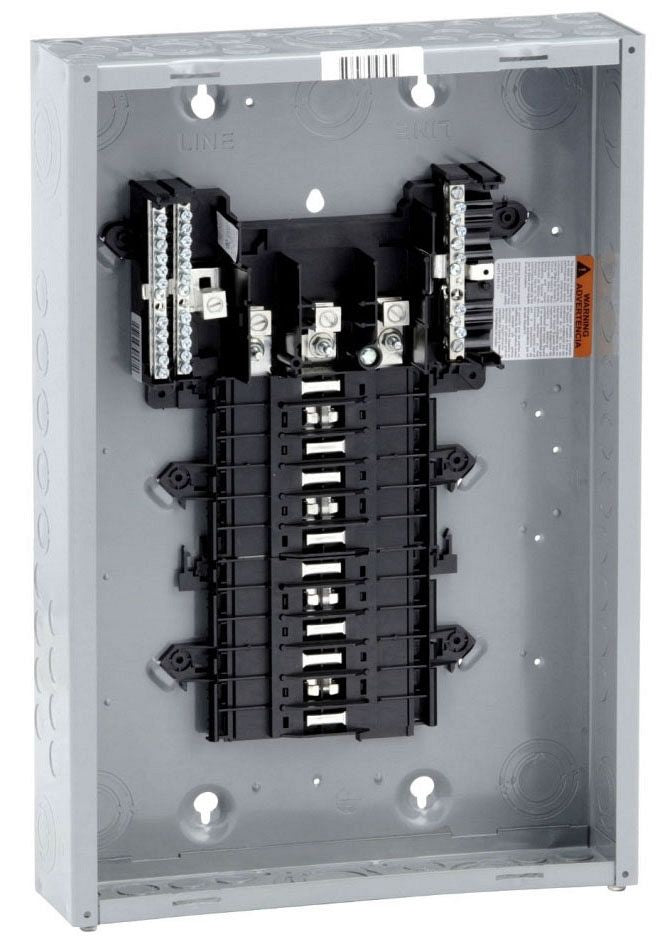

Square D QO324L125G Ld-Cntr Box & Int

Product Description

The Square D QO324L125G is a load center designed for effective power distribution in various settings. This product features a fixed main lug type with a compact size of fourteen point twenty-five inches wide, three point seventy-five inches deep, and twenty point ninety-two inches high. It supports a maximum of twenty-four circuits and includes UL and NOM approvals for safety and reliability.

• Fixed main lug type design
• Fits up to twenty-four circuits and spaces
• UL and NOM approved

Product Highlights

Suitable for three-phase and four-wire applications, this load center is ideal for both industrial and residential installations.

Product Information

Standard Information

• Brand: Square D Co.
• Manufacturer: Square D/Teledyne

Technical Specifications

• UPC: 78590129543
• Interrupting Rating: 65 Kiloampere
• Neutral Type: Split Branch
• Bus Material: Tin Plated Copper
• Feed Location: Top/Bottom
• Main Wire Size: 6 to 2/0 AWG (Aluminum/Copper)
• Enclosure Type: NEMA 1, Indoor
• Maximum Number of Circuits: 24
• Voltage Rating: 208 VAC Star/120 VAC, 240/120 VAC Delta (3-Phase 4-Wire), 240 VAC Delta (3-Phase 3-Wire)
