Square D QO250GFI Circuit Breaker w/GFI 50A 120/240V 2P

Product Description

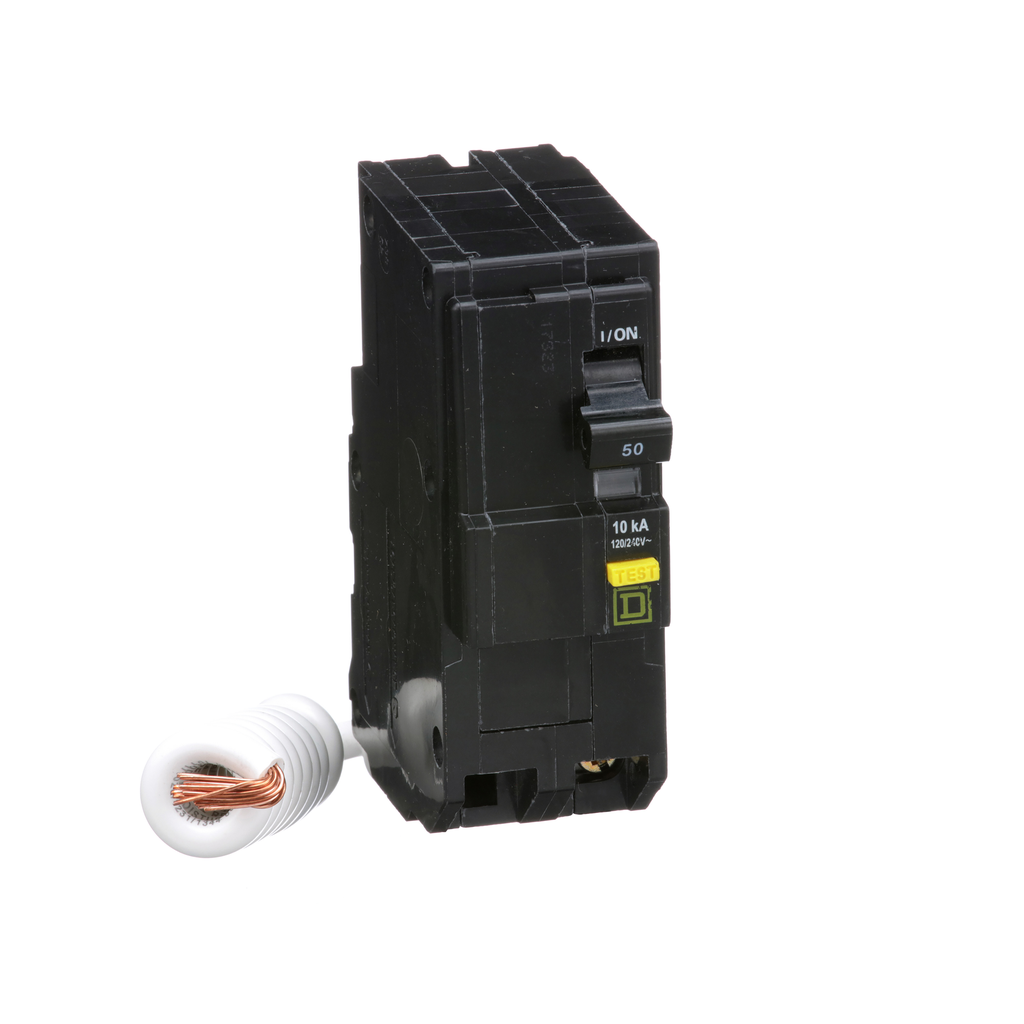

The Square D QO250GFI Circuit Breaker is a plug-on miniature circuit breaker with ground fault protection. This two-pole breaker is designed for use in residential and commercial electrical panels. It is rated at fifty amps with a voltage of 120/240 volts. The breaker provides a breaking capacity of ten kiloamperes. This unit is suitable for various applications, including switching fluorescent lighting loads. It features a trip-free toggle mechanism and VisiTrip indication for easy status check.

• Overcurrent protection for AC and DC systems
• Two-pole design with ground fault protection
• UL listed for switching duty

Product Highlights

This product is ideal for electrical panels requiring reliable circuit protection. It supports various wire sizes and includes factory-installed accessories.

Product Information

Standard Information

• Catalog Number: QO250GFI
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Miniature circuit-breaker
• Current Rating: 50 Amps
• Voltage Rating: 120/240 Volts
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Size: 2.91 inches x 1.50 inches x 4.12 inches
• Wire Size: 12 to 4 AWG (aluminum), 14 to 6 AWG (copper)
• Certifications: UL Listed, CSA Certified
• Country of Origin: Mexico
• Warranty Length: 18 months
