Square D QO245 Miniature Circuit Breaker 45A 120/240V 2P

Product Description

The Square D QO245 Miniature Circuit Breaker is a two-pole, plug-on circuit breaker rated for 45 amps at 120/240 volts. It is designed for overcurrent protection in residential and commercial applications. This circuit breaker features a trip-free toggle mechanism with VisiTrip indicator, which visually alerts users when the breaker has tripped. It offers a breaking capacity of 10 kA and complies with UL and CSA certification standards, ensuring safety and reliability.

• Designed for quick installation with plug-on mounting
• Rated for 45 amp current interrupting
• Includes trip indication for ease of use

Product Highlights

The Square D QO245 is ideal for those seeking a reliable and easy-to-install circuit breaker that offers essential overcurrent protection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO245
• Rated Current: 45 Amps
• Voltage Rating: 120/240 V AC
• Number of Poles: 2
• Breaking Capacity: 10 kA

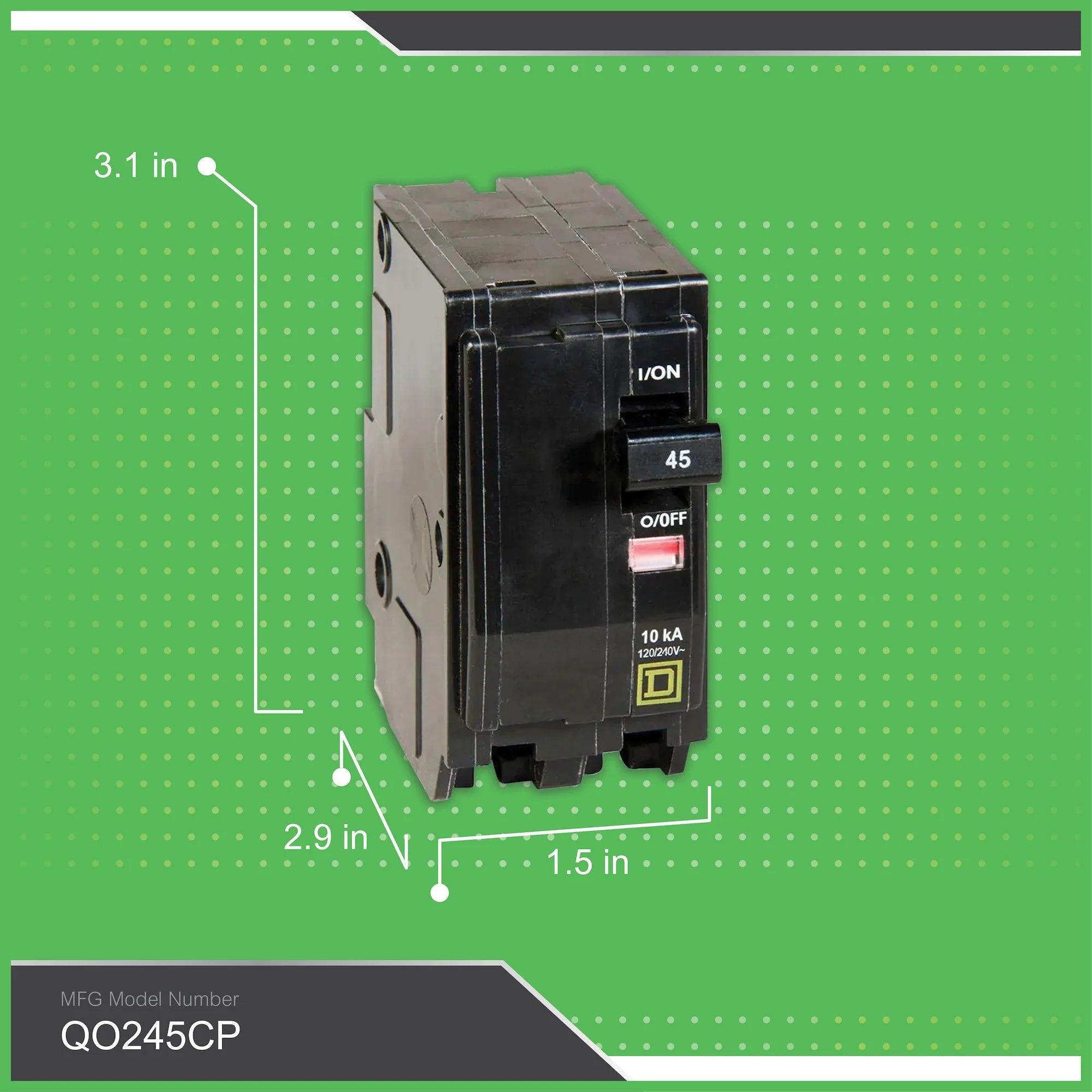

• Depth: 2.91 inches
• Width: 1.5 inches
• Height: 3.12 inches
• Weight: 0.57 kg
• Mounting Type: Plug-in
• Certifications: UL Listed, CSA Certified
