Product Description

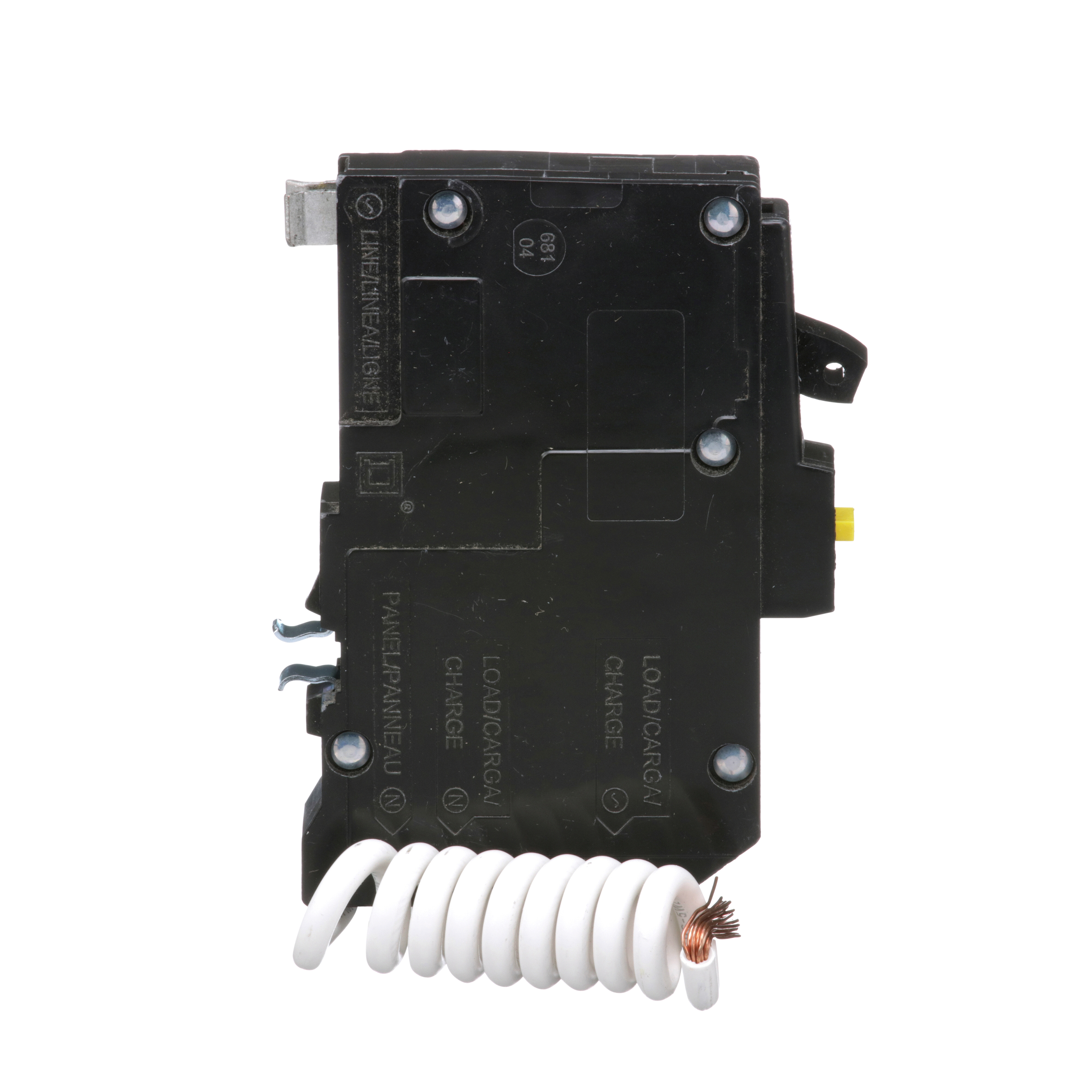

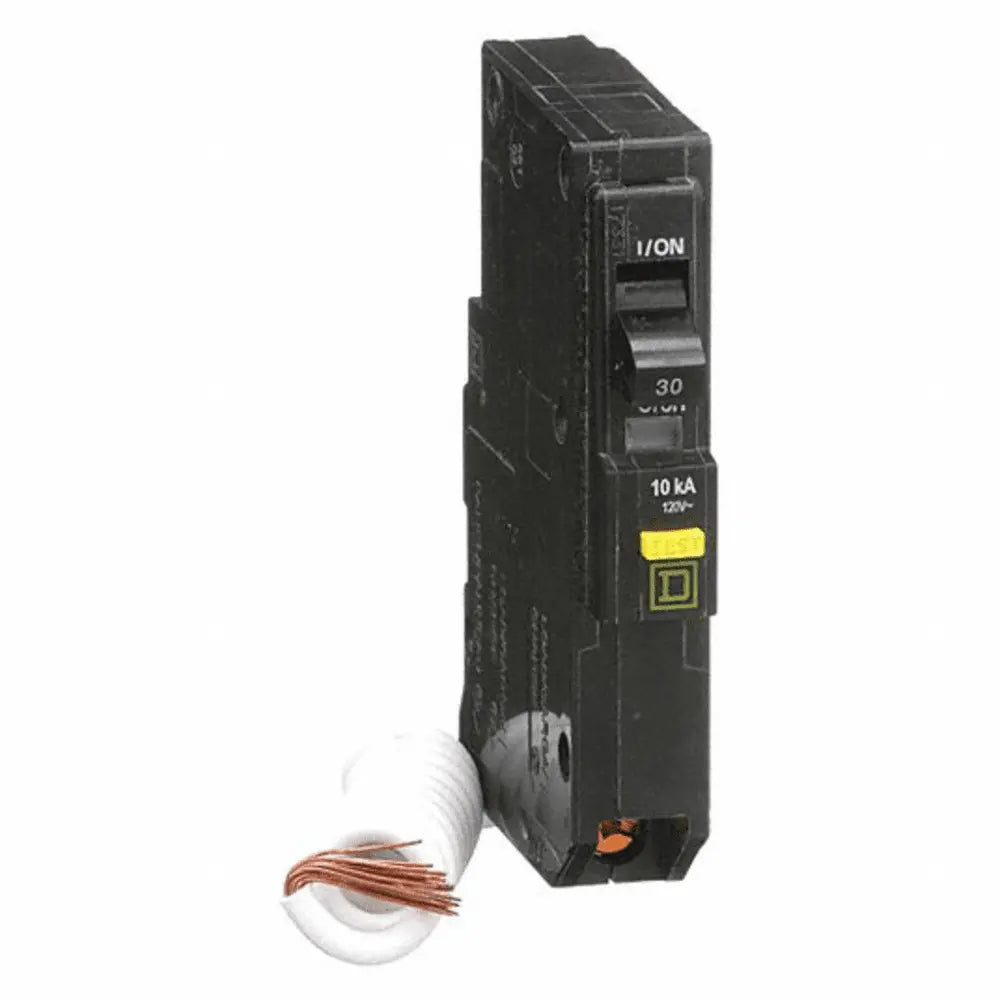

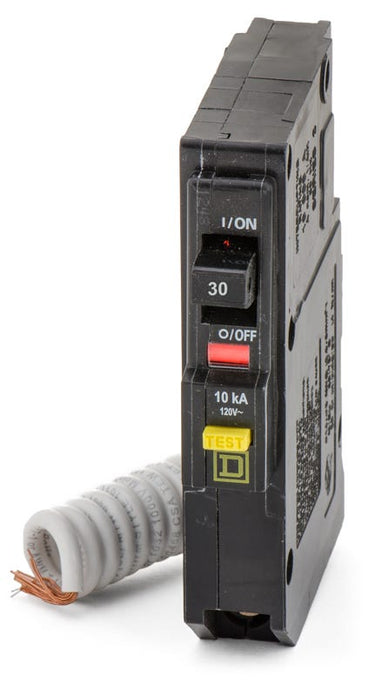

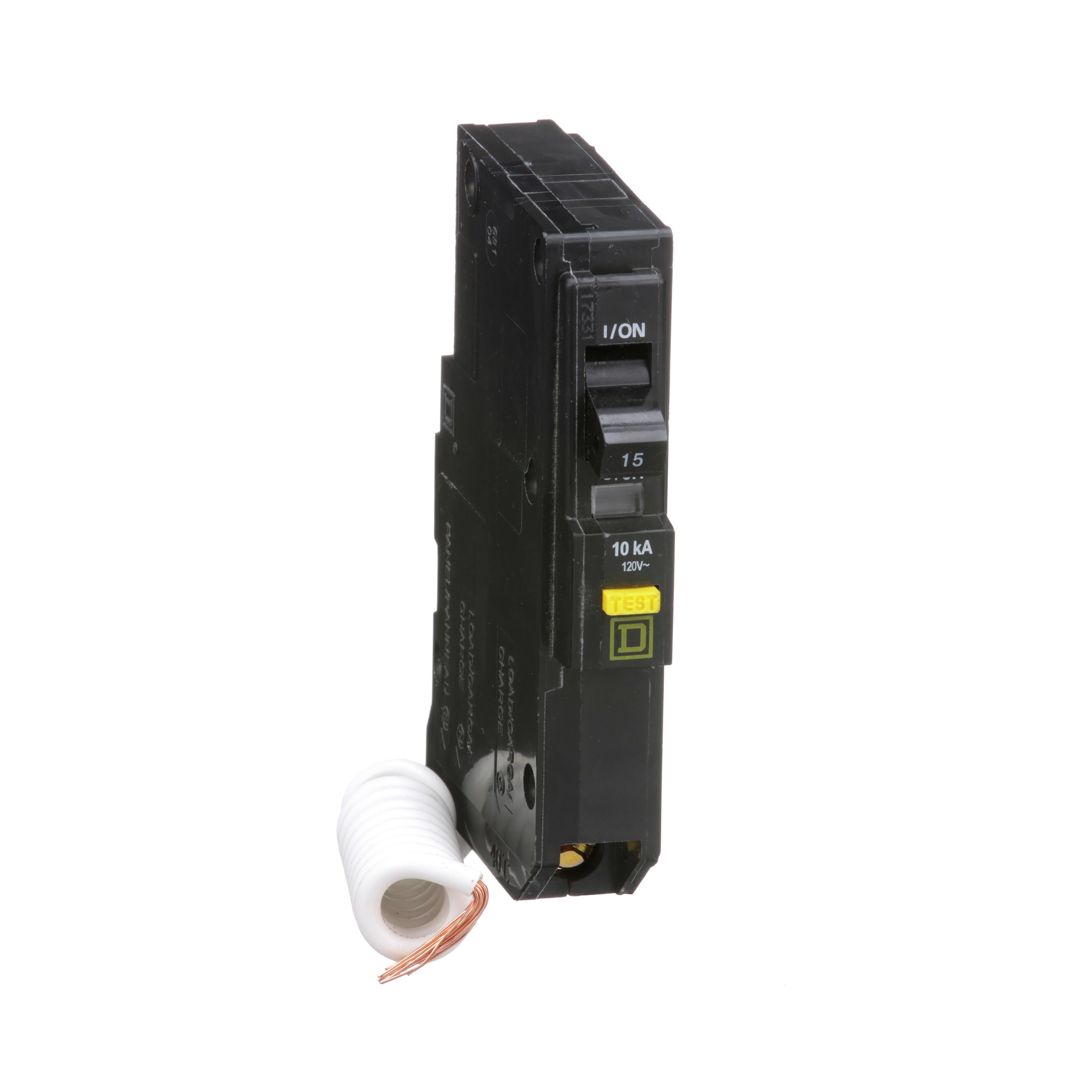

The Square D QO130GFI is a QO mini circuit breaker designed for overcurrent protection and switching on AC and DC systems. This single-pole, plug-in mounted breaker is rated at 30A and 120 VAC, with a 10kA breaking capacity. It features a trip-free toggle mechanism, VisiTrip trip indication, and includes 6mA ground fault protection with a pigtail.
- Provides overcurrent protection and switching on AC and DC systems
- Features a trip-free toggle mechanism with quick make, quick break action
- Includes 6mA ground fault protection with pigtail
Product Highlights
This Square D QO mini circuit breaker offers reliable overcurrent and ground fault protection for residential and commercial electrical systems. UL Listed and CSA certified.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QO130GFI
-
Country of Origin: Mexico
Technical Specifications
-
Type: Ground Fault
-
Depth: 2.91 Inches
-
Width: 0.75 Inches
-
Height: 4.13 Inches
-
Material: Thermoplastic
-
Standard: UL Listed, CSA
-
Voltage Rating: 120 VAC
-
Amperage Rating: 30 Amperes
-
Number Of Poles: Single-Pole
-
Interrupt Rating: 10 kAIC
-
Circuit Breaker Type: Ground fault protecting class A 6 mA
-
Range Of Product: QO
-
Product Or Component Type: miniature circuit-breaker
-
Mounting Mode: Plug-in
-
Poles Description: 1P
-
Electrical Connection: pressure plate
-
Line Rated Current: 30 A
-
[Ue] Rated Operational Voltage: 120 V AC
-
Breaking Capacity: 10 kA 120 V AC
-
Awg Gauge: AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
-
Tightening Torque: 4-4 N.m || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
-
Number Of Spaces Required: 1
-
Product Certifications: UL Listed || CSA
-
Ambient Air Temperature For Operation: 40 °C
-
Current: 30 Amp
-
Voltage: 120 Volt
-
Amperage: 30 Amp
-
Sub Brand: QO
-
Wire Size: AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
-
Applications: Not rated
-
TC Connection: Pressure plate
-
Certifications: CSA,UL Listed
-
Conductor Size: 12-8 AWG (AL)/14-8 AWG (CU)
-
Short Circuit Current: 10 kA
-
Mounting: Plug-On
-
Terminal Type: Pressure Plate
-
Used On: QO Loadcenter, NQOD Panelboard, OEM Interior/Speed-D Switchboard Distribution Panel
-
Approval: UL, CSA
-
Application: Provides Overload and Short Circuit Protection
-
Series: QO
-
Part Number: QO130GFI
-
Poles: 1
-
Phase: 1
-
AIC Rating: 10kA @ 120VAC
-
Special Classification: GFCI
-
Mounting Style: Plug-On
-
For Use With: QO Load Centers, NQ Panelboards, NQOD Panelboards
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LIG
-
Trip Function: Long-Time, Instantaneous, Ground Fault
-
Trip Adjustability: Fixed Thermal, Fixed Magnetic
-
Wire Gauge: 14-8 AWG (Cu), 12-8 AWG (Al)
-
Max Wire: 8 AWG
-
Min Wire: 14 AWG (Cu), 12 AWG (Al)
-
Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment
-
Accessories: Pigtail Neutral
-
Standards: CSA C22.2 No. 144, UL 489, UL 943, HACR Rated
-
Temp Rating: 40C
-
Construction Features: Visual Trip Indicator, Mercury Free
-
Item: Miniature Circuit Breaker
-
AC Voltage Rating: 120V AC
-
DC Voltage Rating: 48V DC
-
Circuit Breaker Actuator: Paddle
-
Compatible Panelboard/Load Center Series: NQ, QO
-
Trip Sensitivity: 6 Milliampere
-
Frame: QO
