Square D QO124L125PG Load Center QO 125A 240V 1Ph 24SP NEMA-1 Plug-On Neutral

Product Description

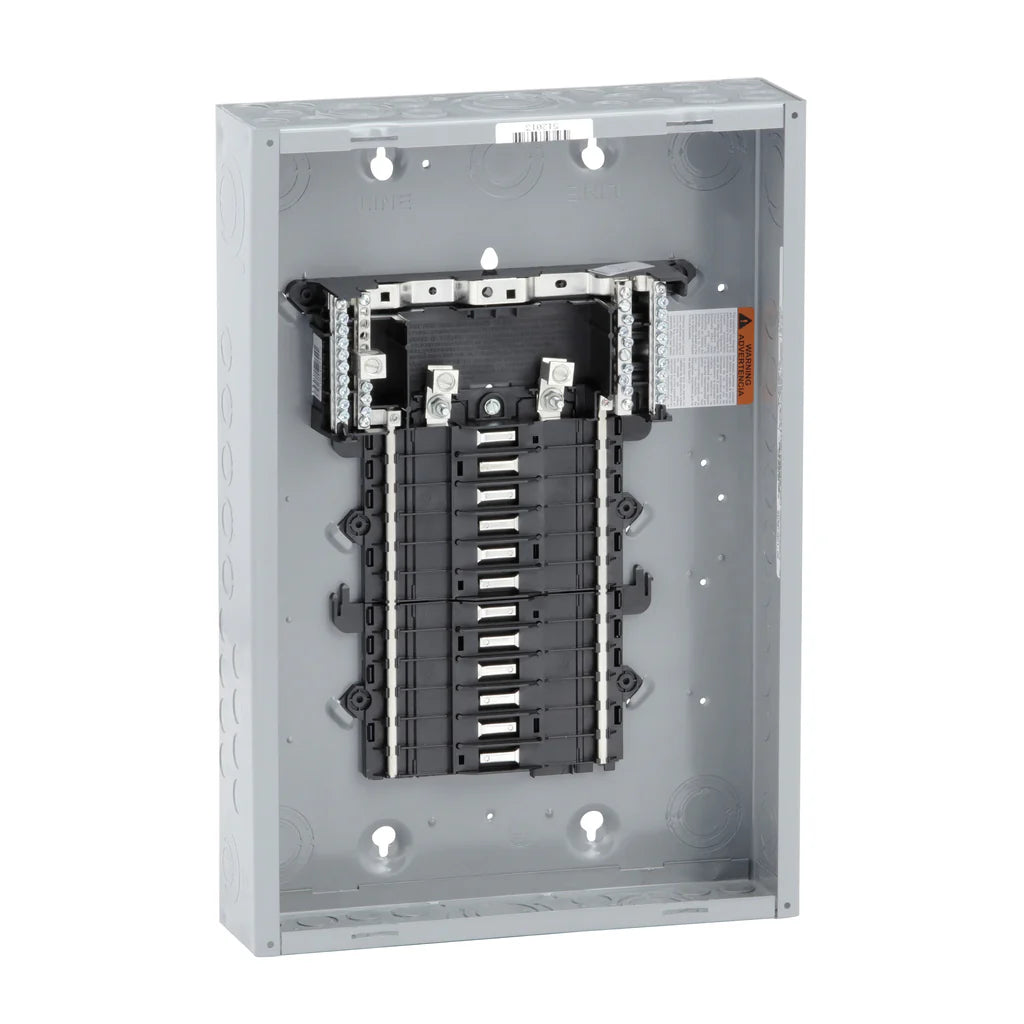

Square D QO124L125PG is a load center designed for various electrical applications. It operates at 125 amps and 240 volts for single-phase installations. This panelboard supports 24 spaces and 34 circuits for efficient power distribution.

• UL listed and CSA rated for safety
• Constructed with tin plated copper busbars
• Suitable for residential, commercial, and industrial environments

Product Highlights

The QO124L125PG load center features a plug-on neutral and ground bar, allowing for easy installation and maintenance. It includes options for various main configurations, enhancing versatility depending on your setup.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO124L125PG
• Rated Current: 125 Amp
• Voltage: 120/240 Volt
• Number of Spaces: 24
• Number of Circuits: 34
• Enclosure Type: NEMA 1
• Enclosure Material: Steel
• Warranty Length: 18 months
