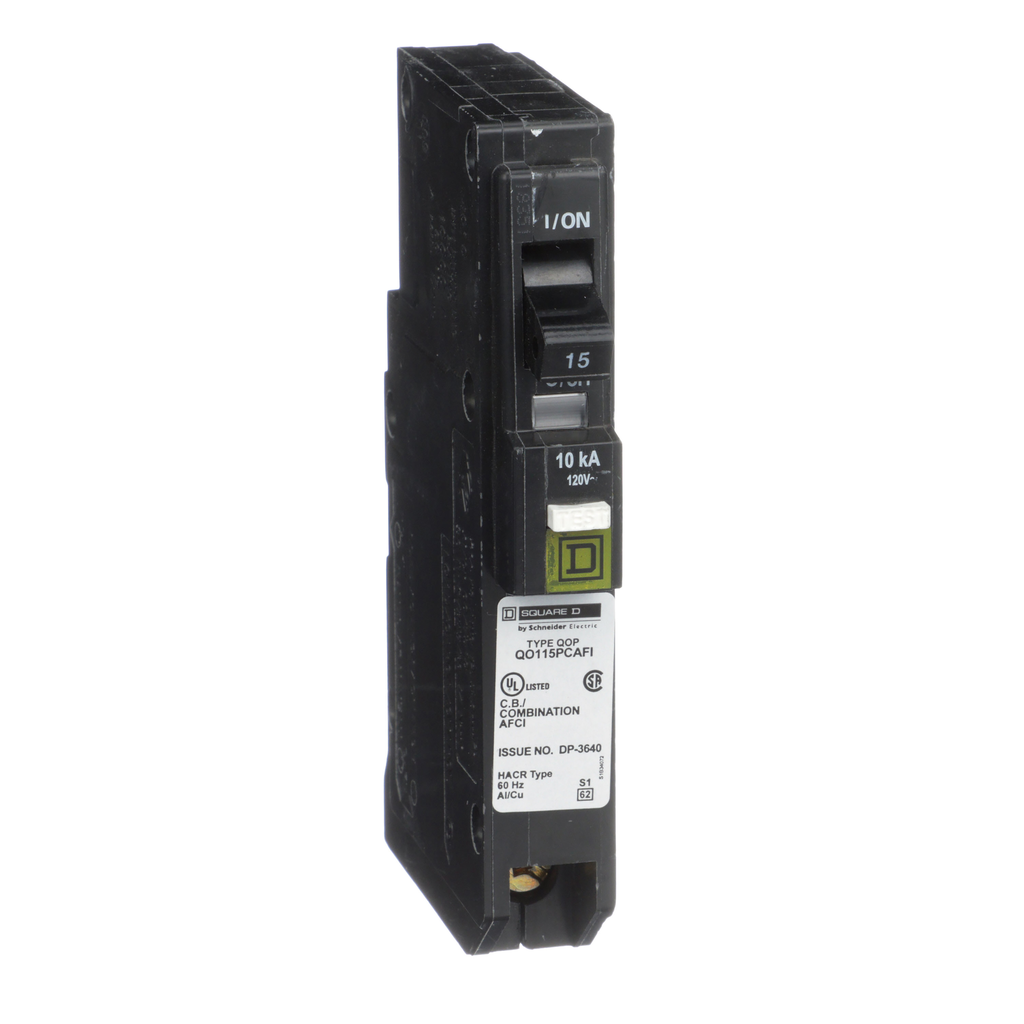

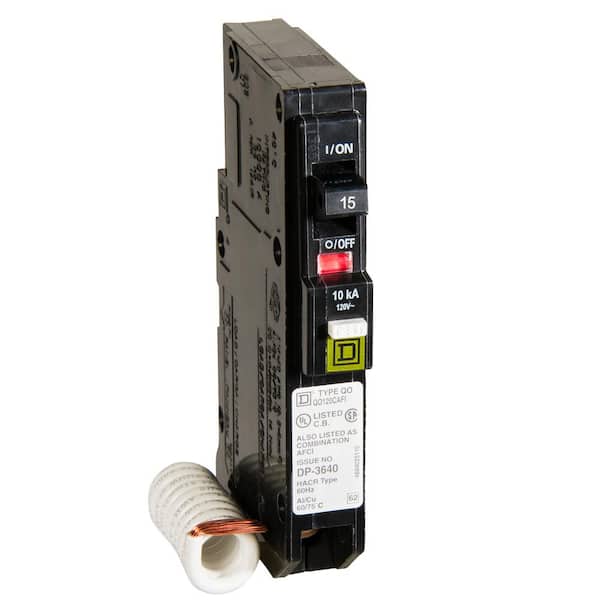

Square D QO115PCAFIC mini circuit breaker 15 amp

Product Description

The Square D QO115PCAFIC mini circuit breaker provides overcurrent protection and switching on AC and DC systems. Rated at 15A at 120VAC, this 1-pole circuit breaker features a trip-free toggle mechanism with quick make, quick break action and positive handle indication. It offers VisiTrip trip indication and a 10kA breaking capacity with plug-in mounting and combination arc fault with plug on neutral.

• Provides overcurrent protection and switching on AC and DC systems.
• Features VisiTrip trip indication for visual indication of tripped circuits.
• Offers a 10kA breaking capacity and plug-in mounting.

Product Highlights

This Square D QO circuit breaker is UL Listed and CSA Certified, suitable for HACR rated applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: QO115PCAFIC
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Current: 15 Amp
• Voltage: 120 Volt
• Amperage: 15 Amp
• Wire Size: AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
• Applications: HACR rated
• Mounting Type: Plug-In
• TC Connection: Plug-on neutral;Pressure plate;AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
• Certifications: CSA,UL Listed
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Line Rated Current: 15 A
• Circuit Breaker Type: Combination ARC-fault
• Short Circuit Current: 10 kA
• Max. Wire Size [Specifications]: 8 AWG (Cu), 8 AWG (Al)
• Min. Wire Size [Specifications]: 14 AWG (Cu), 12 AWG (Al)
• AC Voltage Rating: 120V AC
