Square D QC816F200C Name Power Size Replacement MPN

Product Description

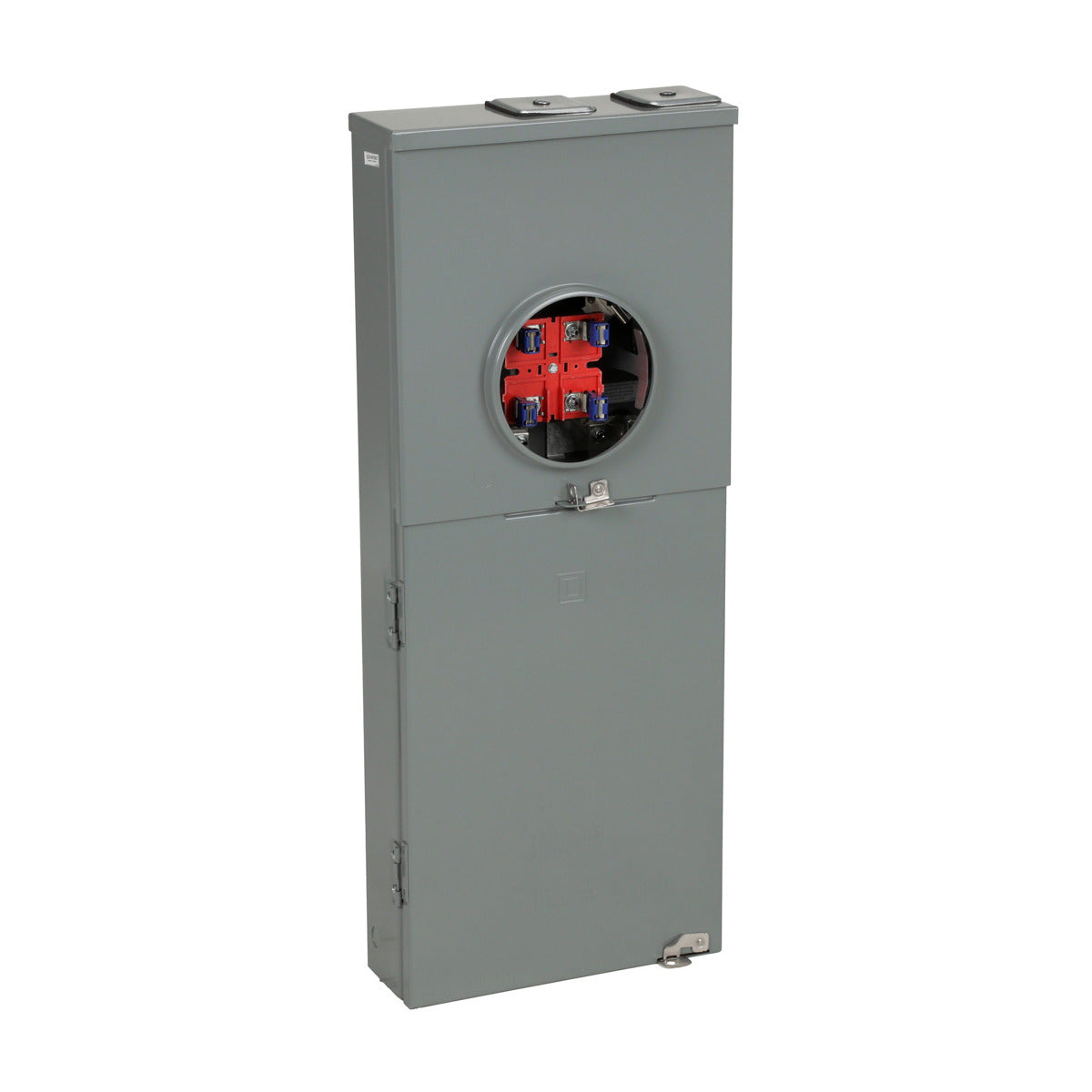

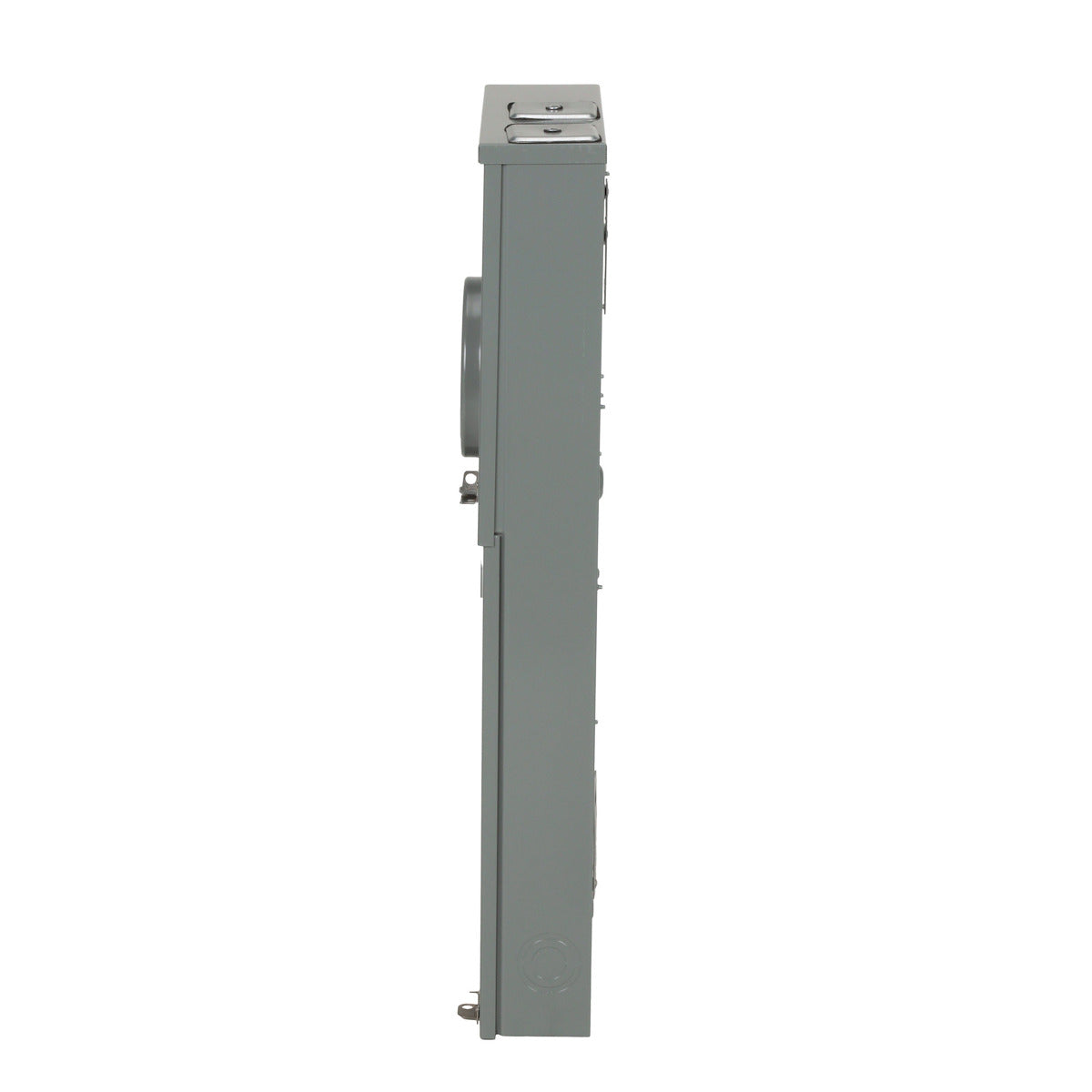

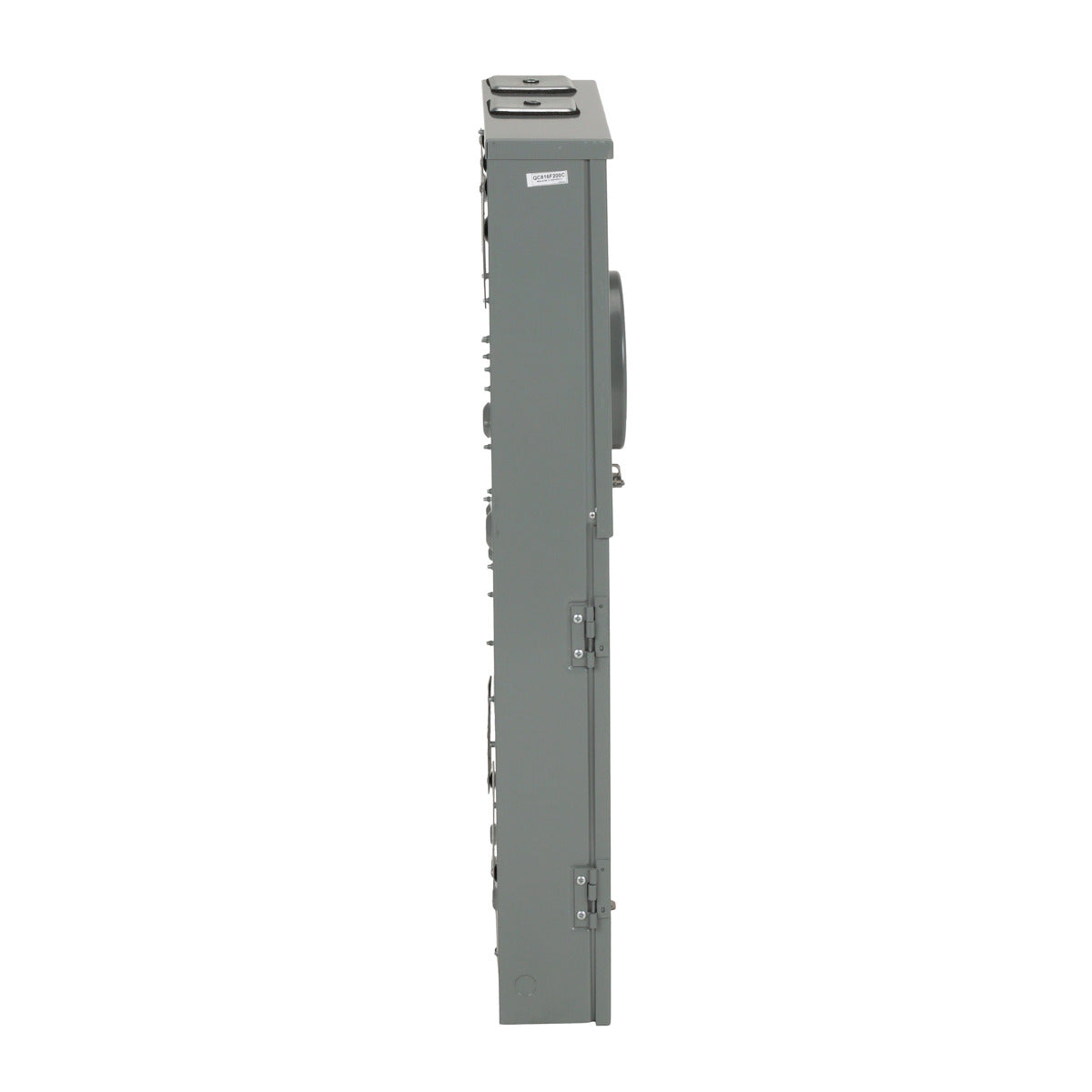

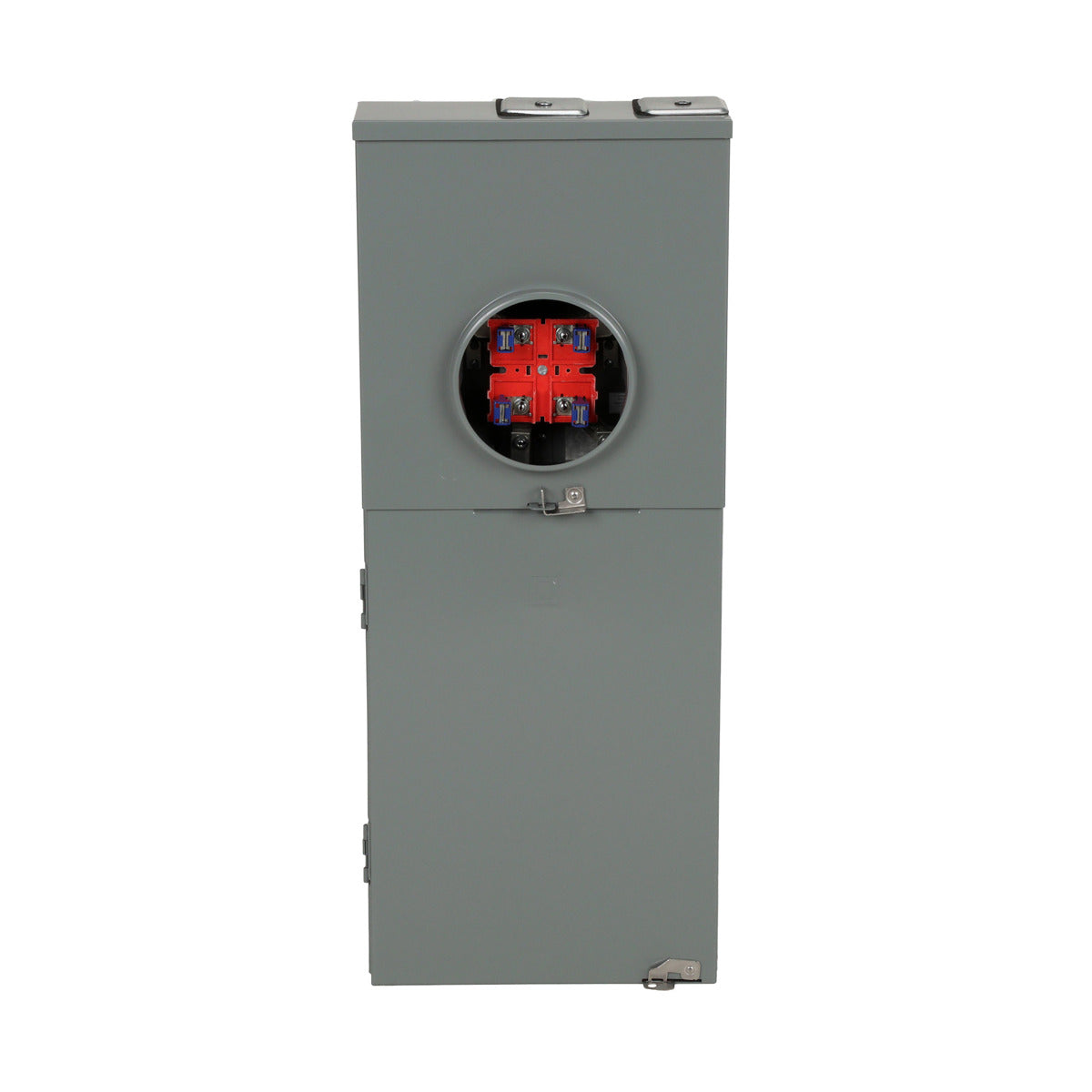

The Square D QC816F200C is a 200 Amp 1-Phase surface mount ringless type meter main. This device is designed for use as service equipment with a single main service disconnect. It can be mounted as a surface mount or converted to semi-flush using an appropriate flange kit. This meter main meets Federal Specification W-P-115c as Type 1, Class 2 and is UL Listed.

• Suitable for overhead or underground service feeds.
• Compatible with AWG 6 to 350 kcmil for line side and AWG 12 to 2/0 for service ground.
• Equipped with feed-through lugs for easy installation.

Product Highlights

This model features a ringless socket design and is built for reliability in various applications, including residential and commercial installations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QC816F200C
• Voltage: 120/240 VAC
• Amperage: 200 Amp
• Enclosure: NEMA 3R
• Number of Circuits: 16
• Number of Spaces: 8
• Short Circuit Current: 22 kA
• Warranty Length: 18 months
• Country of Origin: United States
