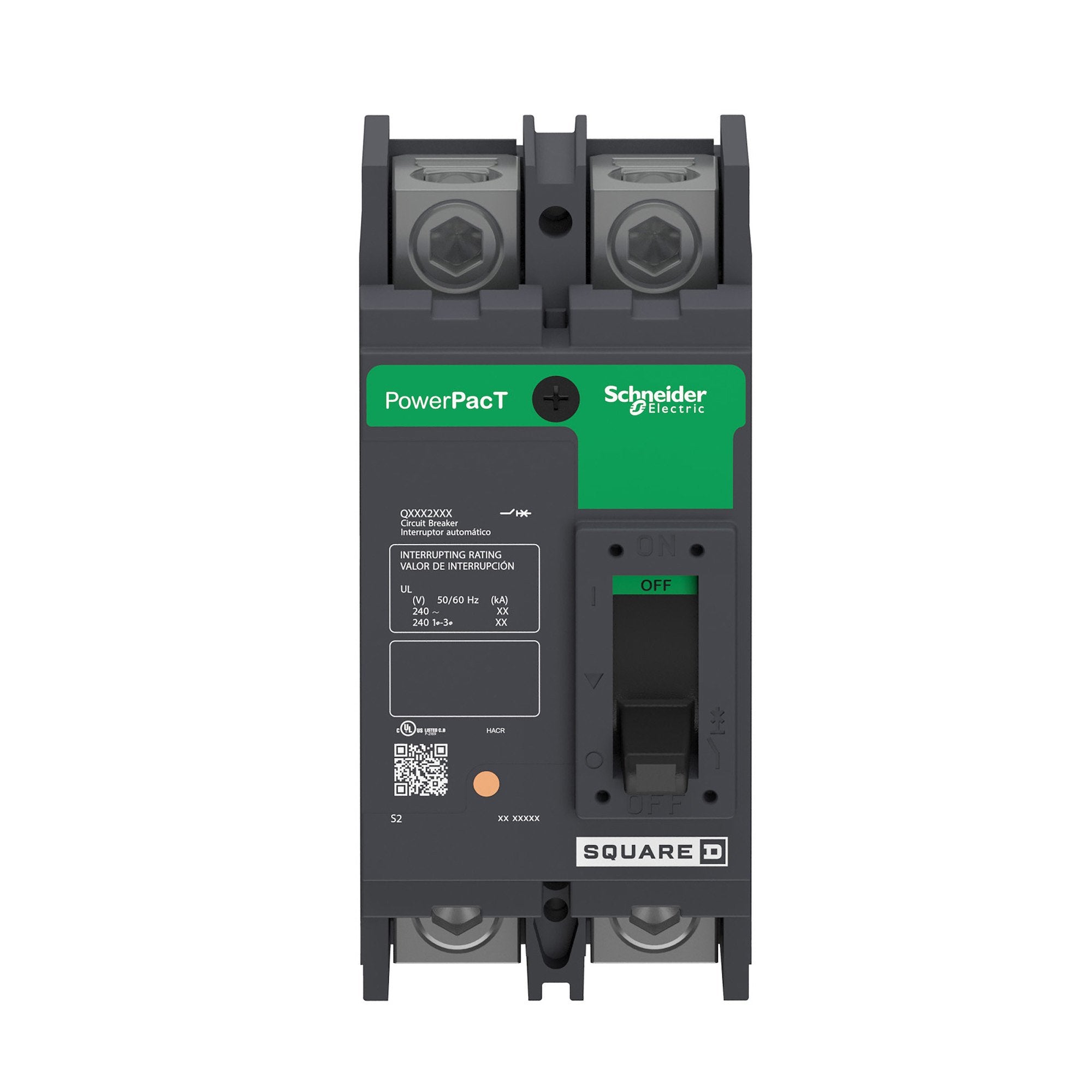

Square D QBP22100TM 100 Amp 240 Volt Molded Case Circuit Breaker

Product Description

The Square D QBP22100TM is a 100 Amp, 240 Volt molded case circuit breaker designed for overcurrent protection and switching on 240VAC systems. It provides thermal magnetic trip protection and is compliant with UL, CSA, and NOM standards.

• 100 Amp and 240 Volt operational rating
• Thermal magnetic trip functionality
• Integral push-to-trip button for manual operation

Product Highlights

The PowerPacT Q-Frame circuit breakers are available in 2 and 3-pole configurations. This unit is equipped with lugs on the load side and terminal nuts on the line side for easy installation. The interrupting rating is 10kA at 208Y/120VAC and 240VAC, making it suitable for a variety of applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QBP22100TM
• Amperage: 100 Amp
• Voltage: 240 Volt
• Number of Poles: 2 Pole
• Interrupt Rating: 10 kAIC
• Depth: 3.93 Inch
• Width: 3.00 Inch
• Height: 6.47 Inch
• Country of Origin: Mexico
• Warranty Length: 18 months
