Product Description

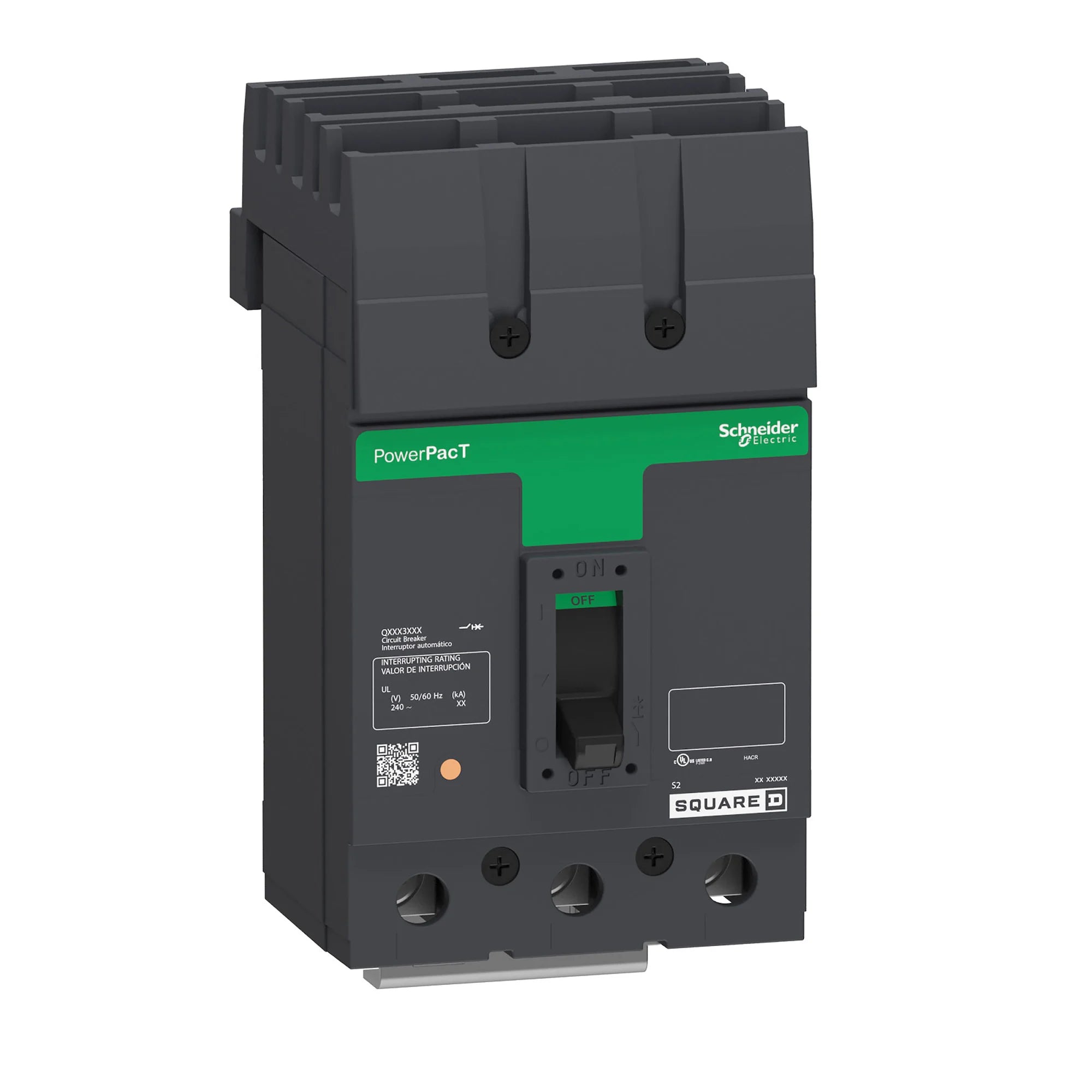

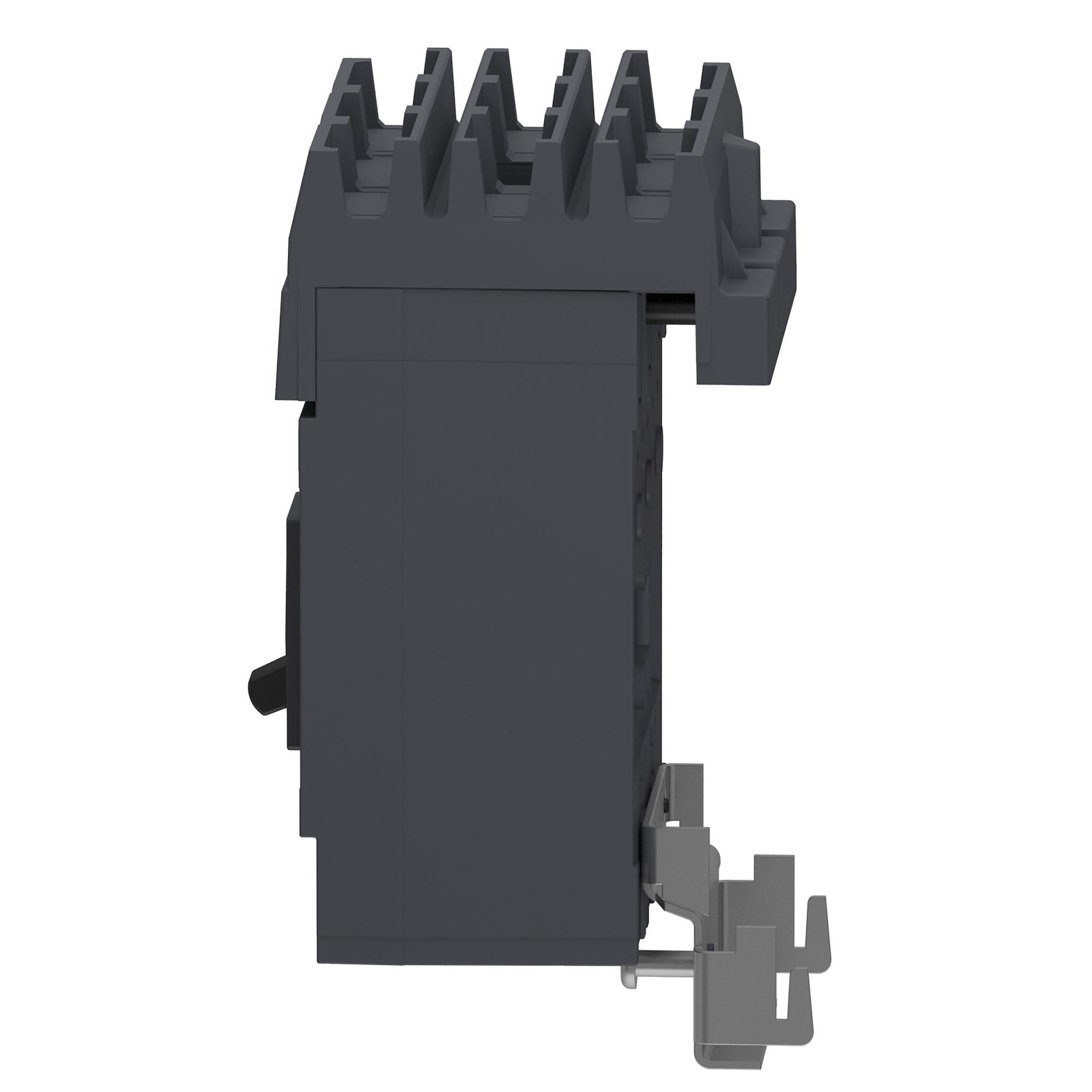

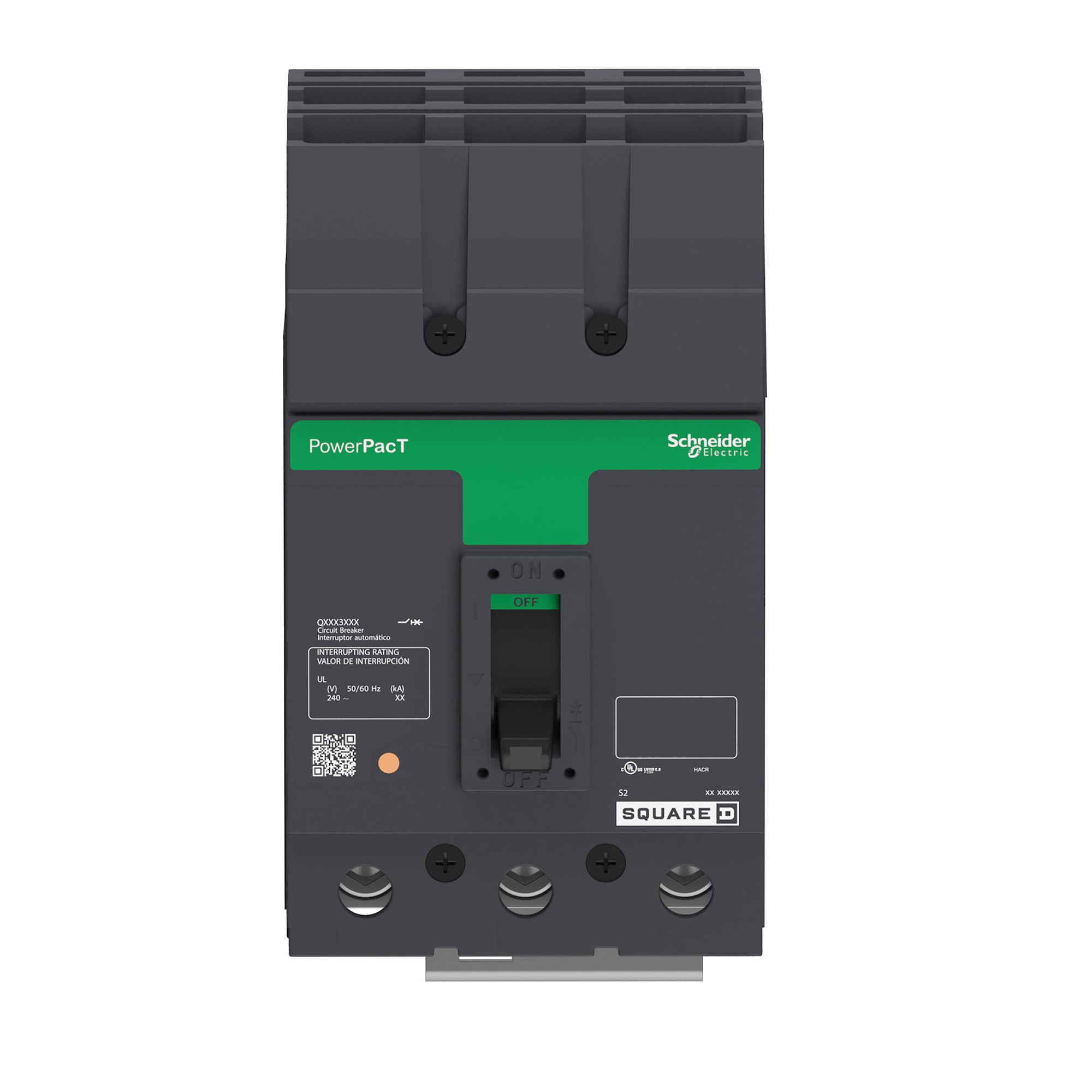

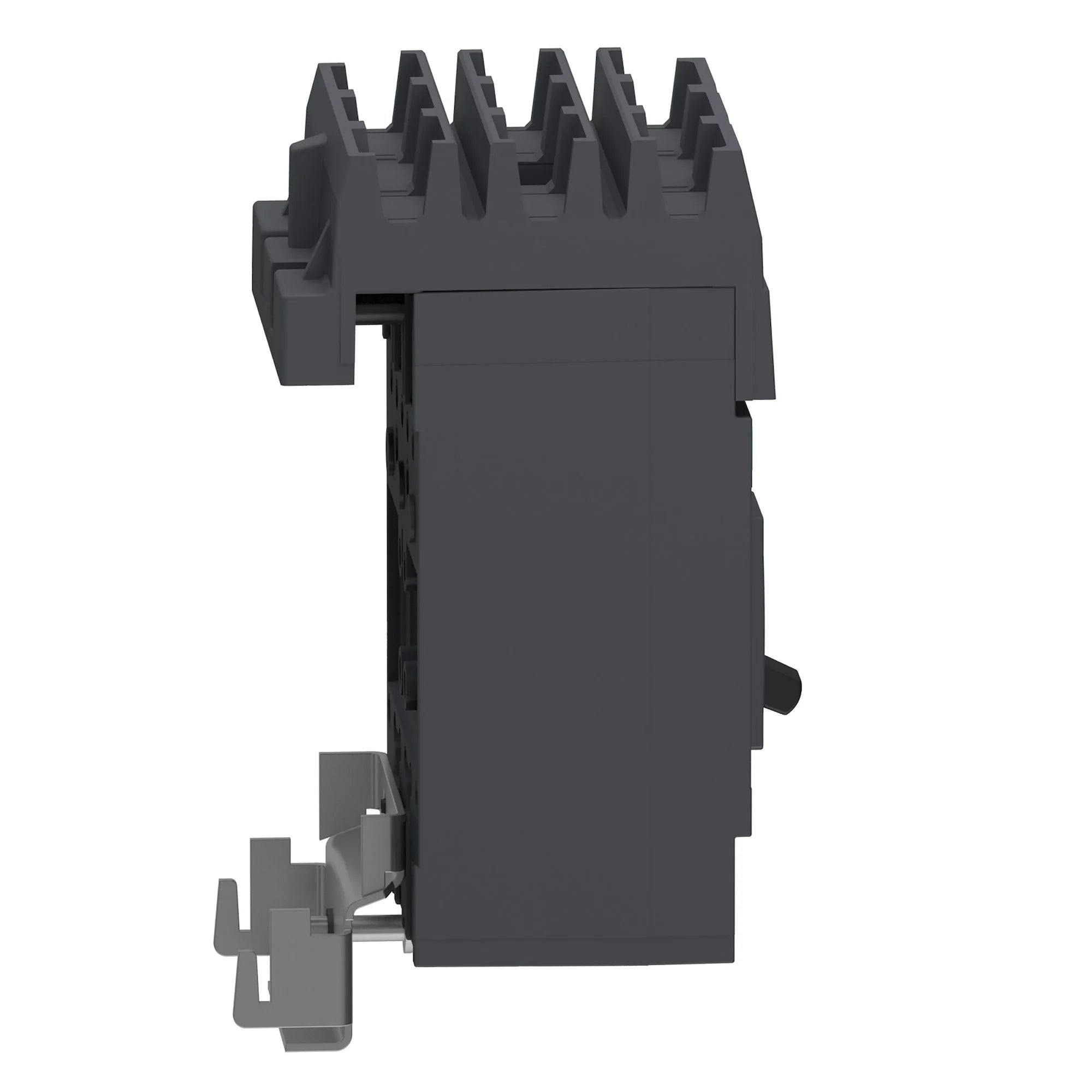

The Square D QBA32150 is a molded case circuit breaker designed for 240 Volt applications. This circuit breaker has a 150 Amp capacity and provides reliable overcurrent protection. It features thermal magnetic trip technology which allows for both overload and short circuit protection.
- Rated for 240VAC operational voltage
- 3-pole configuration with interrupting capacity of 10kA
- Integrated push-to-trip button for manual tripping
Product Highlights
This circuit breaker is suited for residential and commercial applications. It is compliant with UL, CSA, and NOM standards, ensuring safety and reliability.
Product Information
Standard Information
-
Brand: Square D
-
Manufacturer: Schneider Electric
Technical Specifications
-
Catalog Number: QBA32150
-
Voltage: 240 Volt
-
Amperage: 150 Amp
-
Width: 4.5 Inch
-
Height: 6.47 Inch
-
Depth: 3.93 Inch
-
Number of Poles: 3 Pole
-
Interrupt Rating: 10 kA
-
Country of Origin: Mexico
-
Operating Temperature: -13F to 158F
-
Warranty Length: 18 months
-
Applications: Provides overload and short-circuit protection
