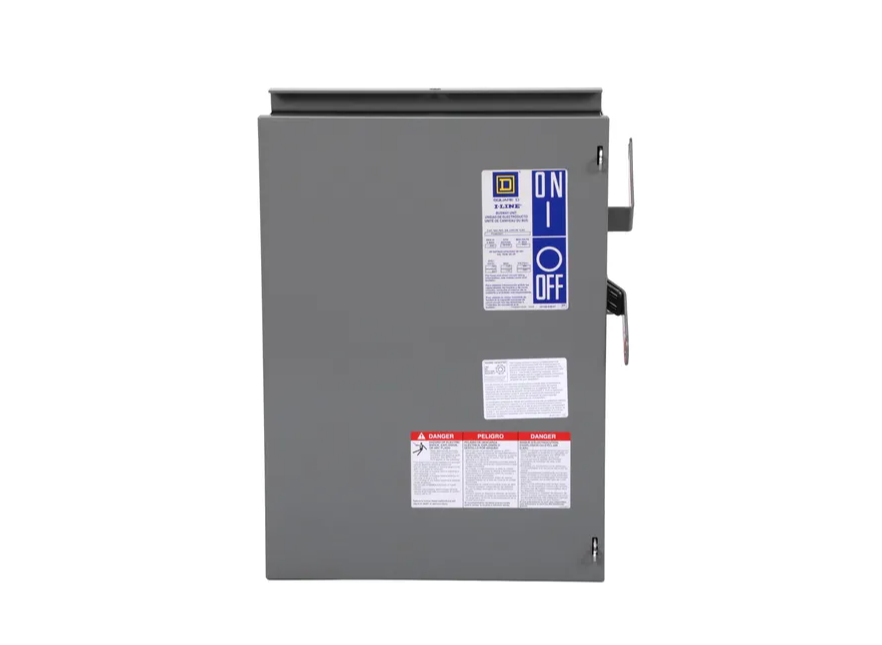

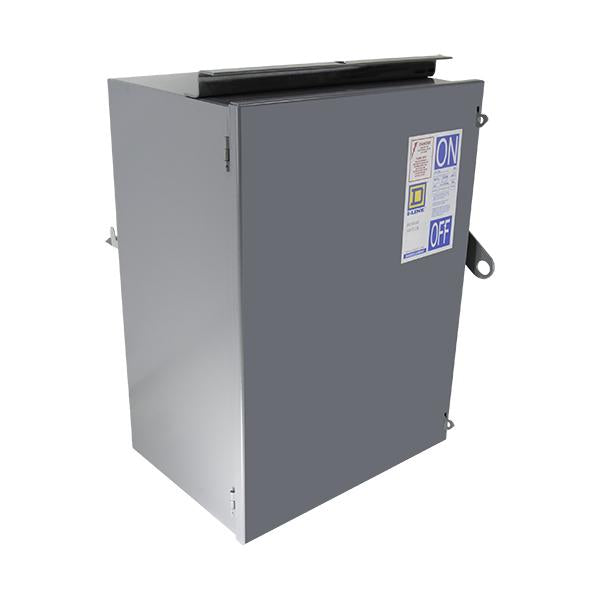

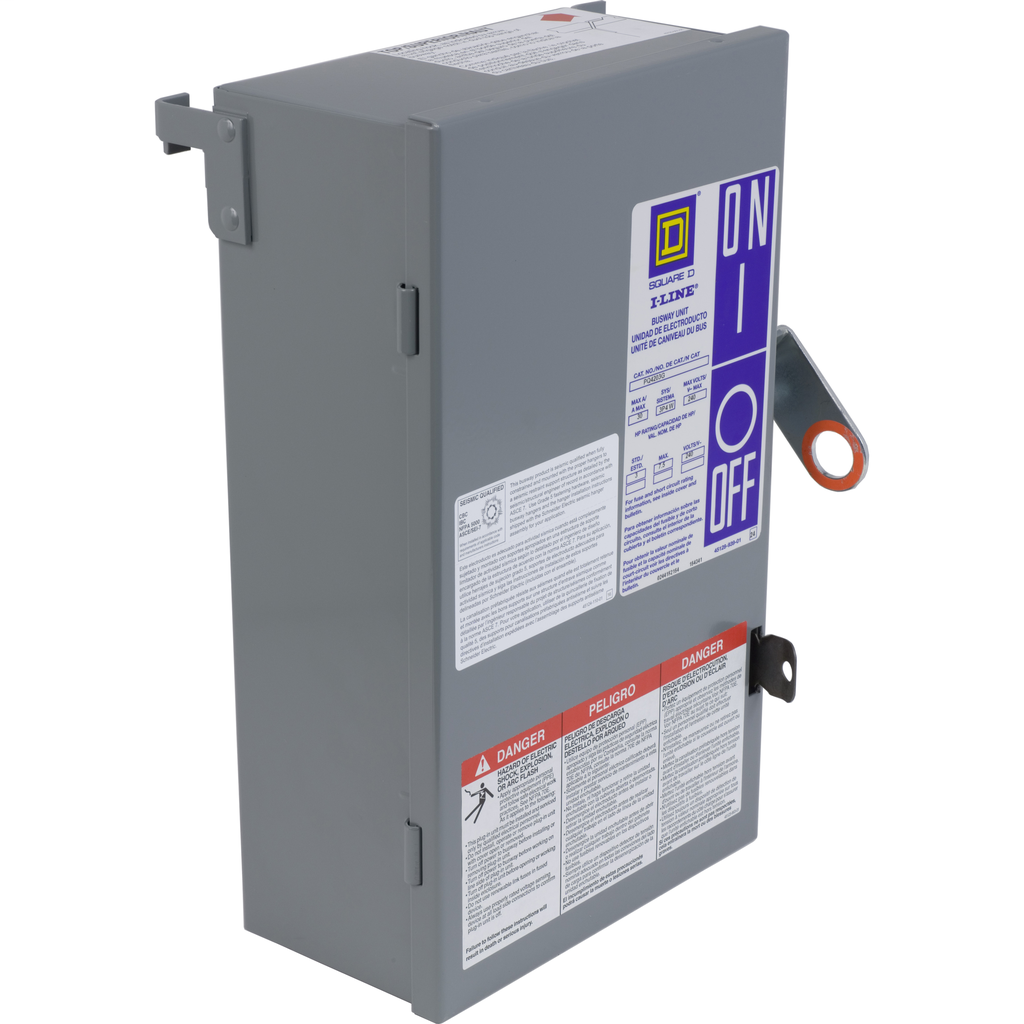

Square D PQ4620G Busway Fusible Plug-In Unit 200 Amp

Product Description

The Square D PQ4620G is designed for flexibility, ease of installation, and electrical efficiency in low power distribution for commercial and industrial applications. This 200 Amp, 600 VAC bus plug is complete with ground fusible and accepts Class H K R fuses. It is suitable for use with I-Line aluminum and copper busway systems.

• Electrical efficiency
• Ease of installation
• Maximum flexibility
• Accepts Class H K R fuses

Product Highlights

The Square D PQ4620G busway fusible plug-in unit offers a reliable solution for distributing power in commercial and industrial settings.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: PQ4620G
• Country of Origin: Mexico

Technical Specifications

• Type: Fusible
• Brand: Square D
• Pkg Qty: 1
• Voltage: 600 VAC
• Fuse Type: H
• Sub Brand: I-LINE II
• Product UPC: 78590130991
• 12-Digit UPC: 785901309918
• Certifications: CSA,UL
• Number of Poles: 4 Pole
• Series: PQ
• Amperage: 200 Ampere
• Phase: 3
• Mounting Type: Plug-On
• Mpn: PQ4620G
• Upc: 785901309918
• Gtin: 785901309918
• Max. Volts: 600
• Max. Amps: 200
• Wire: 4-wire
• bus duct style: plug-in
• Fuse/Breaker: fuses
• Ground Tab: gnd yes
• Product Type: Bus Plug
• Number of Phase: 3
• Voltage Rating: 600 VAC
• Amperage Rating: 200 Ampere
• Interrupting Rating: 200 Kiloampere at 480 VAC
• Mounting: Plug On
• Fuse Class: H K R
• Ground: Yes
• AIC: 200kA @ 480V
• Horsepower: 150 Hp Max
• Condition: New or Re-certified
