Square D NQ418L1 panelboard interior 100 amp

Product Description

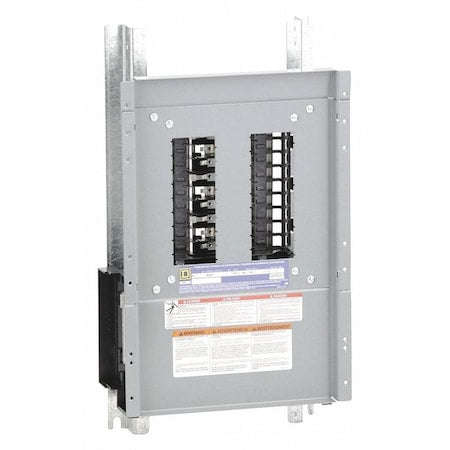

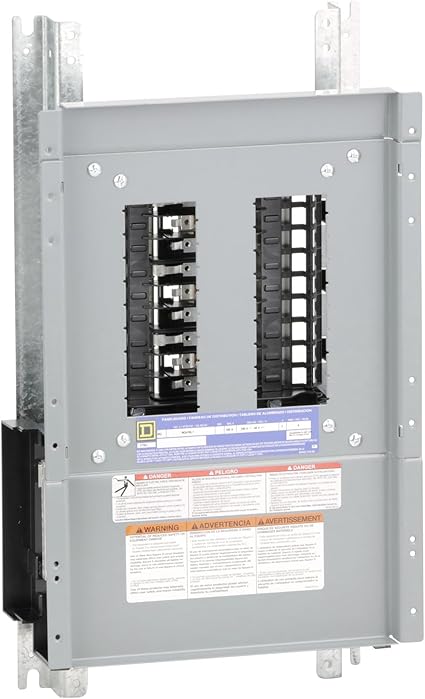

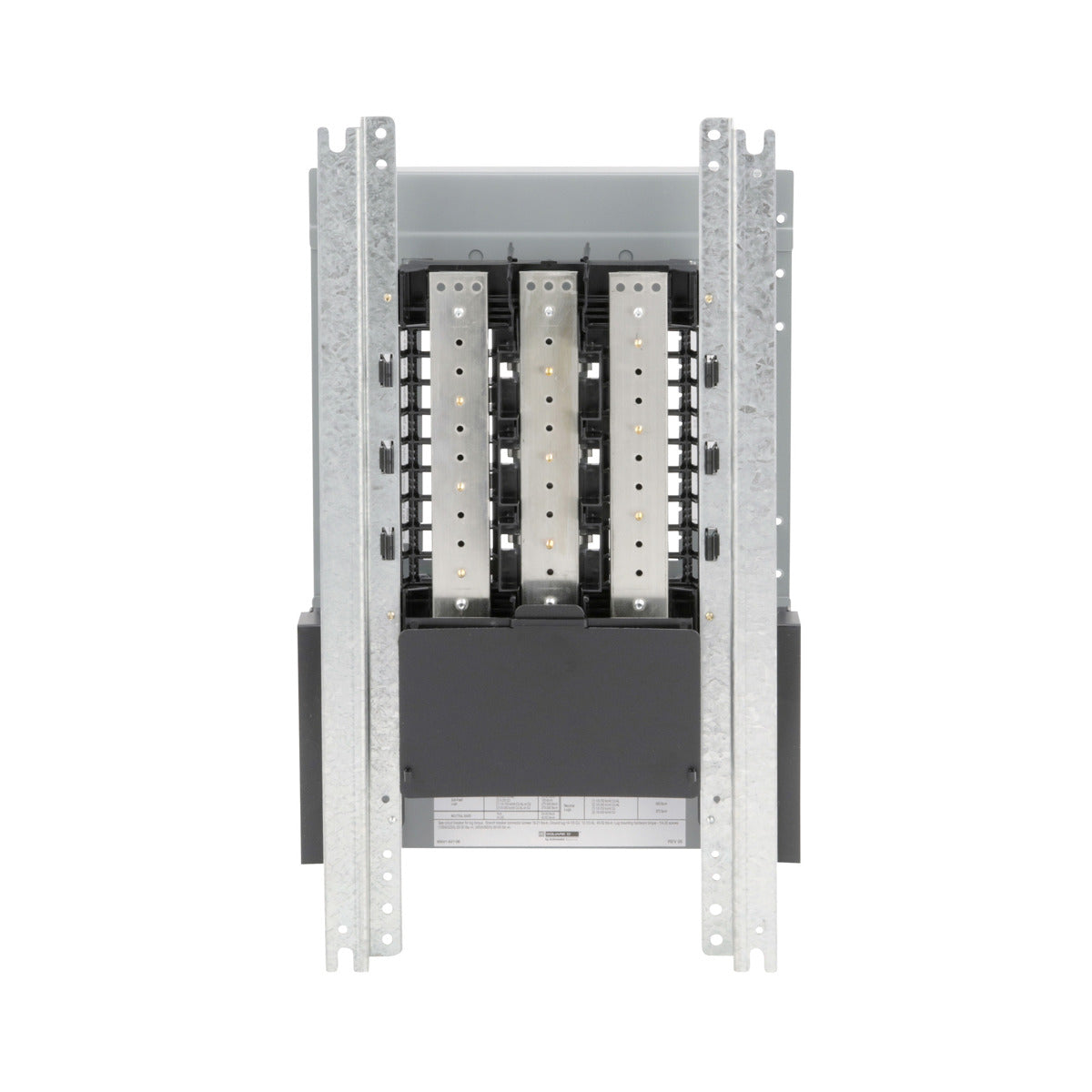

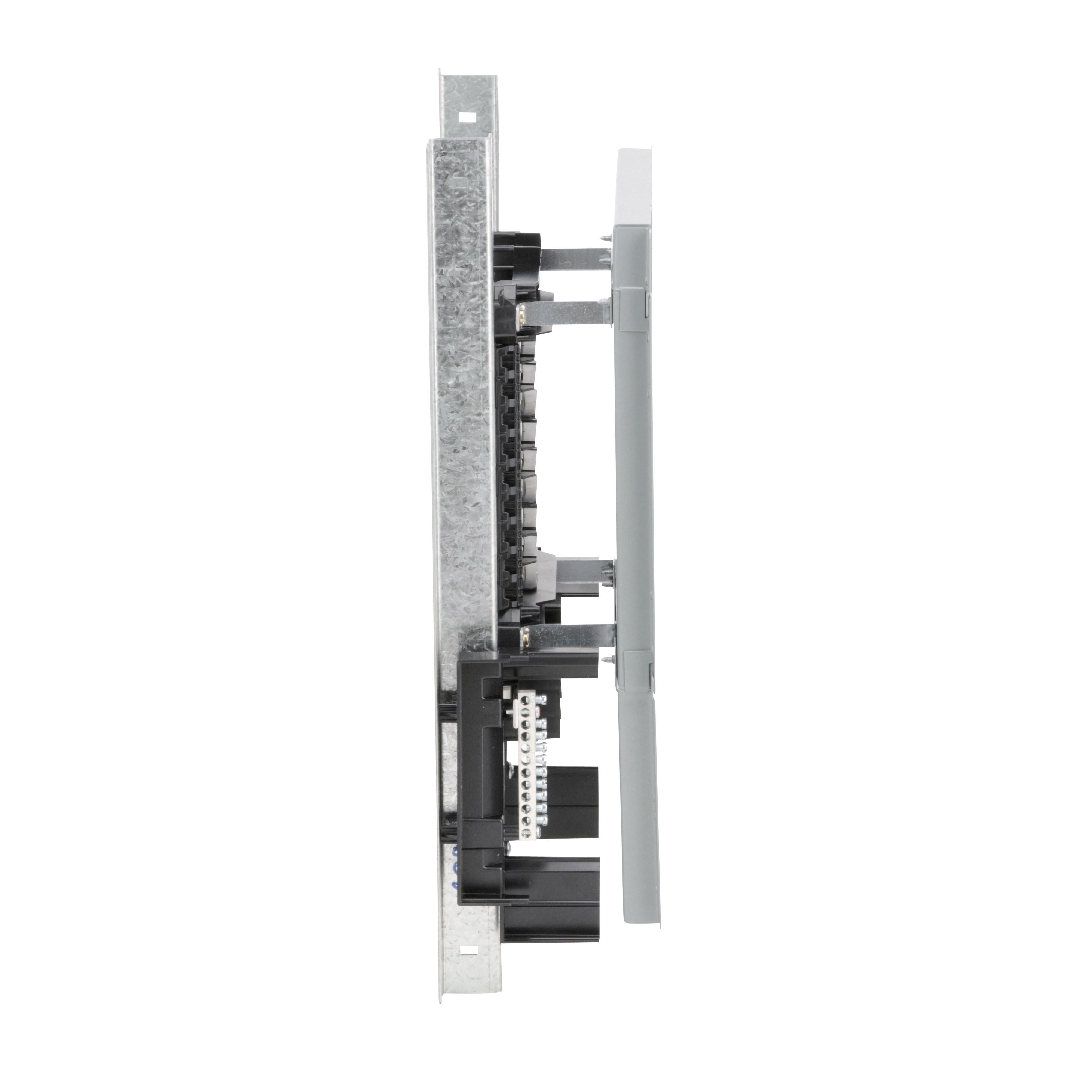

The Square D NQ418L1 panelboard interior is a versatile solution with a wide selection of circuit breakers and accessories. It is convertible from main lug to main breaker. The interior has a maximum voltage rating of 240 VAC and 48 VDC and is rated at 100 A three phase. It provides protection for commercial and industrial applications.

• Versatile panelboards
• Wide selection of circuit breakers and accessories
• Ready to install kits

Product Highlights

This panelboard interior features 200% rated neutrals for nonlinear loads and is field convertible to top or bottom feed.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: NQ418L1
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: NQ418L1
• Brand: Square D
• Manufacturer: Square-D / Schneider
• Type: Interiors;4-wire
• Width: 10.44 in
• Height: 26 Inch
• Voltage: 240 Volt
• Amperage: 100 Amp
• Material: Aluminum
• Standard: CSA,UL
• Sub Brand: NQ
• Applications: NQ PANELBOARDS
• Number of Phases: 3 Phase
• Country of Origin: Mexico
• Line Rated Current: 100 A
• Circuit Breaker Type: QHB,QOB,QOB-VH
• Panelboard Type: Panelboard Interior
• Phase: 3
• Number of Spaces: 18
• Bus Material: Aluminum
• Short Circuit Current Rating: 100000 RMS Symmetrical
• Rated Operational Voltage: 240 V AC;48 V DC
• Rated Interrupted Current - Me: 10 kA
• Wiring Configuration: 4-Wire
• Mounting: Can
• Volts DC: 48
• Volts AC: 240
• Circuits: 18
