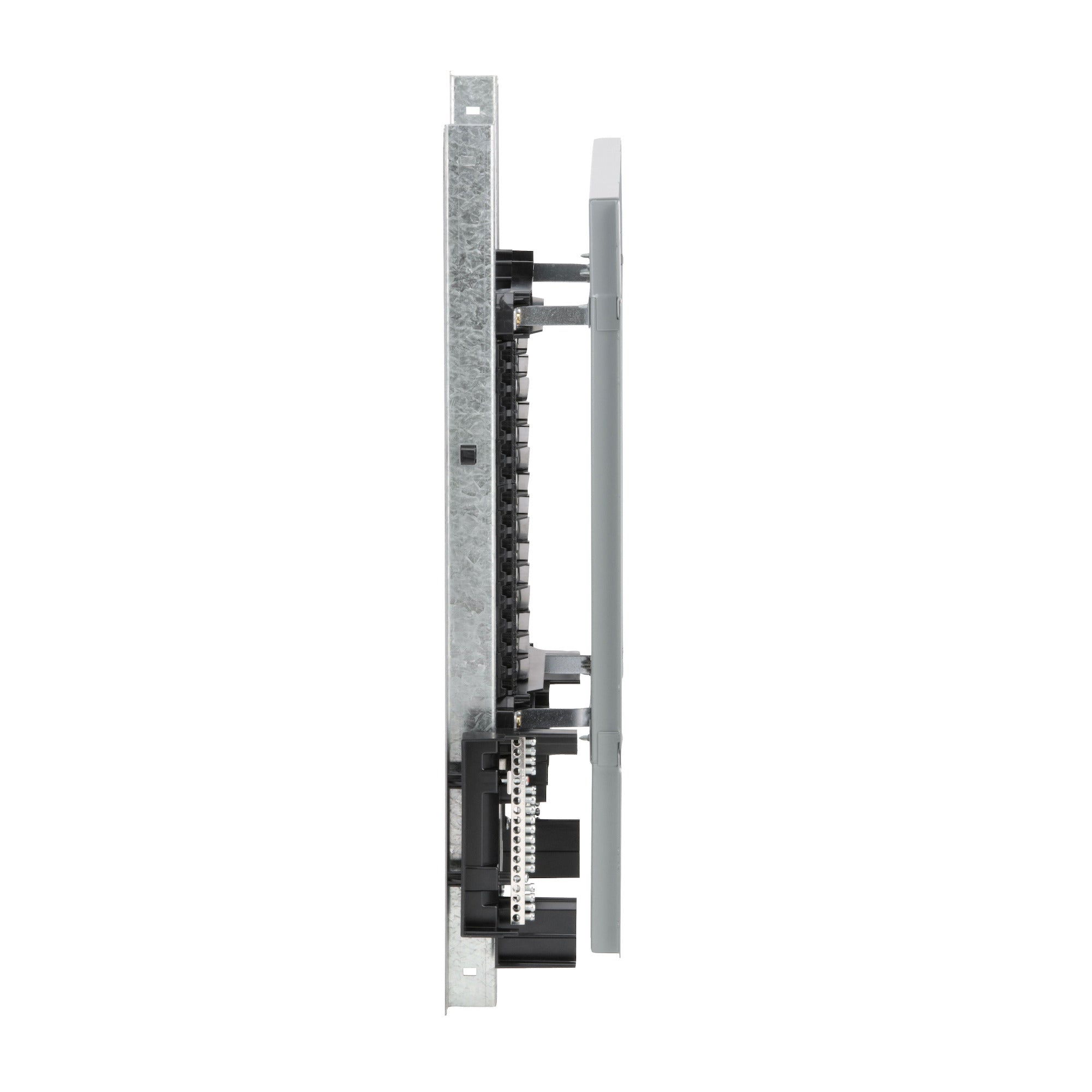

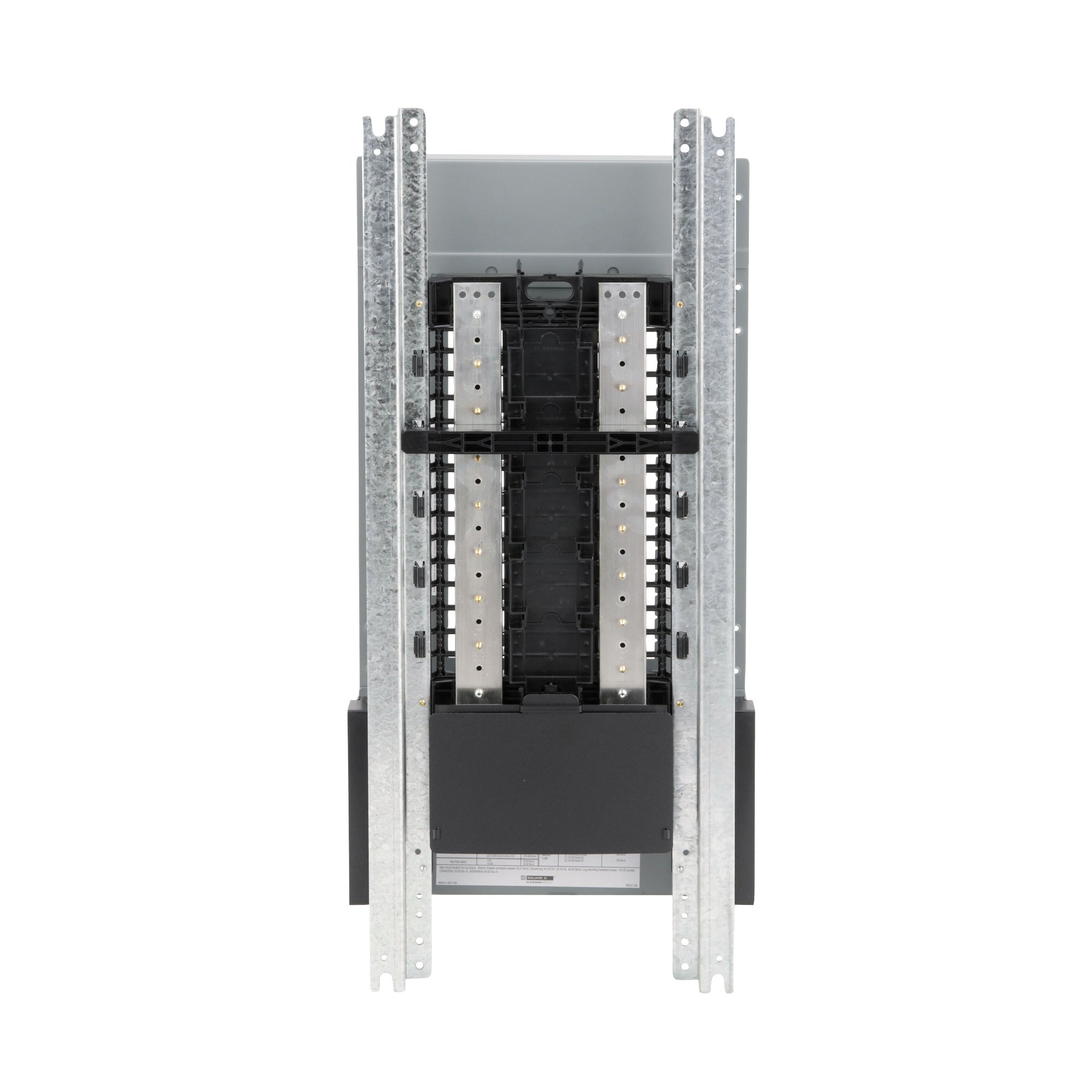

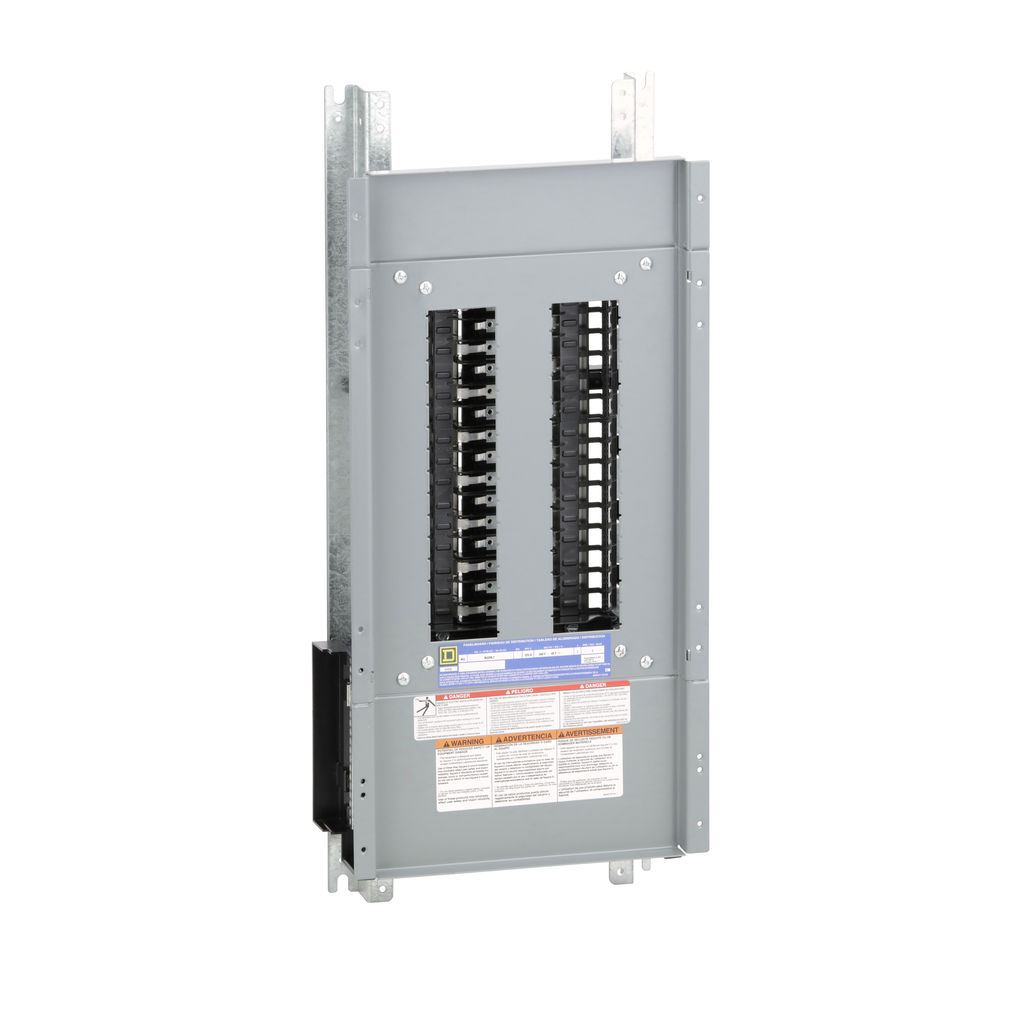

Square D NQ30L2 225 Amp 240 VAC Panelboard Interior

Product Description

The Square D NQ30L2 is a robust panelboard interior that operates at 240 VAC and 48 VDC with a rating of 225 Amps. This panelboard supports a three-wire system with thirty circuits and features a convertible design from main lug to main breaker. The interior houses an aluminum bus bar and can handle non-linear loads with a 200% rated neutral. It is designed for compatibility with QOB, QOBVH, and QHB branch circuit breakers.

• Rated for a maximum voltage of 240 VAC and 48 VDC.
• Single-phase operation with a 225 Amp rating.
• UL listed and CSA certified for safety.

Product Highlights

This panelboard interior is suitable for various applications including commercial buildings, industrial settings, offices, and stadiums. It can be field-converted for top or bottom feeds and has an interrupt current rating of up to 65 kA.

Product Information

Standard Information

• Catalog Number: NQ30L2
• Manufacturer: Schneider Electric

Technical Specifications

• Brand: Square D
• Phase: 1
• Material: Aluminum
• Country of Origin: Mexico
• Warranty: 18 months
• Height: 27 inches
• Width: 10.44 inches
