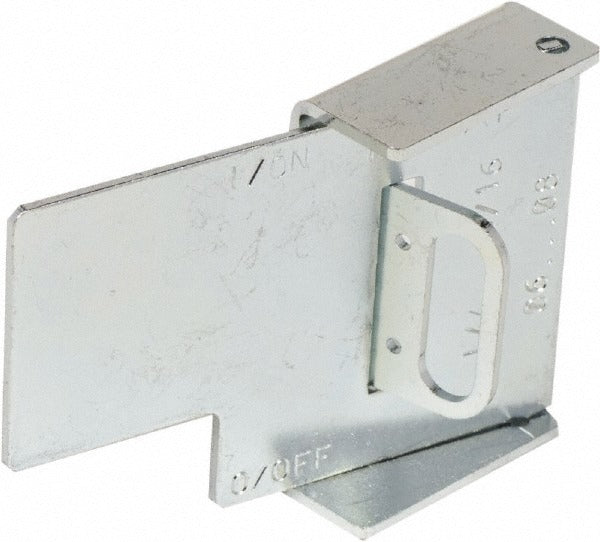

Square D NJPAF Circuit Breaker Padlock Device

Product Description

The SQUARE D NJPAF is a padlock device accessory designed to secure a circuit breaker in the open or locked-off position. It attaches to the breaker handle and accepts a standard padlock shackle, providing a physical lockout point for energy isolation procedures. Electricians and maintenance technicians install this device as part of lockout/tagout (LOTO) compliance on electrical systems. It is a compact, purpose-built accessory that works with specific Square D breaker frames and requires no tools to install on the breaker itself.

This padlock device is intended for use with PowerPact L-Frame circuit breakers in commercial and industrial electrical panel applications. It is a common addition to breaker assemblies in facilities where OSHA lockout/tagout procedures are enforced, allowing personnel to physically prevent re-energization during maintenance or service work. The device is packaged individually and is well suited for both new installations and retrofit applications on existing PowerPact L-Frame breakers.

Key Features

• Provides a dedicated lockout point on the circuit breaker handle for LOTO compliance
• Compatible with PowerPact L-Frame circuit breakers
• Compact form factor at 0.8 inches length, 5 inches width, and 8 inches height
• Lightweight accessory at 0.5 pounds
• Sold individually — one padlock device per package

Compatibility

Designed for use with Square D PowerPact L-Frame circuit breakers.

Installation Notes

Installation is performed by a qualified electrician in accordance with NFPA 70 (NEC) and applicable OSHA lockout/tagout regulations. Before attaching or removing the padlock device, de-energize the circuit and follow all site-specific LOTO procedures. Do not use this device as a substitute for a proper LOTO program. A padlock is not included and must be sourced separately.
